S11b
F1-F3
Zekering 4 A
G3
Alternateur
Kx
Schakelaar generator klaar
(door spanningsvrij contact, 15 sec. vertraagd)
N12
Automatische spanningsregelaar
N13
Aardlekrelais
Q1
Hoofdvermogenschakelaar
Q2
Vermogenschakelaar
2954 2440 13

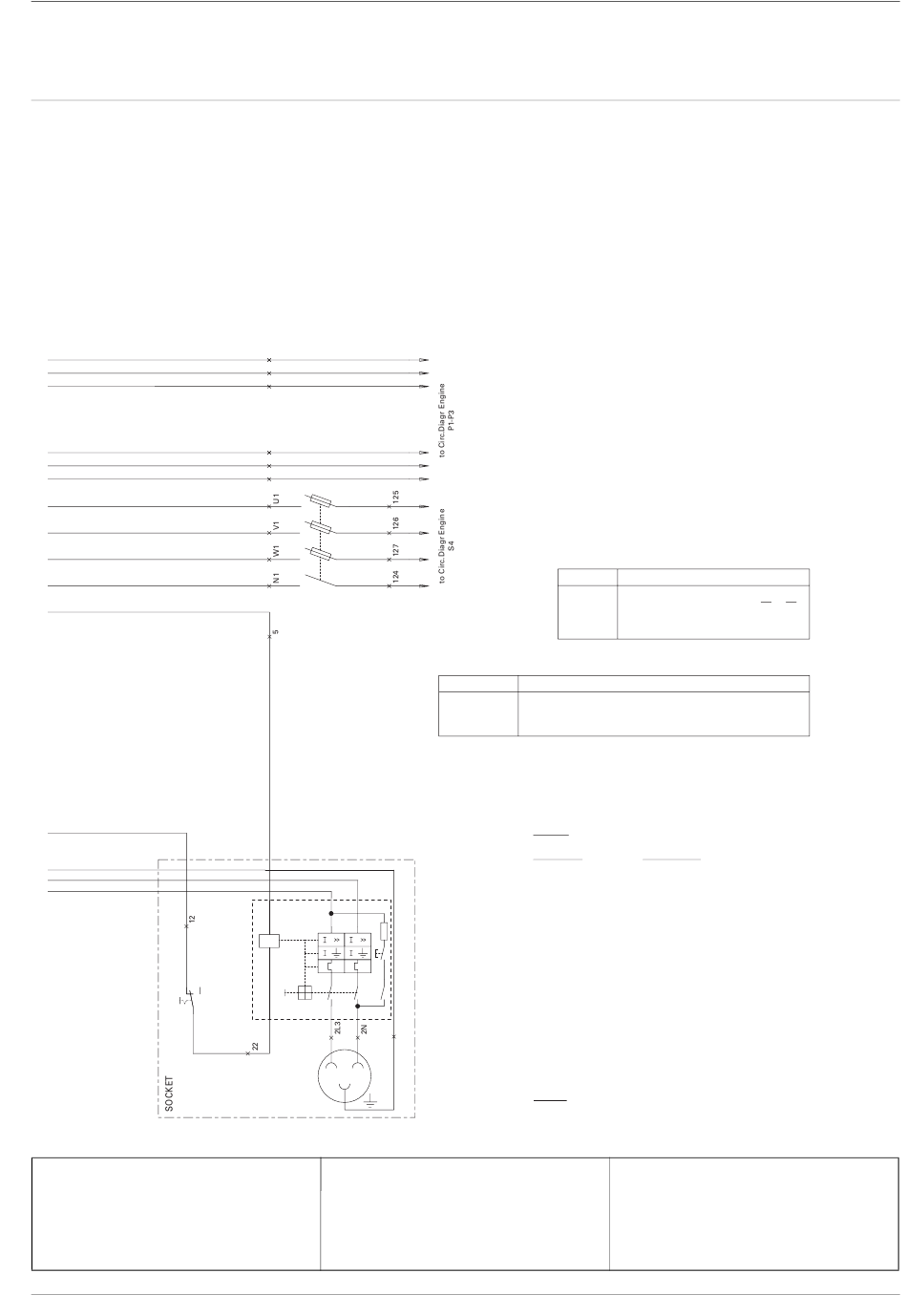

ELEKTRISCHE SCHEMA'S
141
a8
142
a8
143
a8
153
a8
152
a8
151
a8
F1
1
2
a0
a0
F2
3
4
a0
a0
F3
5
6
a0
a0
a0
7
8
a6
a6
a3
Q2
U<
30mA
16A
c0
c6
c54
16A
a3
L3
N
X2
(O)
R5
Verwarmer koelvloeistof
R11
Spanningsinstelpotentiometer
S2b
Noodstop
(S2a zie Motorcircuit)
S11 a,b
Keuzeschakelaar 50/60 Hz
(S11c zie Motorcircuit)
S13
Blokkeerschakelaar aardrelais
Sx
Start/Stop vanop afstand
QAS250
QAS325
Breaker Set.
Q1
Io
QAS250
360A
1,00xIn
QAS325
470A
0,80xIn
Legend
Wire size :
aa = 0.5 mm²
a =
1 mm²
b = 1.5 mm²
c = 2.5 mm²
d =
4 mm²
e =
6 mm²
f = 10 mm²
g = 16 mm²
h = 25 mm²
i
= 35 mm²
j
= 50 mm²
k = 70 mm²
l
= 95 mm²
lx = 95 mm² EPR-CSP to BS6195 4C
bx = 1.5 mm² NSGAFOeU
Note 1: Costumer connection (X25) only for Qc1002
For X25 with Qc2002, see circuit diagram
engine of Qc2002 controller.
Q1
T1-3
P1-3
Wire size
X
Z
360A
600/5A
0-600A
2x l
l
470A
600/5A
0-600A
2x lx
l
I1
I2=I3
T1
T2
I²t
0,90xIo
4
10
0,1
OFF
0,95xIo
4
10
0,1
OFF
Colour code :
0 = black
1 = brown
2 = red
3 = orange
4 = yellow
5 = green
6 = blue
7 = purple
8 = grey
9 = white
54= green/yellow
T1-T3
Stroomtransformator
T13
Ringkerntransformator voor aardingsrelais
U1
Statische batterijconditioner
X1
Klemmenbord
X2
Stopcontact
X10
Connector, 15 stiften
X25
Klemmenstrook
(O)
Optionele uitrusting
