Detail A
4th hole from end roof carrier
17th hole from
end roof carrier

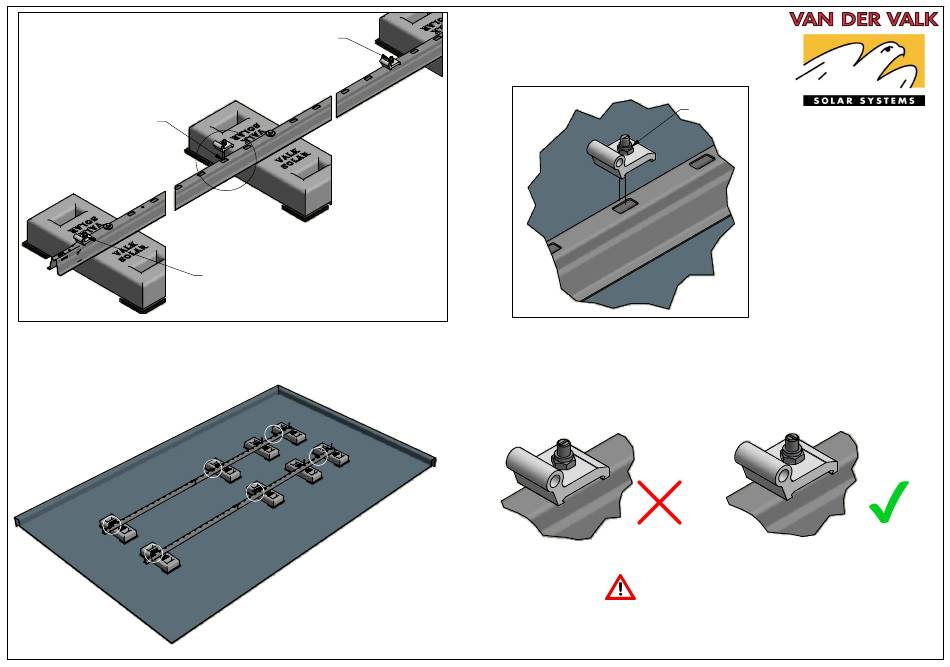

Mount the connector pieces to the roof carriers. Make sure they are placed as shown
in the drawing.
A
A
A
B
2nd hole
A
A
A
Detail A
15 Nm
The groove on the bolt corresponds with
the orientation of the bolt head!
02
