ONDERHOUD
DRAINING THE BOILER
Essential recommendations for safety
•
Before draining the DHW tank, drain the heating (primary) circuit or bring its
pressure to 0 bar.
•
Water flowing out of the drain valve may
be extremely hot and could cause severe
scalding. Keep people away from the hot
water discharge.
Set-up conditions
•
Boiler switched off using the ON/OFF master
switch
•
External power supply isolated
•
Gas supply closed

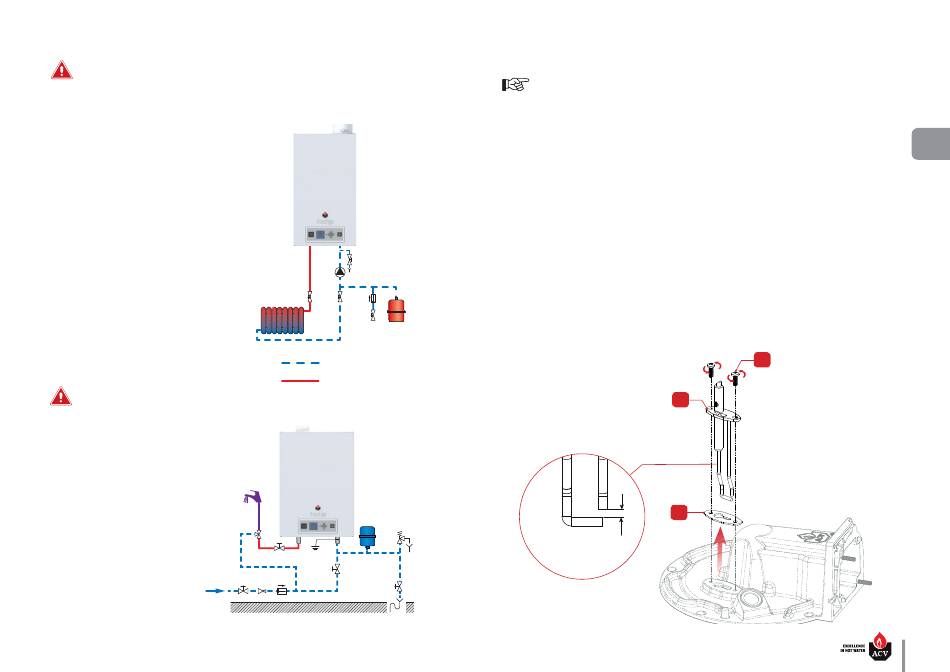

Heating circuit draining procedure
1.
Close the isolating valves (1).
2.
Connect the drain valve (2) to the sewer with a
hose.
3.
Open the drain valve (2) to empty the heating cir-
cuit of the boiler.
4.
Open the circuit air vent (3) to accelerate the
draining process.
5.
Close the drain valve (2) and the air vent (3) once
the heating circuit of the boiler is empty.
DHW circuit draining procedure
Before draining the DHW tank, make sure that the heating (primary) circuit pressure
is null.
1.
Open fully a draw-off tap (3) for
about 60 minutes to make sure
that the DHW tank has cooled
down.
2.
Close the isolating valves (1).
3.
Connect the drain valve (2) to
the sewer with a hose.
4.
Open the drain valve (2) and
drain the DHW tank water to the
sewer.
5.
Open the draw-off tap (3) to
accelerate the draining process.
If it is located lower than the tank
connection, open a draw-off tap
located higher in the system.
6.
Close the drain valve (2) and the
draw-off tap (3) once the DHW
tank of the boiler is empty.
3
2
1
1
Cold water
Hot water
3
1
1
2
Prestige 24-32 Solo/Excellence : A1004335 - 664Y6700 • D
DEMONTAGE, CONTROLE EN TERUGPLAATSING VAN DE ELEKTRODE VAN
DE BRANDER
Belangrijke instructie voor een correcte werking van het toestel
•
De elektrode demonteren als er ontstekingsproblemen zijn.
Voorwaarden
•
Ketel uitgeschakeld
•
Stroomtoevoer onderbroken
•
Gastoevoer onderbroken
•
Frontpaneel gedemonteerd, zie "Demontage en terugplaatsing van het voorpaneel" op pag. 25
Demontageprocedure
1.
Ontkoppel de aardingskabel van de elektrode.
2.
Ontkoppel de ontstekingskabel van de elektriciteitsbord.
3.
Verwijder twee schroeven (1) en houd ze bij om het zijpaneel opnieuw te monteren.
4.
Neem de elektrode uit (2) en de dichting (3) uit.
5.
Controleer of de uiteinden van de elektrodedraden uitgelijnd zijn en of hun tussenafstand overeen-
stemt met de waarden in het onderstaande schema.
Terugplaatsingsprocedure
1.
Vervang de dichting (3).
2.
Plaats de elektrode (2) en draai de twee schroeven (1) vast, met het correcte moment, zie "Aan-
draaimomenten voor de montage" op pag. 38.
Taken achteraf
1.
Sluit de aarding opnieuw aan de
elektrode.
2.
Sluit de ontstekingskabel opnieuw
2
aan elektriciteitsbord.
3
Min. 3 mm
Max. 4 mm
