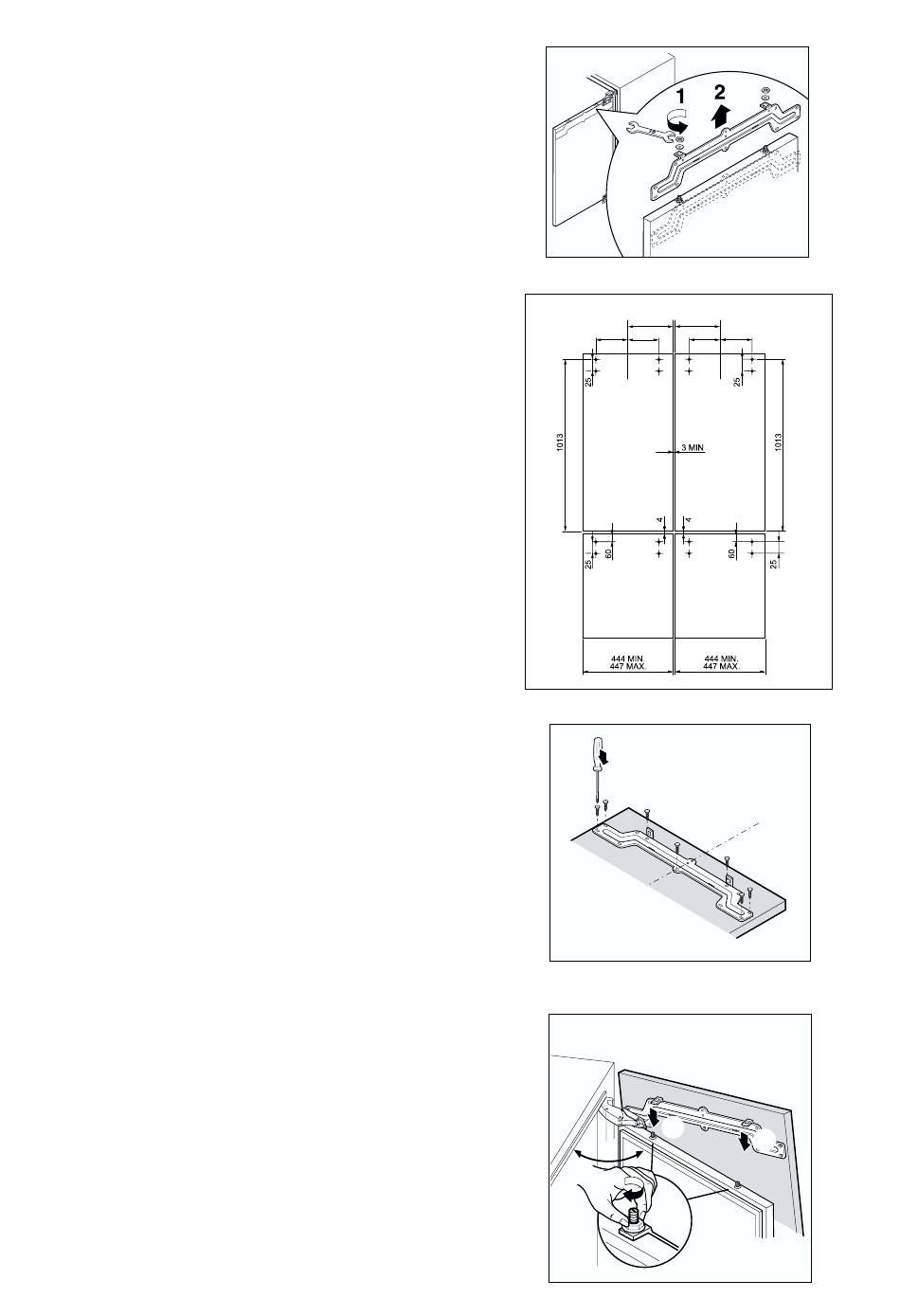

Fitting the door panels
•
Open a door a remove the bracket cover. Undo
the nuts with washers and remove the bracket
from the door.
•
Drill the small doors as shown in the figure.
•
Fix the bracket to the door with the screws
contained in the bag.
•
Refit the bracket on the adjustment screws and
screw the nuts with washers without tightening
them down
46
214
214
193
193
193
193
TOP
LEFT-HAND
FRONT PANEL
TOP
RIGHT-HAND
FRONT PANEL
BOTTOM
BOTTOM
RIGHT-HAND
LEFT-HAND
FRONT PANEL
FRONT PANEL
1
2
90°
3
