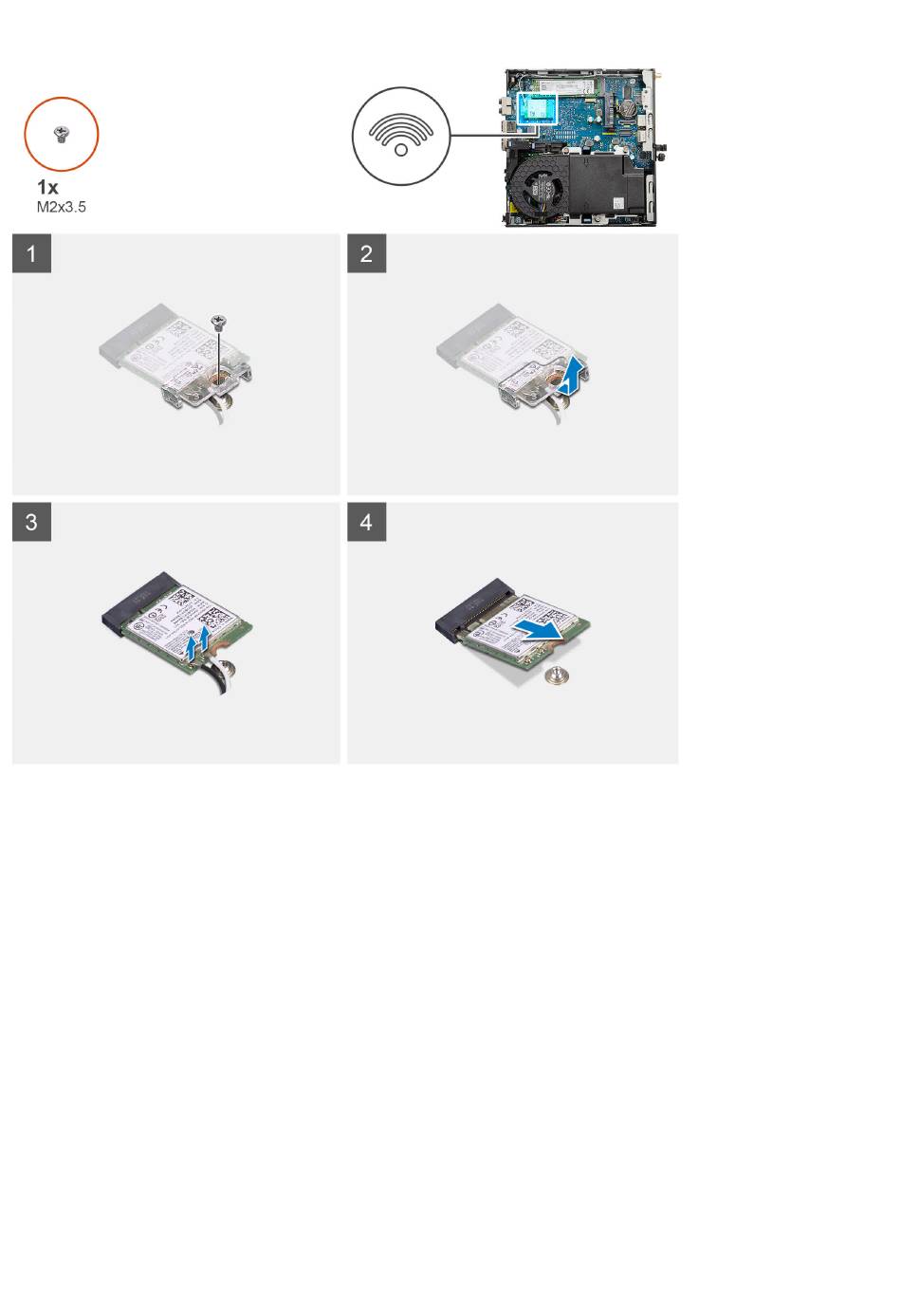

Steps
1. Remove the (M2x3.5) screw that secures the WLAN card bracket to the system board.
2. Slide and lift the WLAN card bracket away from the WLAN card.
3. Disconnect the antenna cables from the WLAN card.
4. Slide and remove the WLAN card from the connector on the system board.
Installing the WLAN card
Prerequisites
Als u een component vervangt, dient u het bestaande component te verwijderen alvorens de installatieprocedure uit te voeren.
About this task
The following image indicates the location of the wireless card and provides a visual representation of the installation procedure.
30
Demonteren en hermonteren
