INSTALLATION
1

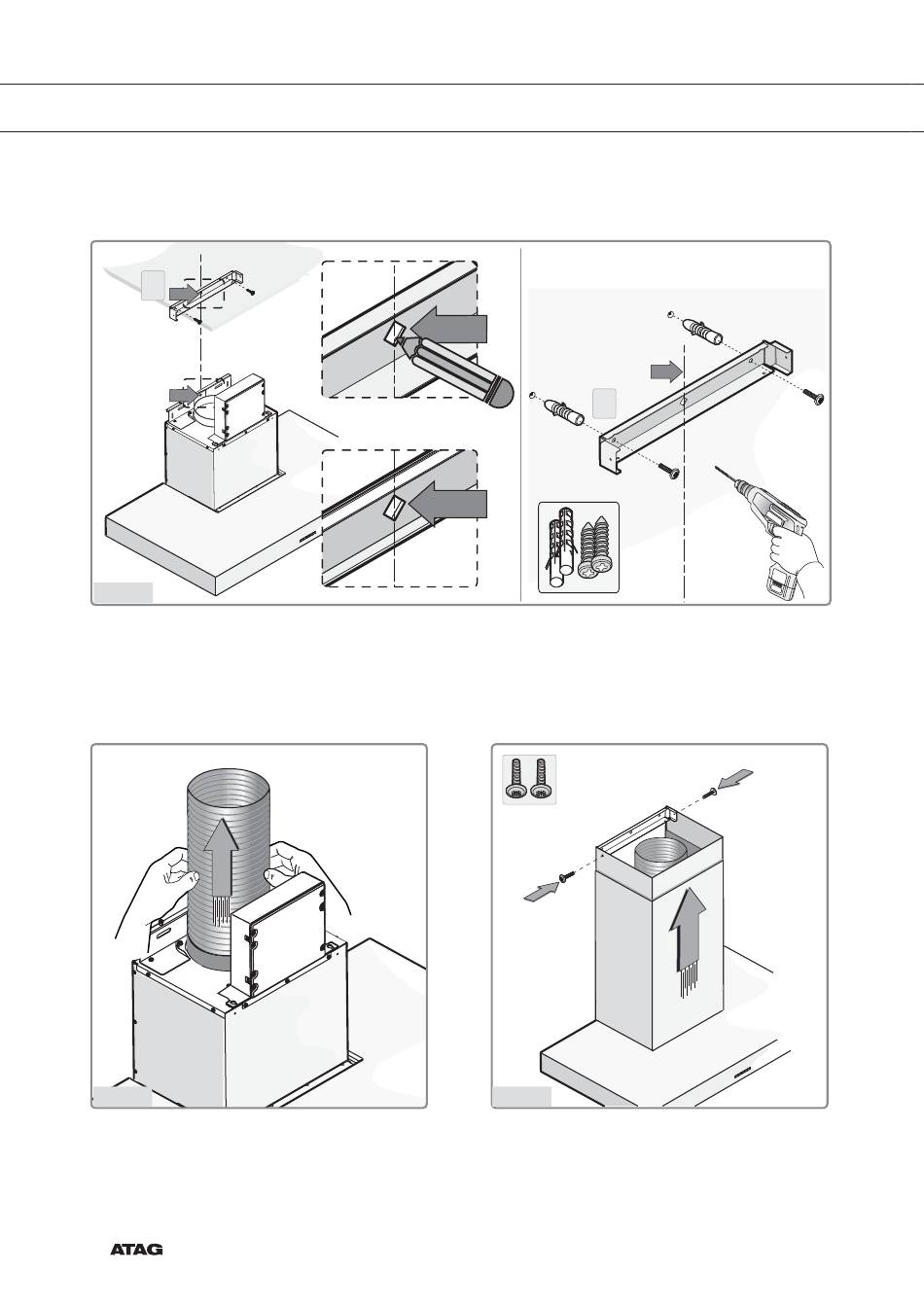

Fig.10
- Position the bracket with reference to the measurements in fi gure 1 and fasten it in place with the
screws and dowels provided (Fig.10).
Fig.11
- Connect the fl ange to the air evacuation hole
with a fl exible pipe (Fig.11).
GB 26
2
Fig.12
- Insert the top decorative chimney in the
bottom decorative chimney and place them on
the body of the hood. Slide the top decorative
chimney as far as the bracket and fasten it with
the two screws (Fig.12).
