ONDERDELENTEKENING

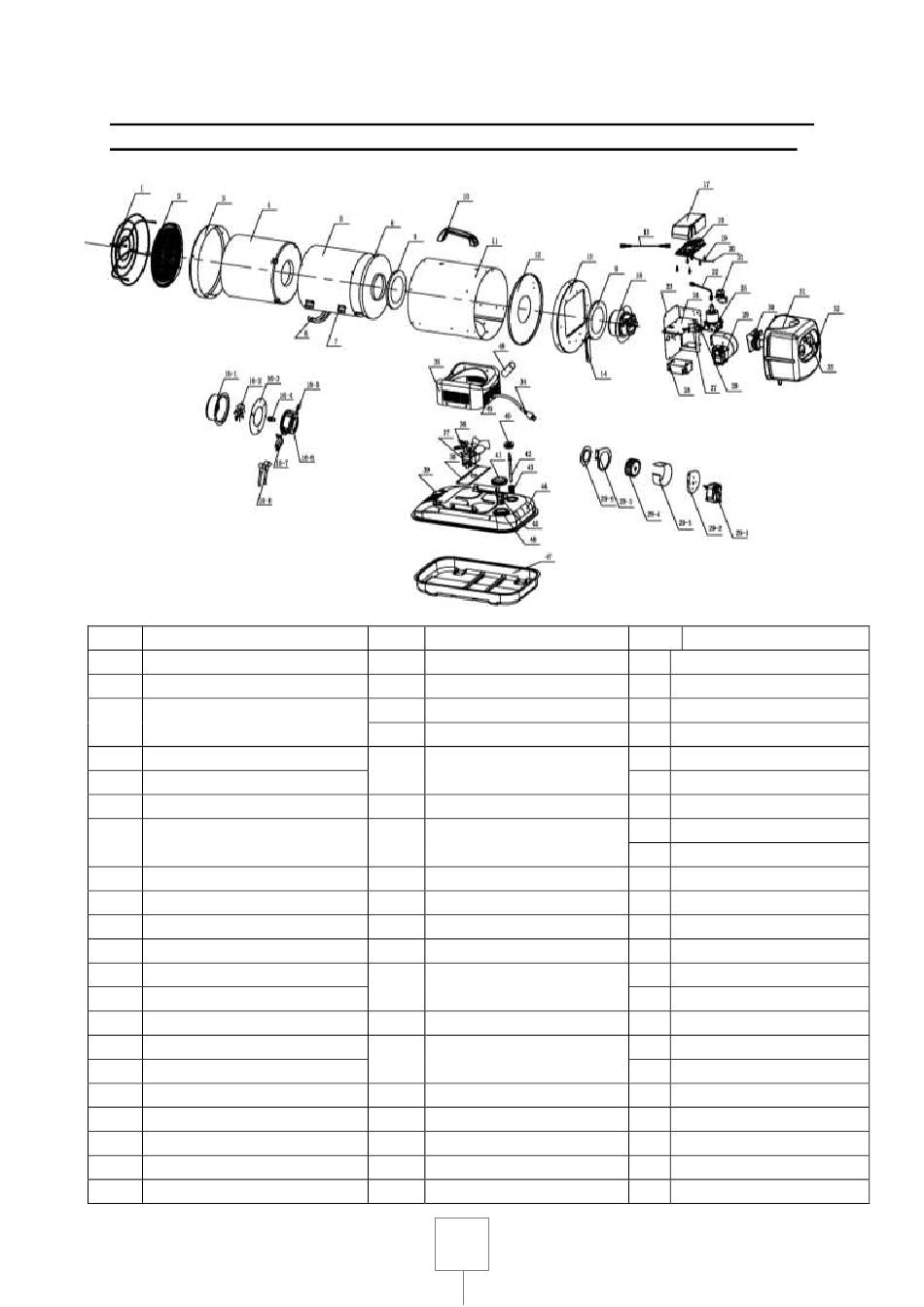

DRAWING PART BREAKDOWN / SCHÉMA PARTIE RÉPARTITION
Grill
2
Radiation disk
3
Grill fixed ring
5
Insulating chamber
6
Wind shield
7
Insulating chamber bracket
9
Insulating
10
Handle
11
Drum
12
Insulating plate
13
Back cover plate
14
Oil pipe cover
15
Internal wire group
16
Flame plate components
16-1
Flame plate
16-2
Flame disk
16-3
Flame plate disk board
16-4
Nozzle
16-5
Flame plate oil connection
16-6
Burner
/
TEILZEICHNUNG
16-7
Bipolar ignition needle
16-8
Ignition cable
17
Controller cover
18
Main control panel
19
Wiring board fixed pin
21
Anti-topple switch
23
Element fixed board
24
Controller fixed board
25
Electromagnetic pump
26
Ignition transformer
28
Electric eye wire
29-1
Oxygen supply motor
29-2
Left side panel
29-3
Coaming
29-4
Rotor element
29-5
Right side panel
46
/
EXPLODED
29-6 Top panel
30
Operating display board
31
Plastic back cover
32
Power switch
33
Display cover
34
Supporting pedestal
35
Cable
36
Fan blade
37
Cooling motor
38
Motor holder
39
Fuel gauge
40
Oil outlet plug
41
Fuel tank cap element
42
Plastic pipe
43
Filter element
44
Upper fuel tank
45
Tank filter
46
Filter screen
47
Lower fuel tank
48
Conduit
49
Insulating busting
