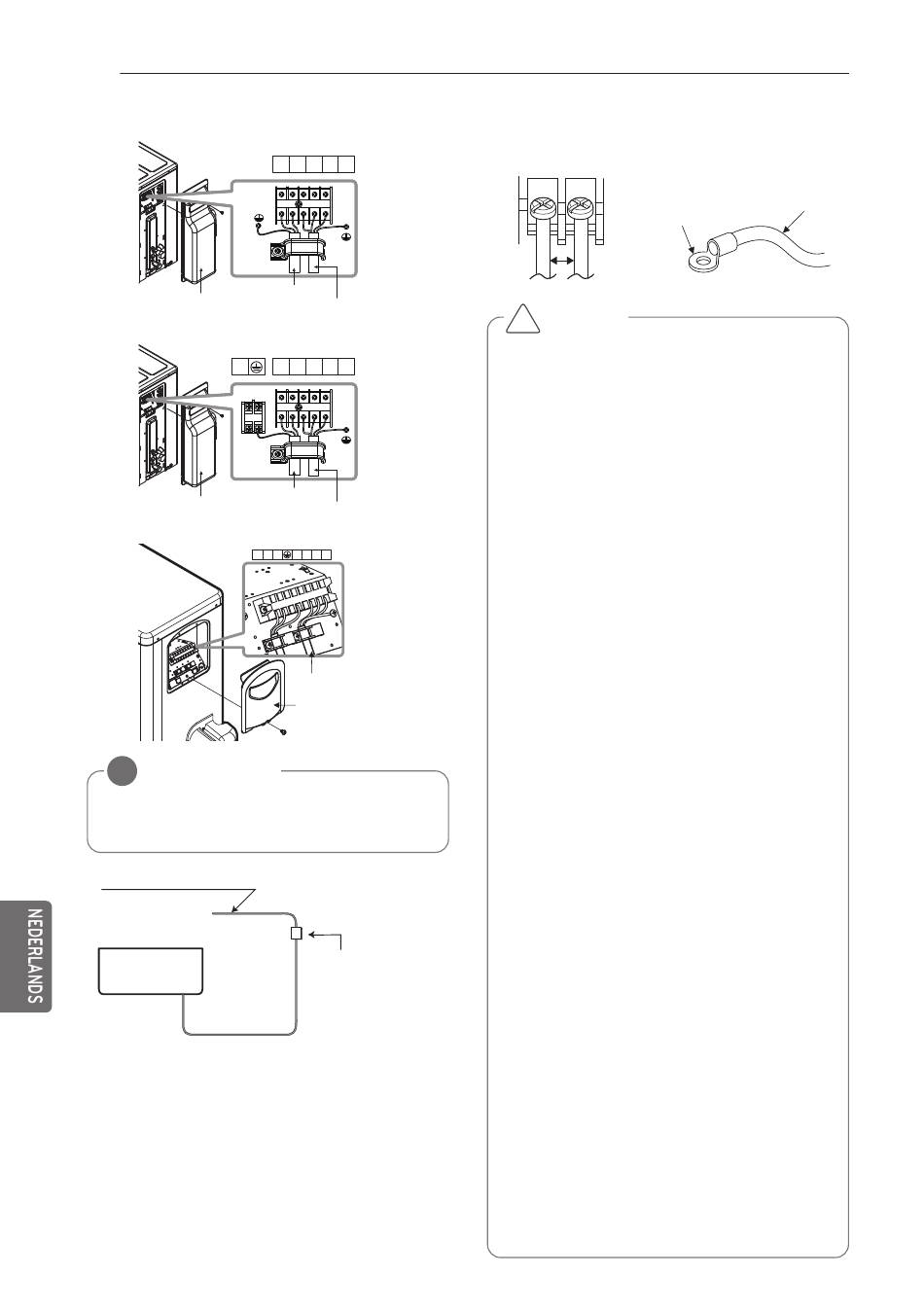

INSTALLATIE
22
• 2.5/3.5 kW
Outdoor Unit
Outdoor Unit
Outdoor Unit
Tubing Cover
• 5.0 kW
Outdoor Unit
Outdoor Unit
Outdoor Unit
Tubing Cover
• 6.6 kW
1(L) 2(N)
Outdoor Unit
Outdoor Unit
Outdoor Unit
OPMERKING
!
Provide the circuit breaker between power
source and the unit as shown by
Main power source
Air
Conditioner
L N
1(L) 2(N)
3(C)
Power cord
Power connecting
cable
L N
1(L) 2(N)
3(C)
Power cord
Power connecting
cable
1(L) 2(N) 3(C)
Connecting
cable
Cover control
Circuit breaker
Use a circuit breaker
or time delay fuse.
Use round pressure terminals for connections
to the power terminal block.
Round pressure
terminal
Over
5mm
LET OP
!
According to the confirmation of the above
conditions, prepare the wiring as follows.
1
Never fail to have an individual power
circuit specifically for the air conditioner.
As for the method of wiring, be guided by
the circuit diagram posted on the inside
of control cover.
2
The screw which fasten the wiring in the
casing of electrical fittings are liable to
come loose from vibrations to which the
unit is subjected during the course of
transportation. Check them and make
sure that they are all tightly fastened. (If
they are loose, it could cause burn-out of
the wires.)
3
Specification of power source.
4
Confirm that electrical capacity is
sufficient.
5
See that the starting voltage is
maintained at more than 90 percent of
the rated voltage marked on the name
plate.
6
Confirm that the cable thickness is as
specified in the power source
specification. (Particularly note the
relation between cable length and
thickness.)
7
Always install an earth leakage circuit
breaker in a wet or moist area.
8
The following would be caused by voltage
drop.
- Vibration of a magnetic switch, which
will damage the contact point, fuse
breaking, disturbance of the normal
function of the overload.
9
The means for disconnection from a
power supply shall be incorporated in the
fixed wiring and have an air gap contact
separation of at least 3 mm in each
active(phase) conductors.
10
Open the terminal cover block before
connecting the indoor side wire.
Power wire
