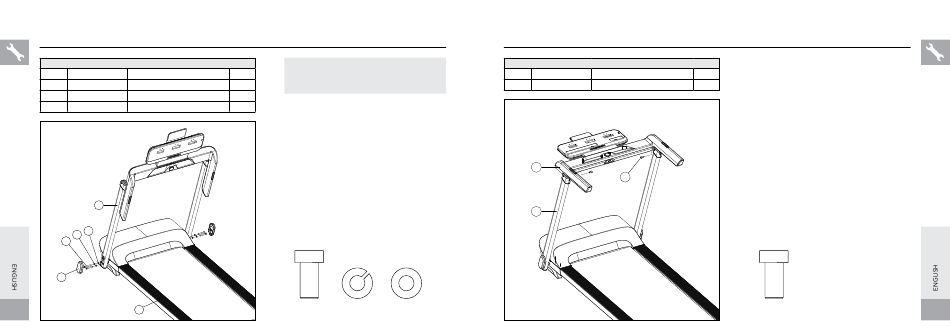

ASSEMBLY STEP 1
HARDWARE FOR STEP 1
PART
TYPE
DESCRIPTION
A
BOLT
M8X1.25PX70L-30L
B
SPRING WASHER
8.0X13.0X1.5T
C
FLAT WASHER
8.2X13.0X1.4T
1
B C
A
3
12
2
NOTE: The treadmill was folded in the carton
QTY
when purchased. Follow these steps to unfold
and assemble the treadmill.
4
4
A
Open HARDWARE FOR STEP 1.
4
B
Carefully lift the CONSOLE MAST (1) upward
until it is in the upright position.
C
Lock the LEFT CONSOLE MAST (1) to the
BASE FRAME (2) using 2 BOLTS (A), 2 SPRING
WASHERS (B) and 2 FLAT WASHERS (C).
D
Attach the LEFT COVERS (3) on LEFT CONSOLE
MAST (1).
E
Repeat C & D on the other side.
A
B
C
ASSEMBLY STEP 2
HARDWARE FOR STEP 2
PART
TYPE
DESCRIPTION
D
BOLT
M8X1.25PX10L
4
D
1
A
Open HARDWARE FOR STEP 2.
QTY
B
Carefully lift the HANDLEBAR (4) upward until it
2
is in the horizontal position.
C
Lock the LEFT HANDLEBAR (4) to the LEFT
CONSOLE MAST (1) using 1 BOLTS (D).
D
Repeat C on the other side.
D
13
