Dell Latitude 5411 Servicehandleiding pagina 58
Verberg thumbnails
Zie ook voor Latitude 5411:
- Installatiehandleiding (40 pagina's) ,
- Handleiding (42 pagina's)
Inhoudsopgave
Advertenties
Steps

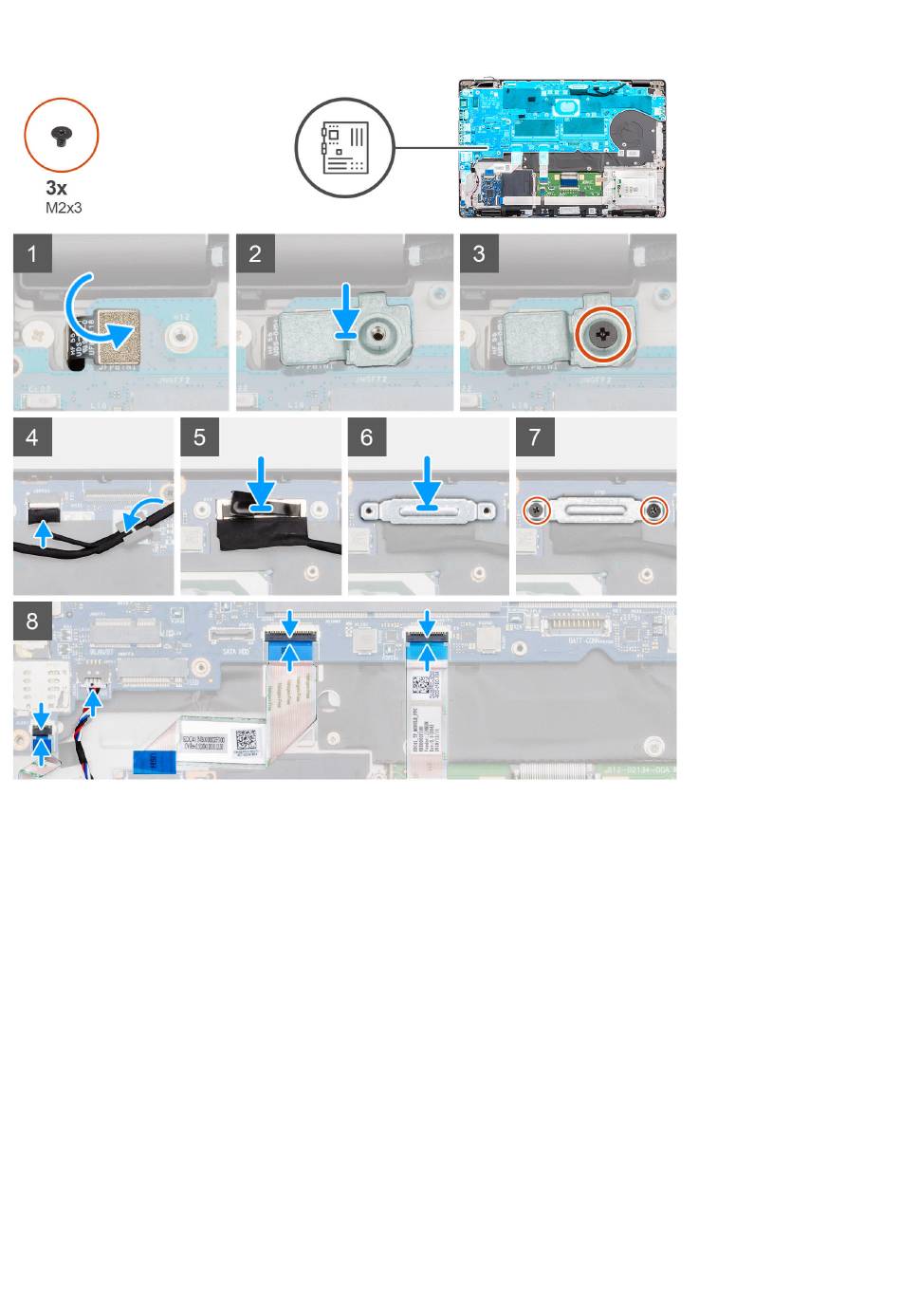

1. Locate the system board slot on your computer.
2. Slide the ports on the system board into the slots on the palmrest and align the screw holes on the system board with the screw holes
on the palmrest.
3. Replace the two (M2x3) screws to secure the system board to the palmrest.
4. Align and place the fingerprint reader sensor on to the slot on the computer.
5. Place the finger print reader metal bracket over the fingerprint sensor.
6. Replace the single (M2x3) screw to secure the metal bracket to the computer.
7. Connect the display cable to the connector on the system board.
8. Adhere the tape that secures the display board to the system board.
9. Replace the two (M2x3) screws to secure the display metal bracket to the system board.
10. Connect the following cables:
a) camera cable
b) speaker cable
c) LED board cable
d) fingerprint reader cable
e) keyboard cable
58
