Sectie 9: Monstervereisten voor gevaarlijke omgevingen.
Het monster mag niet onder druk staan en moet zodanig worden geplaatst dat het niet continu de BioTector kan overstromen als er een buisje zou breken

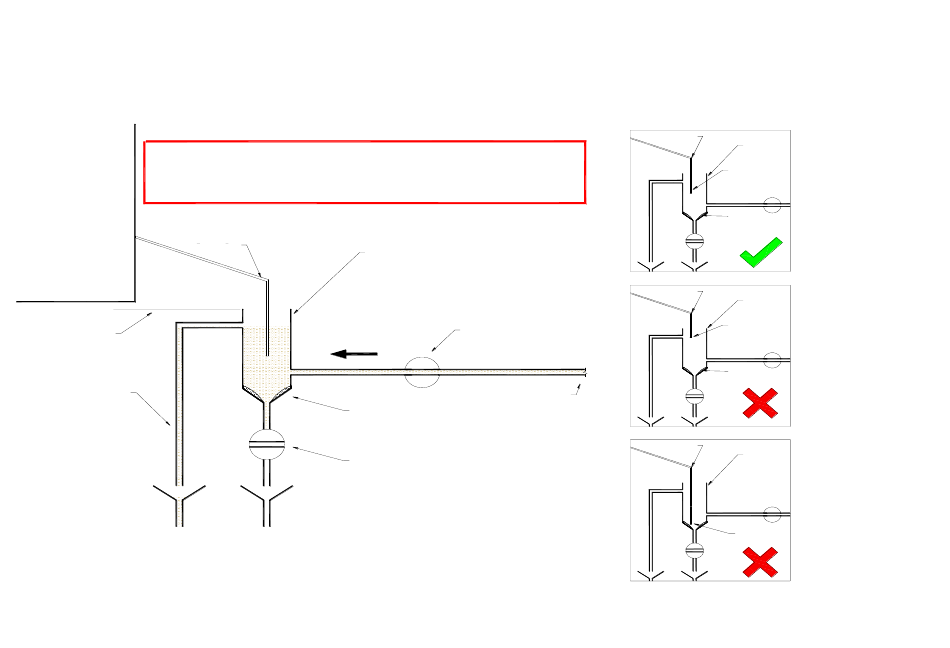

in de BioTector B3500-analyser. In de onderstaande tekening wordt een typisch voorbeeld getoond.
Sample requirement for Hazardous Areas:
The sample must not be under pressure, and installed so that it cannot continuously
BioTector
flood the BioTector in the event of a tube breaking inside the BioTector analyzer.
A typical example is shown in this drawing.
TOC
Analyzer
BioTectors Sample Tube
Locate below BioTector
Overflow to drain.
1
1
"OD x
"ID
4
8
Sample Collection Chamber.
Flow should be sufficient
to replace fluid in catch pot
every minute.
Flow
Silt that gathers at the base
of the collection vessel.
Optional drain valve to drain
the catch pot when the BioTectors
sample pump runs in reverse.
BioTectors Sample Tube
BioTectors Sample Tube
Optional inlet valve used to limit the
volume of sample drawn from the
process. The valve opens before the
BioTectors sample pump runs.
To pressurized
process line.
BioTectors Sample Tube
Sample
Collection
Chamber.
Tube positioned
correclty. Approximately
in the middle of the chamber
inlet and the overflow.
Silt.
Sample
Collection
Chamber.
Tube positioned
incorreclty. Tube is too high
and may not draw in the
sample and may introduce
air bubbles into the analyzer.
Silt.
Sample
Collection
Chamber.
Tube sitting too low. This
may draw the silt into the
analyzer.
