7.2 Notes on microwave motion sensor
The product is equipped with a microwave motion sensor that activates the light if movement
is detected.
The motion sensing area is at the front of the product (the LED light).
For best motion detection:
■
The subject should move across the sensor.
■
Do not place the product behind glass.
■
Observe the recommended installation heights. See "Technical data" for details.
7.3 Wiring
Preconditions:
a
The mains supply is protected by an RCD protective switch.
1. Disconnect the power supply.
2. Wire the mains lead. Observe the wire colour coding:
- Blue: Neutral (N)
- Brown: Single phase (L)
- Green-yellow: Protective earth (PE)

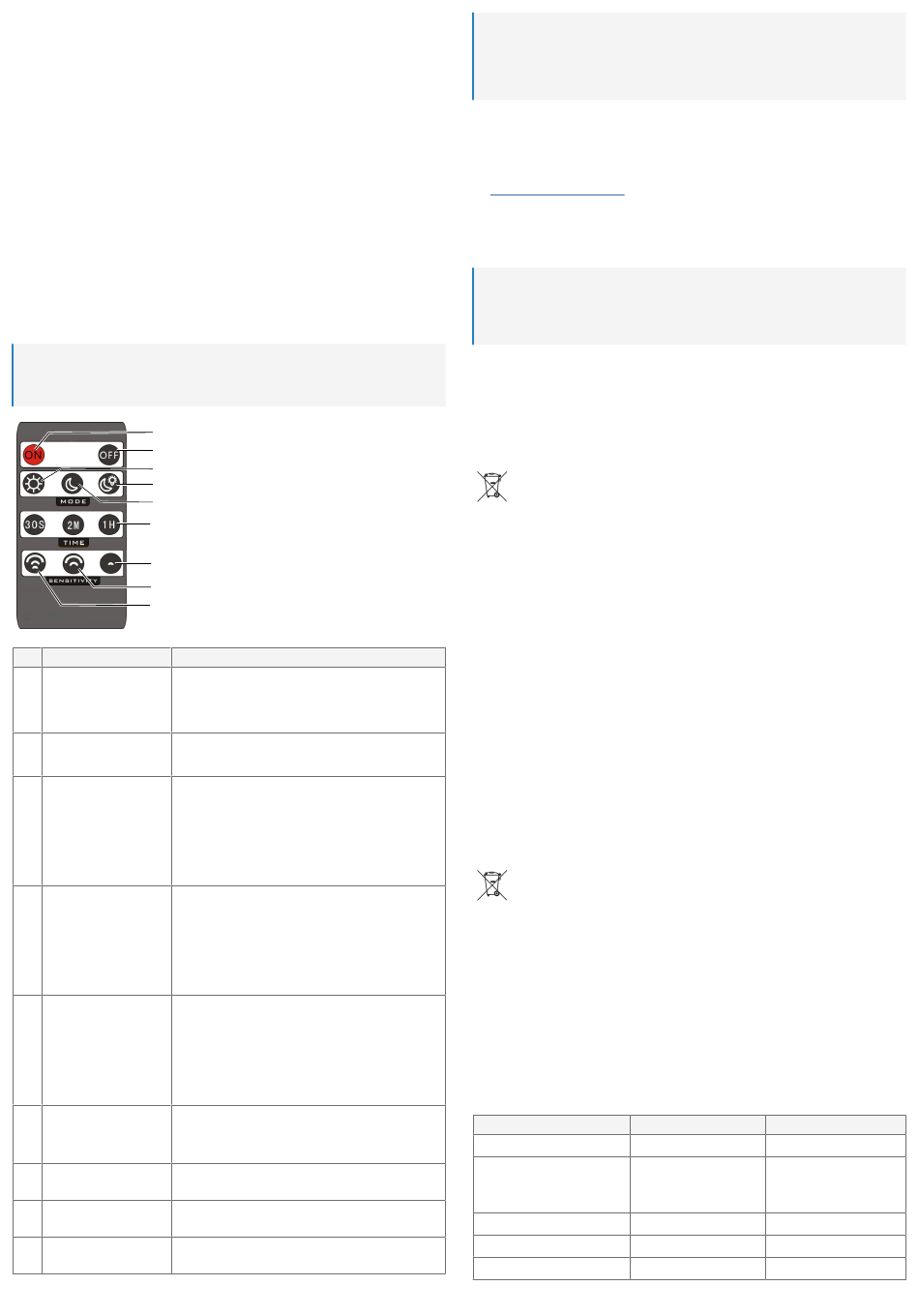

8 Operation
Notes:
– Point the remote control directly at the light.
– The light will flash once to confirm received input.
1
2
3
4
5
6
7
8
9
Component
Description/Function
1
Constant mode button
Press the button to activate the constant mode.
The light remains on continuously.
Switch the light off by pressing the power button OFF.
2
Power button OFF
Press the button to switch the light off permanently.
Any active mode will be deactivated.
3
Mode activation button for
Press the button to activate motion detection for the day
day and night time motion
and the night.
detection
If motion is detected during the day or the night, the
sensor will switch the light on.
Set the duration for which the light remains on using the
timer buttons.
4
Mode activation button for
Press the button to activate the night light mode.
night light mode
If night falls, the light will switch on and switch off in the
morning.
Note: The light remains on during the entire night. You
cannot control the duration for which the light is on. Us-
ing the timer buttons will not have any effect.
5
Mode activation button for
Press the button to activate motion detection during the
night time motion detec-
night (but not during the day).
tion
If motion is detected during the night, the sensor will
switch the light on.
Set the duration for which the light remains on using the
timer buttons.
6
Timer buttons
Press the button to set the duration for which the light will
remain on:
30S = 30 seconds; 2M = 2 minutes; 1H = 1 hour
7
Sensor button "Low"
Press the button to set the motion sensor detection dis-
tance to approx. 1 – 3 m.
8
Sensor button "Medium"
Press the button to set the motion sensor detection dis-
tance to approx. 3 – 6 m.
9
Sensor button "High"
Press the button to set the motion sensor detection dis-
tance to approx. 6 – 10 m.
5
Note:
The product stores settings into memory. If the mains power is interrupted and restored,
the settings that were active before the interruption will be restored. Example: if the night
light mode was activated before the mains power was interrupted, the night light mode
will be activated as soon as the mains power is restored.
9 Declaration of Conformity (DOC)
Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this
product conforms to the 2014/53/EU directive.
■
Click on the following link to read the full text of the EU declaration of conformity:
www.conrad.com/downloads
Enter the product item number in the search box. You can then download the EU declaration
of conformity in the available languages.
10 Cleaning
Important:
– Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions.
They damage the housing and can cause the product to malfunction.
– Do not immerse the product in water.
1. Interrupt the power supply to the product.
2. Let the product cool down to ambient temperature.
3. Clean the product with a dry, fibre-free cloth.
11 Disposal
11.1 Product
This symbol must appear on any electrical and electronic equipment placed on
the EU market. This symbol indicates that this device should not be disposed of
as unsorted municipal waste at the end of its service life.
Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose
of it separately from unsorted municipal waste. Spent batteries and accumulators,
which are not enclosed by the WEEE, as well as lamps that can be removed from
the WEEE in a non-destructive manner, must be removed by end users from the
WEEE in a non-destructive manner before it is handed over to a collection point.
Distributors of electrical and electronic equipment are legally obliged to provide free take-
back of waste. Conrad provides the following return options free of charge (more details on
our website):
■
in our Conrad offices
■
at the Conrad collection points
■
at the collection points of public waste management authorities or the collection points
set up by manufacturers or distributors within the meaning of the ElektroG
End users are responsible for deleting personal data from the WEEE to be disposed of.
It should be noted that different obligations about the return or recycling of WEEE may apply
in countries outside of Germany.
11.2 (Rechargeable) batteries
Remove batteries/rechargeable batteries, if any, and dispose of them separately from the
product. According to the Battery Directive, end users are legally obliged to return all spent
batteries/rechargeable batteries; they must not be disposed of in the normal household
waste.
Batteries/rechargeable batteries containing hazardous substances are labelled
with this symbol to indicate that disposal in household waste is forbidden. The ab-
breviations for heavy metals in batteries are: Cd = Cadmium, Hg = Mercury,
Pb = Lead (name on (rechargeable) batteries, e.g. below the trash icon on the
left).
Used (rechargeable) batteries can be returned to collection points in your municipality, our
stores or wherever (rechargeable) batteries are sold. You thus fulfil your statutory obligations
and contribute to environmental protection.
Batteries/rechargeable batteries that are disposed of should be protected against short cir-
cuit and their exposed terminals should be covered completely with insulating tape before
disposal. Even empty batteries/rechargeable batteries can contain residual energy that may
cause them to swell, burst, catch fire or explode in the event of a short circuit.
12 Technical data
12.1 Product
2997640
Ingress protection
IP65
Mounting height
max. 3 m
(for effective motion sensor
operation)
Input voltage
220 – 240 V/AC
Input frequency
50 / 60 Hz
Power consumption
10 W
2997641
IP65
max. 3 m
(for effective motion sensor
operation)
220 – 240 V/AC
50 / 60 Hz
50 W
