2.4 technical installation
2.4.1 Parts
All filters and pumps must comply with the NF C15-100 installa-
tion standard, which stipulates that any electrical device within
a radius of 3 .50 m around the swimming pool and freely acces-
sible must be equipped with 12V low-voltage current .
Every electrical device of 220V must be placed at a minimum
of 3 .50 m from the swimming pool . For each change to one
or more elements of the filter kit, ask the advice of your
manufacturer . Also follow the instructions in the enclosed filter
installation manual .
The pump capacity
CRISTAL�FLO™ FILTRATION SYSTEM
type
Volume of water Flow rate
OBLONG 6,2x3,9 / H120
18,84 m
OBLONG 6,2x3,9 / H133
21,22 m
OBLONG 6,2x3,9 / H146
23,60 m
OBLONG 8,1x4,6 / H133
34,54 m
OBLONG 8,1x4,6 / H146
38,42 m
7
10
8
9
6
2
4
5
3
KW
Ø sandfiltre
8 m³/h
0,37
450 mm
3
3
8 m³/h
0,37
450 mm
8 m³/h
0,37
450 mm
3
12 m³/h
0,55
550 mm
3
12 m³/h
0,55
550 mm
3
The monobloc filter is the device that is responsible for water
treatment . Filter, pump and six-way valve are collected in one
device . The most important parts of the filter unit are: the filter,
the pump, six-way diverter valve, emptying cap, mains cable,
connecting line .
the pump must never be more than 4 meters higher than
the filter inlet and must be placed in a dry room.
The pump must be inspected annually to ensure proper
operation .
Option
elektr. box
34002
code
34002
code
34002
code
34003
code
34003
code

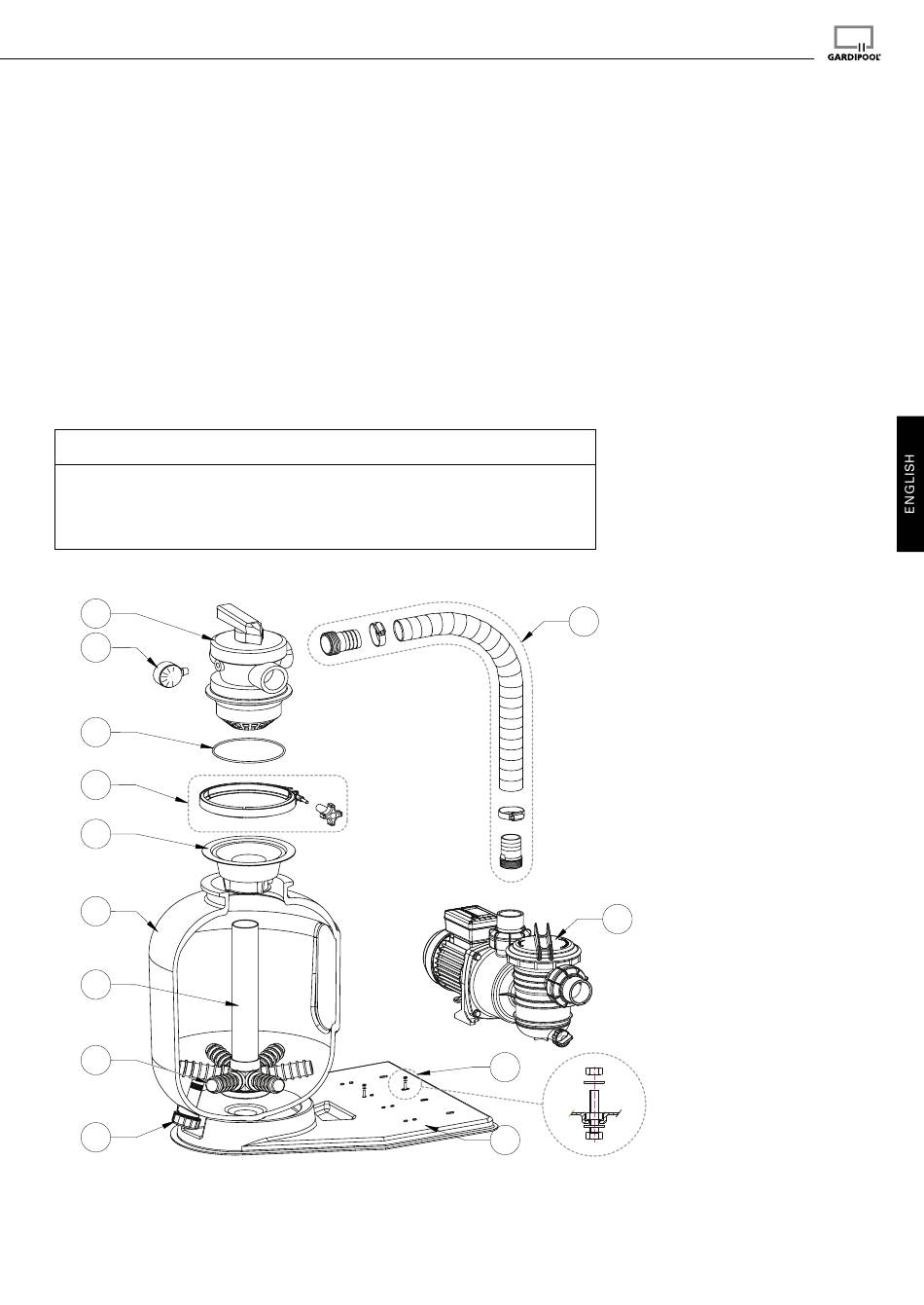

13
11
12
1
1 . Base plate
2 . Filtration tank
3 . Drain
4 . PVC pipe
5 . Spray head
6 . Sand guide
7 . 6-way shutter
8 . Rubber
9 . Metal Clamping Band
10 . Pressure gauge
11 . Pump
12 . Bolts + nuts for pump
13 . Tube
53
