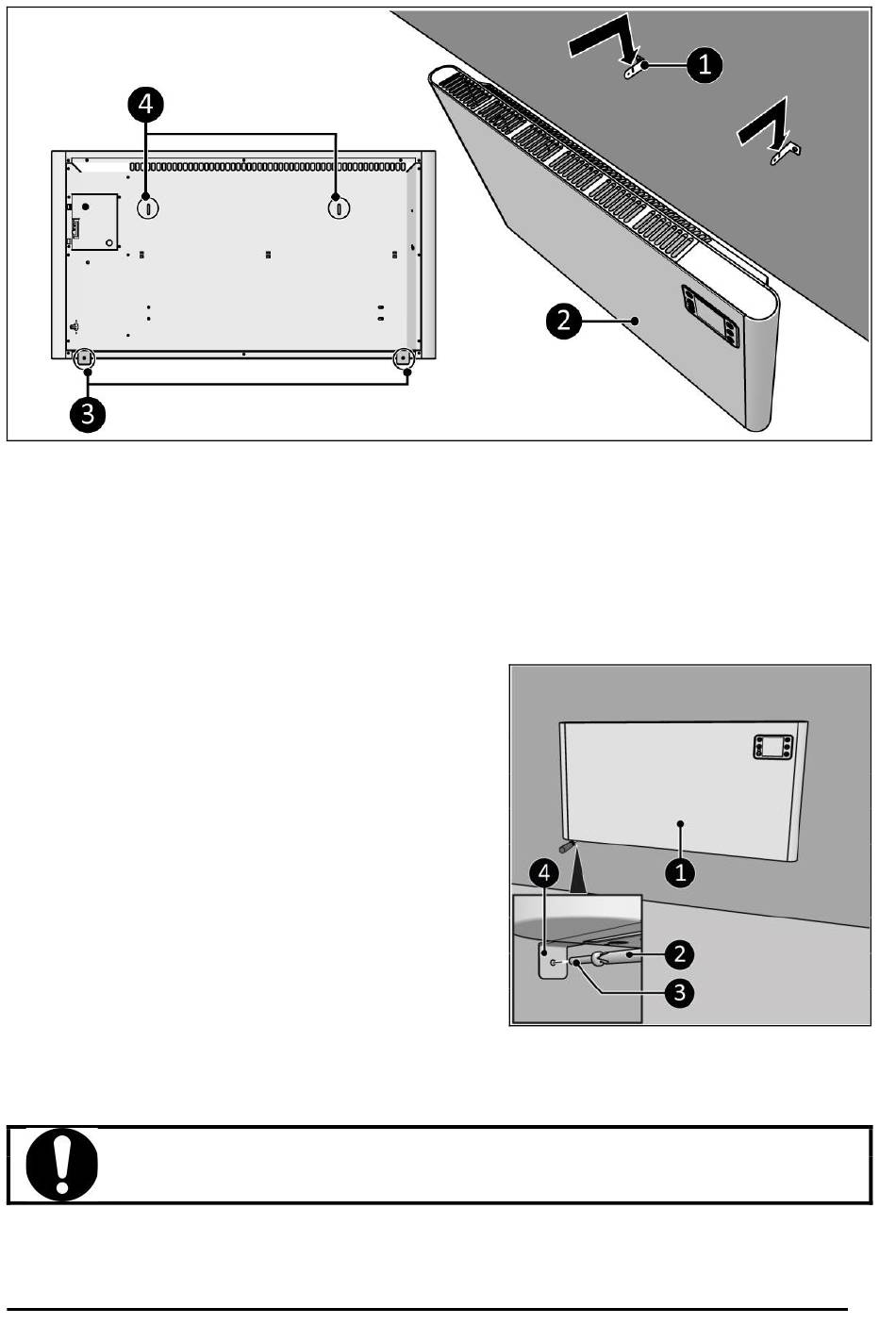

Figure 12
9.
Place the bracket holes (Figure 12, pos. 4) over the wall brackets (Figure 12, pos. 1).
10. Let the device (Figure 12, pos. 2) drop into the openings of the wall brackets (Figure 12,
pos. 1).
11. Use the device brackets (Figure 12, pos. 3) to mark the bottom hole position on the wall.
12. Remove the device from the wall brackets (Figure 12, pos. 1).
13. Drill two holes at the marked positions and
place the wall plugs.
14. Place the device (Figure 12, pos. 2) back on
the wall brackets (Figure 12, pos. 1).
15. Screw and tighten the device brackets (Figure
13, pos. 4) with a large screw (Figure 13,
pos. 3) to the wall (Figure 10, pos. 3) using a
Phillips screwdriver (Figure 13, pos. 2).
Temperature sensor (Optional)
CAUTION
For accurate temperature measuring use the external temperature sensor.
Figure 13
