HAND-HELD AND WALL TRANSMITTERS PROGRAMMING
Programming mode radio drive JM35-F / JM45-F
1.
Disconnect the drive from the mains (fuse OFF)
2.
Wait approx. 10 sec.
3.
Switch on the fuse again
4.
The drive beeps - the shutter moves briefly UP/DOWN

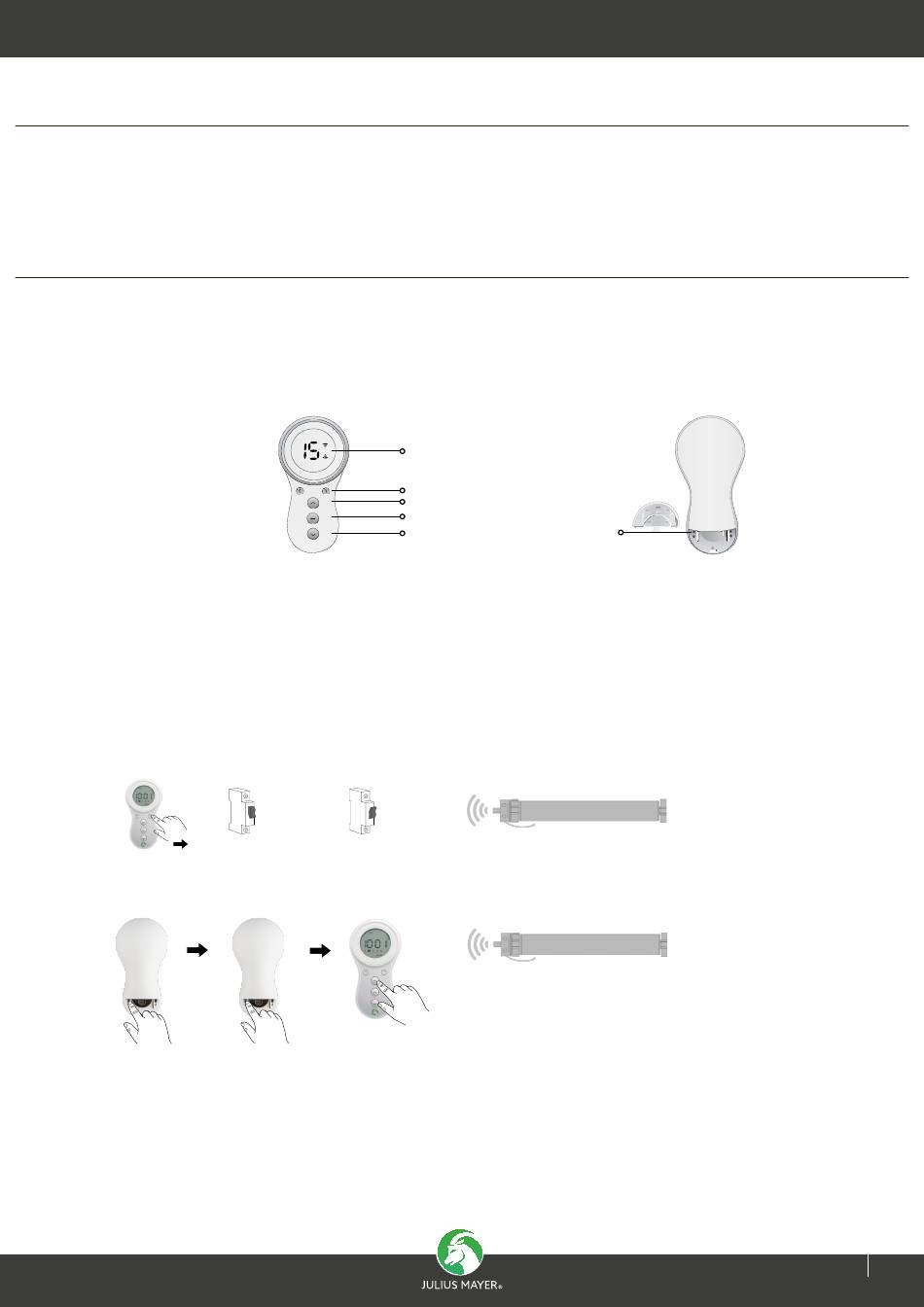

Programming - handheld or wall transmitter
Various hand-held and wall-mounted transmitters (not included in the scope of delivery of the motor) are available for controlling
the roller shutter motor. Compatible hand-held and wall transmitters can be found on page 8. Using the copy function, several
transmitters can be taught into the receiver of the JM-F motors. In this way, individual, group and central control of roller shutters
can be realized. With the help of the first learned transmitter, another (additional) transmitter is learned into the memory of the
motor. Afterwards, it is possible to program additional transmitters from each taught-in transmitter.
See page 16 "Adding manual and wall transmitters".
1.
First select the desired channel by pressing the K1 (or K2) key
(selected channel is shown in the display).
2.
Then put the receiver (motor / external receiver) into programming mode. The receiver beeps once and briefly moves UP/
DOWN.
3.
Press the programming button P2 on the hand-held or wall transmitter (rear) once and the motor beeps once and briefly
moves UP/DOWN.
4.
press the programming button P2 of the hand-held or wall-mounted transmitter (rear) once again and the receiver beeps once
again and moves UP/DOWN briefly.
5.
Then press the UP button once.
6.
The motor (roller shutter) briefly moves UP/DOWN and the receiver beeps 3 times and briefly moves UP/DOWN.
OK - Handheld transmitter is programmed.
To program additional channels (1-15), start from the beginning.
First select the desired channel of
your hand-held or wall-mounted
transmitter.
(not applicable for JMHS-1/JMWS-1)
ca. 4 Sek.
Press the programming
button P2 once.
The receiver beeps once and
briefly moves UP/DOWN.
Then check the function by pressing the UP / STOP / DOWN keys!
The direction of rotation of the motor must be set (programmed) correctly, as otherwise roller shutters may close instead of
opening under certain circumstances (e.g. when using hand-held or wall-mounted transmitters with timer function)!
*If the direction of rotation of the motor is reversed (roller shutter / motor moves downwards when the UP key is pressed),
please start from the beginning and press the DOWN key instead of the UP key after the P2 key!
This will change the direction of rotation of the motor.
Connect the motor
Fuse / power supply
ON.
according to the wiring
diagram (page 13).
Fuse OFF.
ca. 4 Sek.
Press the
Now press the UP button on
programming button P2.
the hand-held transmitter.
The receiver beeps once again
The receiver beeps 6 times.
and briefly moves UP/DOWN.
The hand-held transmitter is
programmed!
(Example with JMHS-15)
Display - Channel display /
Function display
Keys K1 / K2
Up
Stop
Programming-
Down
key P2
The motor
The motor receiver is now ready for
"beeps" and
programming for approx. 10 seconds.
briefly moves
UP/DOWN
The motor briefly
The hand-held or wall transmitter is
moves UP/DOWN
programmed. Programming mode is
and the receiver
ended automatically.
beeps 3 times and
briefly moves UP/
DOWN.
31
