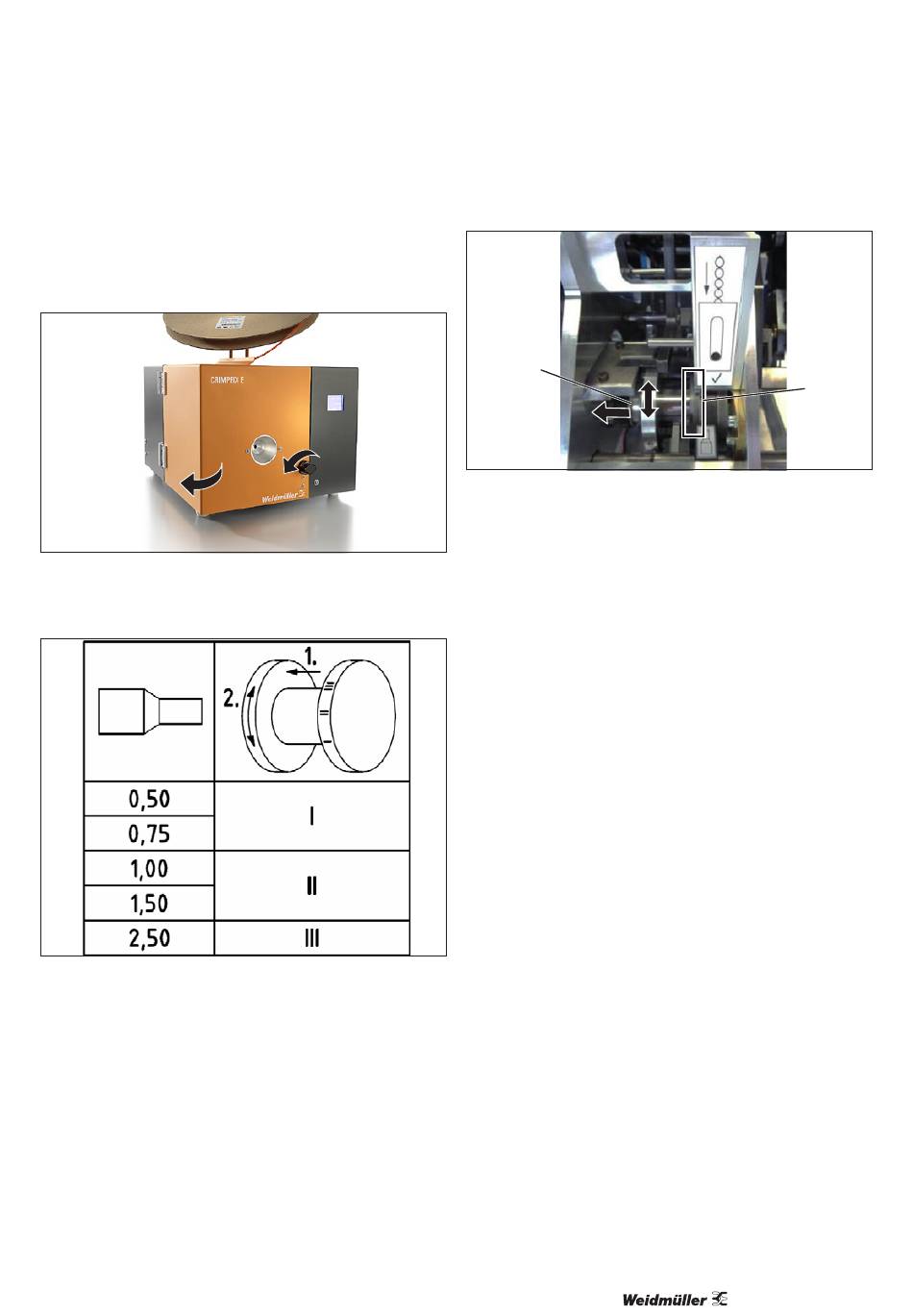

5.3 Setting the crimping die size
1. Turn the lock on the front flap to open it.
2. Swing the front flap to the side.
2.
Figure 5.3 Housing parts
A sticker is located on the inside of the front flap with the
setting values for the crimping die.
Figure 5.4 Crimping die size sticker
2516390000/03/07.2018
1.
Figure 5.5 Setting the die size
► Press the drum (3) to the left and turn it until it latches
The currently set crimping die is indicated using Roman nu-
merals (I-III) and parallel in the touch display.
► Check that the drum is latched in properly by attempt-
3
into the desired die size (4) (see also figure 5.4).
ing to turn it.
Setting up the machine
4
37
