10 ADJUSTING THE "ÖHLINS"TELESCOPIC
FORK (V11 L
C
S
AFÉ
PORT
The motorcycle is provided with an hydraulic fork
equipped with separate adjusters for spring preload and
damping during rebound and compression
The fork is set to the following values at the factory:
-

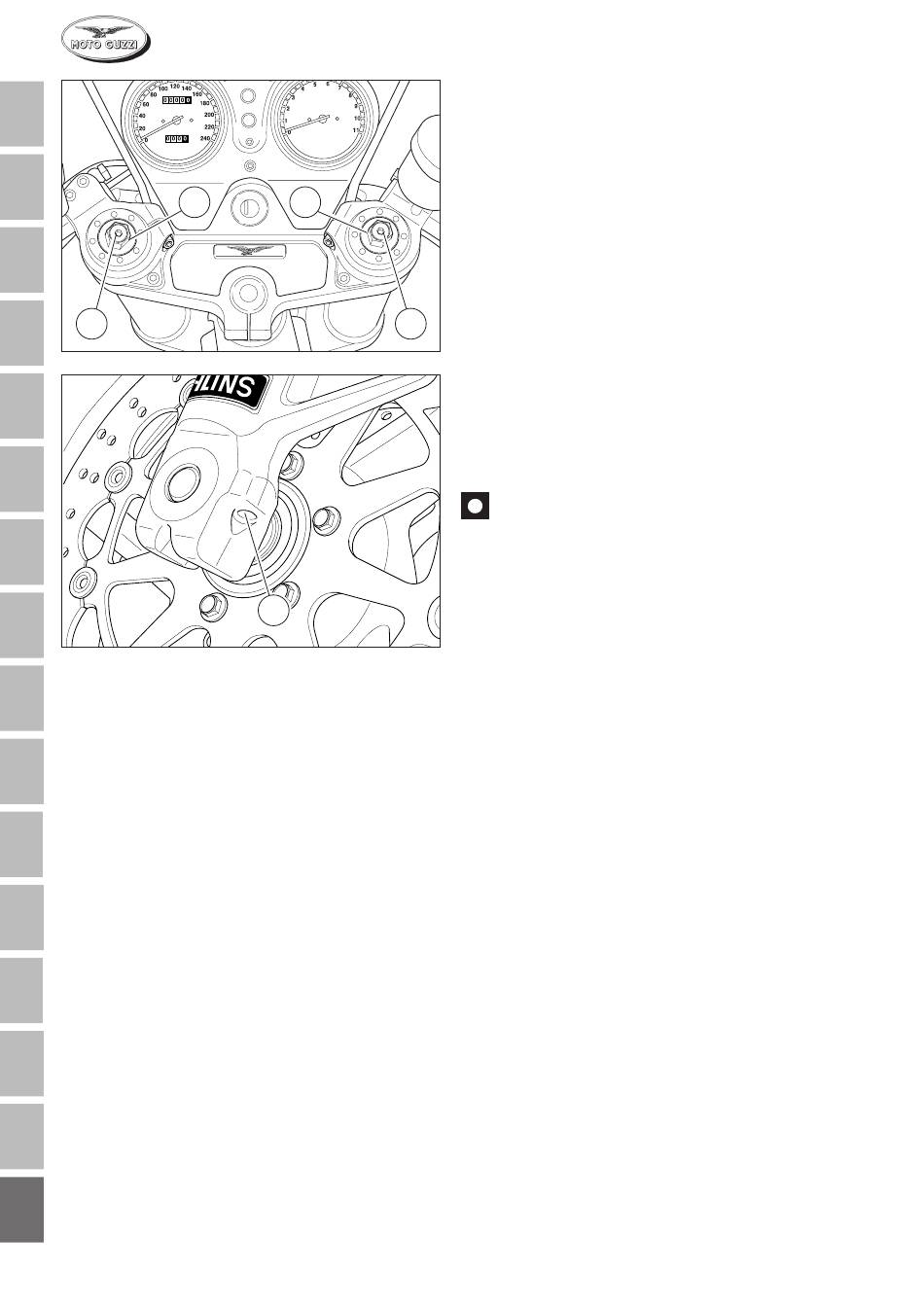

Rebound (Allen screw "C" on both fork leg bottoms):
13 clicks from "fully closed position"
-
Compression (Allen screws "A" and "B" on top plugs):
13 clicks from "fully closed position"
-
Spring preload (nuts "D" and "E" on top plugs): 13
B
turns, i.e. 13 mm.
Use only Ohlins 1309 oil.
Note: do not force the adjusters beyond their
stop positions.
R.H. and L.H. legs are set to the same values.
Hydraulic adjusters have their zero position at
their "fully closed position", whereas spring
adjusters have their zero position at their "fully
open position".
At assembly, close the wheel pack (pin and
clamps at leg bottom) in the end, after pumping
the fork twice or thee times up and down so to
adjust the forks and their parallel position one
to the other.
Do not change these settings so not to affect
vehicle stability and safety while riding.
