3006086-2023-02-09.fm
3. Electrical installation
3.1 Connection diagrams

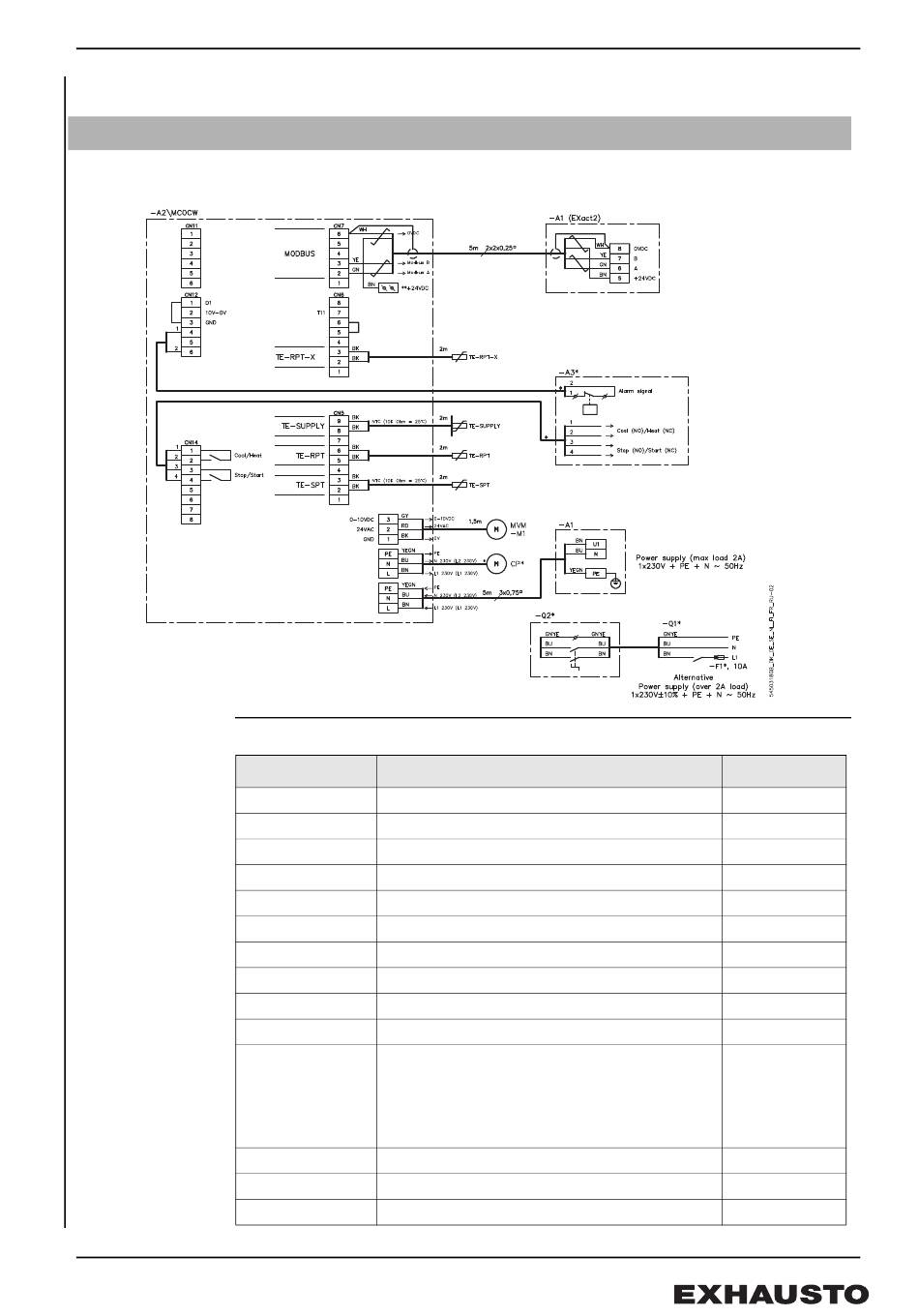

Diagram 1
The following diagram and explanation relates to simplified diagram 1: installation with
chiller.
Key to diagram 1
-A1
-A2
-A3
TE-SUPPLY
TE-RPT
TE-SPT
CP
-M1
*
**24VDC
CN12
Terminals1 and 3
-F1
-Q1
-Q2
Term
Connection box, VEX (EXact2)
MCOCW module
Connection box, Chiller
Supply air temperature sensor
Temperature sensor, return water
Temperature sensor, supply
Cirkulation pump
MVM Motor valve
Not supplied by EXHAUSTO
Strip connector for continuation of 24VDC
It is possible to invert the control signal to
MCOCW, i.e. 0V→10V becomes 10V→0V.
This is done by fitting a jumper across
terminals 1 and 3 of CN12. The change will be
registered the next time the unit is powered up.
Distribution board fuse
Distribution board group switch
Isolation switch (disconnects all poles)
11/116
Description
Supplied by...
EXHAUSTO
EXHAUSTO
Costumer
EXHAUSTO
EXHAUSTO
EXHAUSTO
Costumer
EXHAUSTO
Costumer
EXHAUSTO
EXHAUSTO
Costumer
Costumer
Costumer
