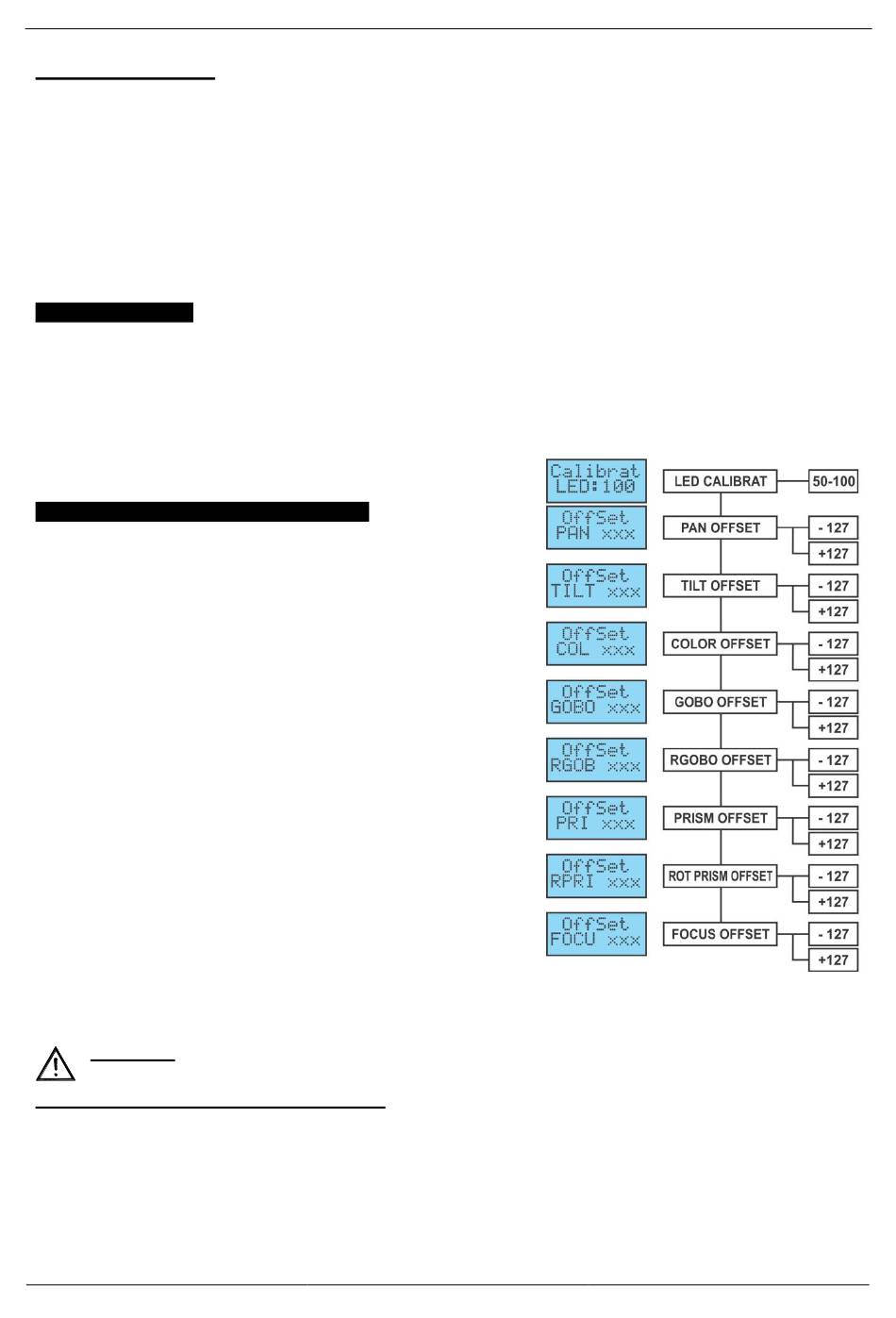

OFFSET MENU:
This is a hidden menu where you can fine-tune the offset of several functions. To access this menu do as
follows: press the [ENTER] button for about 3seconds while you are in the SETUP menu (any option, not
important). Now the OFFSET menu (calibration menu) shows up:
• Use the ▼/▲ buttons to browse the menu.
• Select a function with the [ENTER] button.
• Use the ▼/▲ buttons to change the values.
• Press the [ENTER] button to select.
• Press the [MODE] button for about 2 seconds to store the setting and to return to running mode. If you
don't do this, the setting will not be stored and after some time, the fixture will return to the previous
running mode.
Dimmer Calibration
Due to tolerances in the production process, not all LEDs have exactly the same brightness,
therefore you can use this option to match the Brightness of different machines.
• Use the ▼/▲ buttons until [Calibrat LED] is shown on the display.
• Press the [ENTER] button to start editing.
• Use the ▼/▲ buttons to select a value between "50" (lowest brightness) and "100" (highest brightness).
• Once the desired brightness is found, press the [ENTER] button to confirm.
Note: the default value is 100, a new value cannot be saved to
the USER-defaults.
Offset Adjust men t of different functions
Used to adjust the home position of several functions:
Make sure that the unit is connected to a DMX-controller and set
to 14CH channel mode: set ch6 + ch7 to maximum.
If you're not already in the setup menu, just press the [MODE]
button shortly to enter the setup menu.
• Now press the [ENTER] button for at least 3 seconds to open
the offset menu.
• Use the ▼/▲ buttons to select the function that you want to
adjust, options are:
• [PAN]:
offset PAN movements
• [TILT]:
offset TILT movements
• [COL]:
offset COLOR-wheel
• [GOBO]: offset GOBO-wheel
• [RGOB]: offset of GOBO rotation
• [PRI]:
offset of the prism
• [RPRI]: offset of the prism rotation
• [FOCU]: offset of the FOCUS function.
• Press the [ENTER] button to start editing.
• Use the ▼/▲ buttons to adjust the offset value.
• Press the [ENTER] button to select your setting.
When all offset adjustments are done, press the [MODE] button
for about 2 seconds to store them and to return to running mode.
ELECTRICAL INSTALLATION + ADDRESSING
Important: The electrical installation should be carried out by qualified personal only,
according to the regulations for electrical and mechanical safety in your country.
Electrical installation for 1 standalone unit:
• Just insert the mains cable. The unit starts working immediately in stand-alone mode.
Remark: if there's no output, please make sure to set the option [No DMX] of the projector to [SOUND]
(audio mode) and sound sensitivity [Sound] to a value over 50 (see previous chapter).
