ENGLISH
Pin layout XLR-3pin:
Pin layout XLR-5pin:

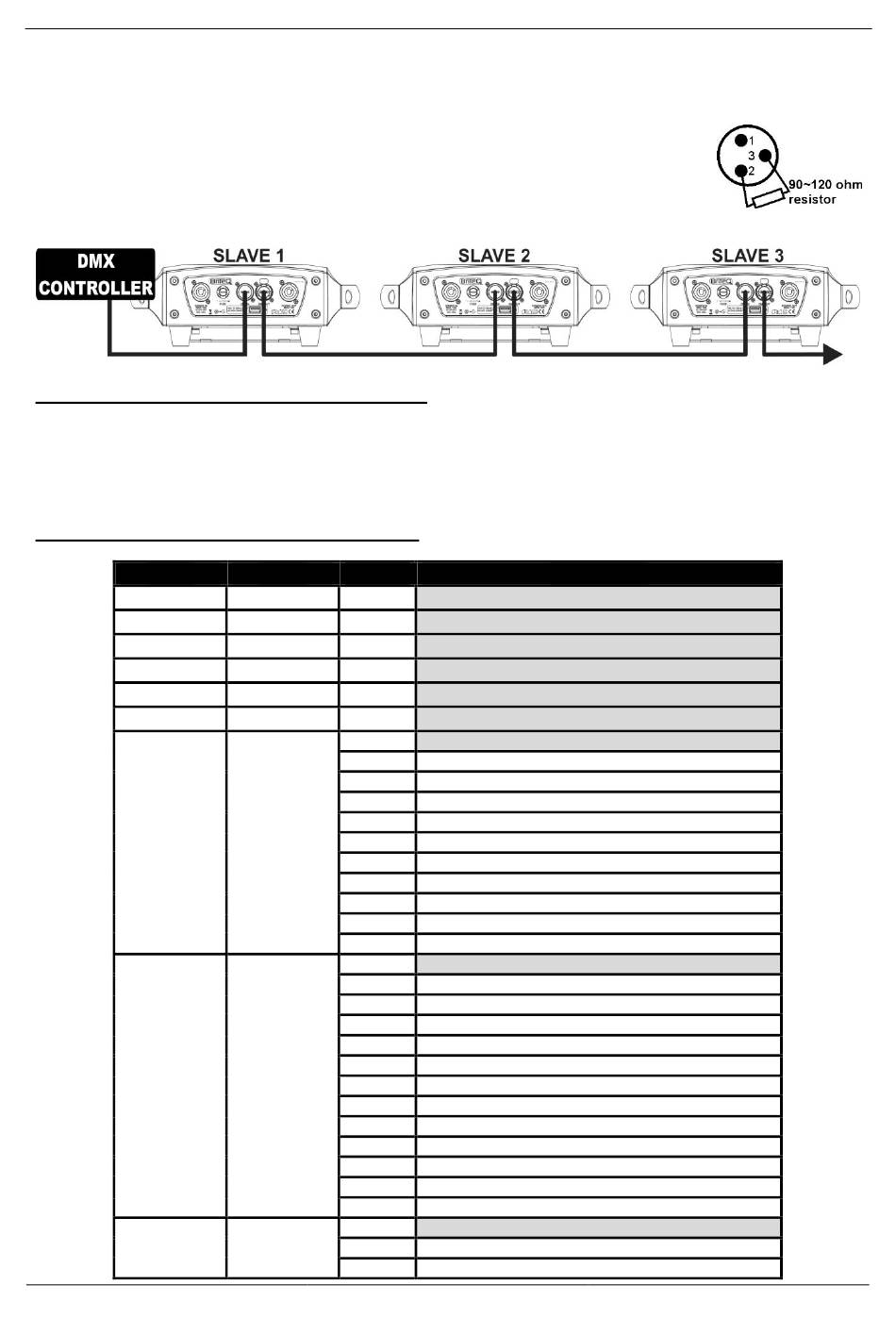

• To prevent strange behavior of the light effects, due to interferences, you must use a 90Ω to 120Ω
terminator at the end of the chain. Never use Y-splitter cables, this simply won't
work!
• Make sure that all units are connected to the mains.
• Each light effect in the chain needs to have its proper starting address so it knows
which commands from the controller it has to decode. In the next section you will
learn how to set the DMX addresses.
HOW TO SET THE RIGHT STARTING ADDRESS:
Refer to the previous chapter (DMX-512 address setting) to learn how to set the starting address on this unit.
The starting address of each unit is very important. Unfortunately it is impossible to tell you in this user
manual which starting addresses you have to set because this completely depends on the controller you will
use... So please refer to the user manual of your DMX-controller to find out which starting addresses you
must set.
DMX-CONFIGURATION IN 11CH + 14CH MODE:
11CH
1
2
3
4
5
NORMAL
5
SPLIT
BRITEQ
®
Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 = Positive signal (+)
Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 = Positive signal (+) ~ Pins4+5 not used.
14CH
VALUE
1
000 - 255 Pan
2
000 - 255 Pan Fine (Least significant bit)
3
000 - 255 Tilt
4
000 - 255 Tilt Fine (Least significant bit)
5
000 - 255 Pan / Tilt Speed (000 = fast ~ 255 = slow)
6
000 - 255 Dimmer (0 to 100%)
000 - 007 Shutter closed (no output)
008 - 015 Shutter open
016 - 131 Strobe 1 (slow → fast)
132 - 139 Shutter open
140 - 181 Strobe 2: slow open / instant close (slow → fast)
7
182 - 189 Shutter open
190 - 231 Strobe 3: instant open / slow close (slow → fast)
232 - 239 Shutter open
240 - 247 Strobe 4: random strobe (slow → fast)
248 - 255 Shutter open
000 - 014 COLOR 1: White (open)
015 - 028 COLOR 2: Red
029 - 042 COLOR 3: Orange
043 - 056 COLOR 4: Yellow
057 - 070 COLOR 5: Green
8
071 - 084 COLOR 6: Blue
NORMAL
085 - 098 COLOR 7: Magenta
099 - 112 COLOR 8: Light Blue
113 - 127 COLOR 9: Pink
128 - 189 Color wheel turning clockwise (fast → slow)
190 - 193 Color wheel stops turning
194 - 255 Color wheel turning counter clockwise (slow → fast)
8
000 - 007 COLOR 1: White (open)
SPLIT
008 - 014 COLOR 1 + 2
FUNCTION
Strobe / Shutter effect
Color wheel
Color wheel
11/74
USER MANUAL
BT-METEOR
