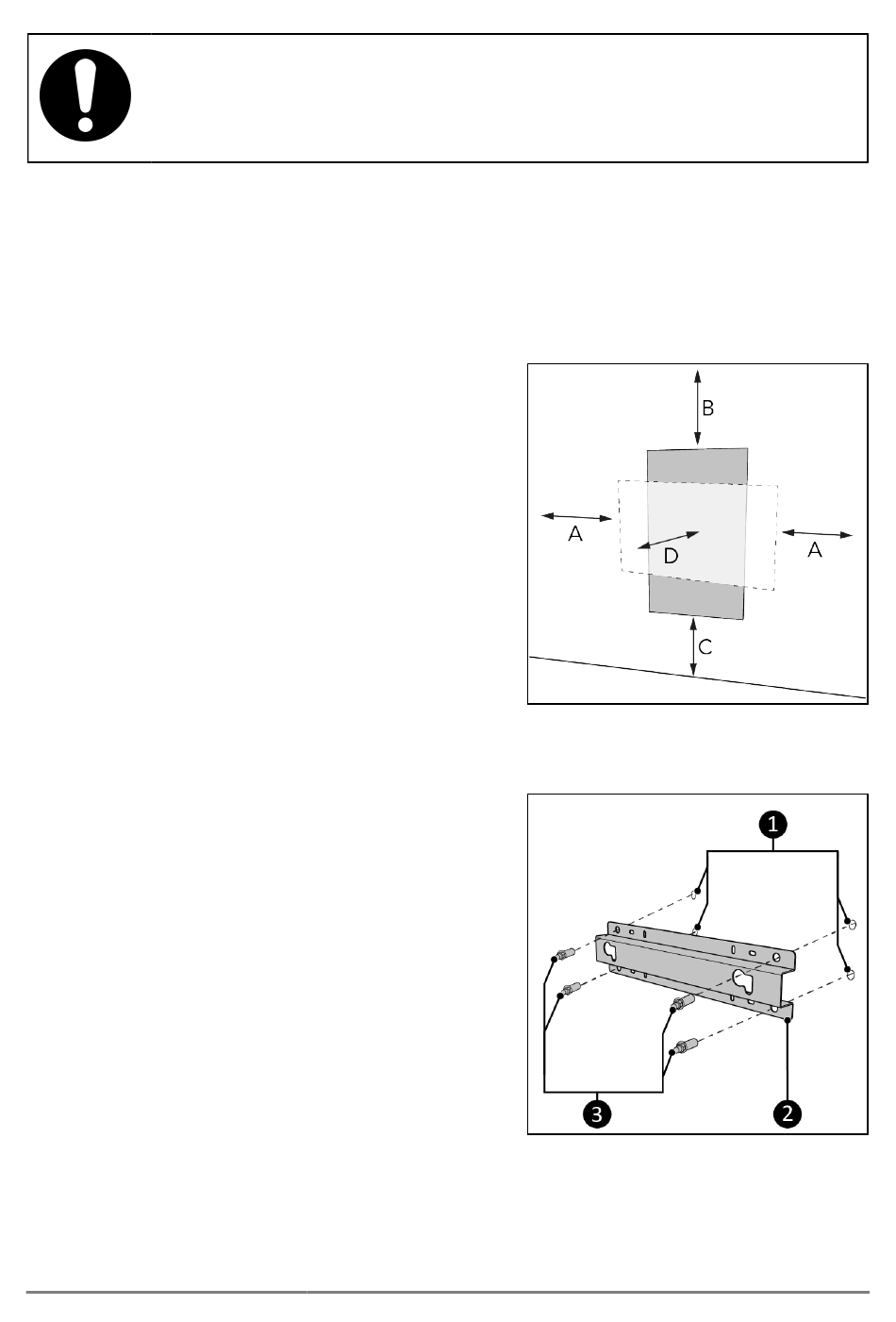

CAUTION
Make sure to use suitable fastening materials, depending on the surface. The
provided anchor bolts are suitable for a brick wall. Never block the space
between the device and the wall or ceiling.
The device can be mounted in two ways:
• vertically to the wall;
• horizontally to the wall;
In both of the placements, the control panel should be visible and operable.
Wall mounting
1. Place the device on a vertical and solid
wall. Use a level when placing the device.
2. Place the device (horizontally or vertically)
with a minimum distance of:
A. 30 cm from the side walls;
B. 30 cm from the ceiling;
C. 20 cm from the floor;
D. 50 cm clearance on the front side.
3. Do not mount the device immediately over,
near or below a socket outlet.
Mounting the bracket
1. Place the wall bracket
against the wall and mark the four holes
(Figure
23, pos. 1). Make sure to place the
bracket upright (see label "This side up" on
the bracket).
2. Drill four 10 mm holes at the marked spots.
3. Firmly screw the bracket to the wall with
the anchor bolts.
4. Tighten the wall bracket to the wall with
the four nuts
(Figure
(Figure
23, pos. 2)
23, pos. 3).
Figure 22.
Figure 23.
