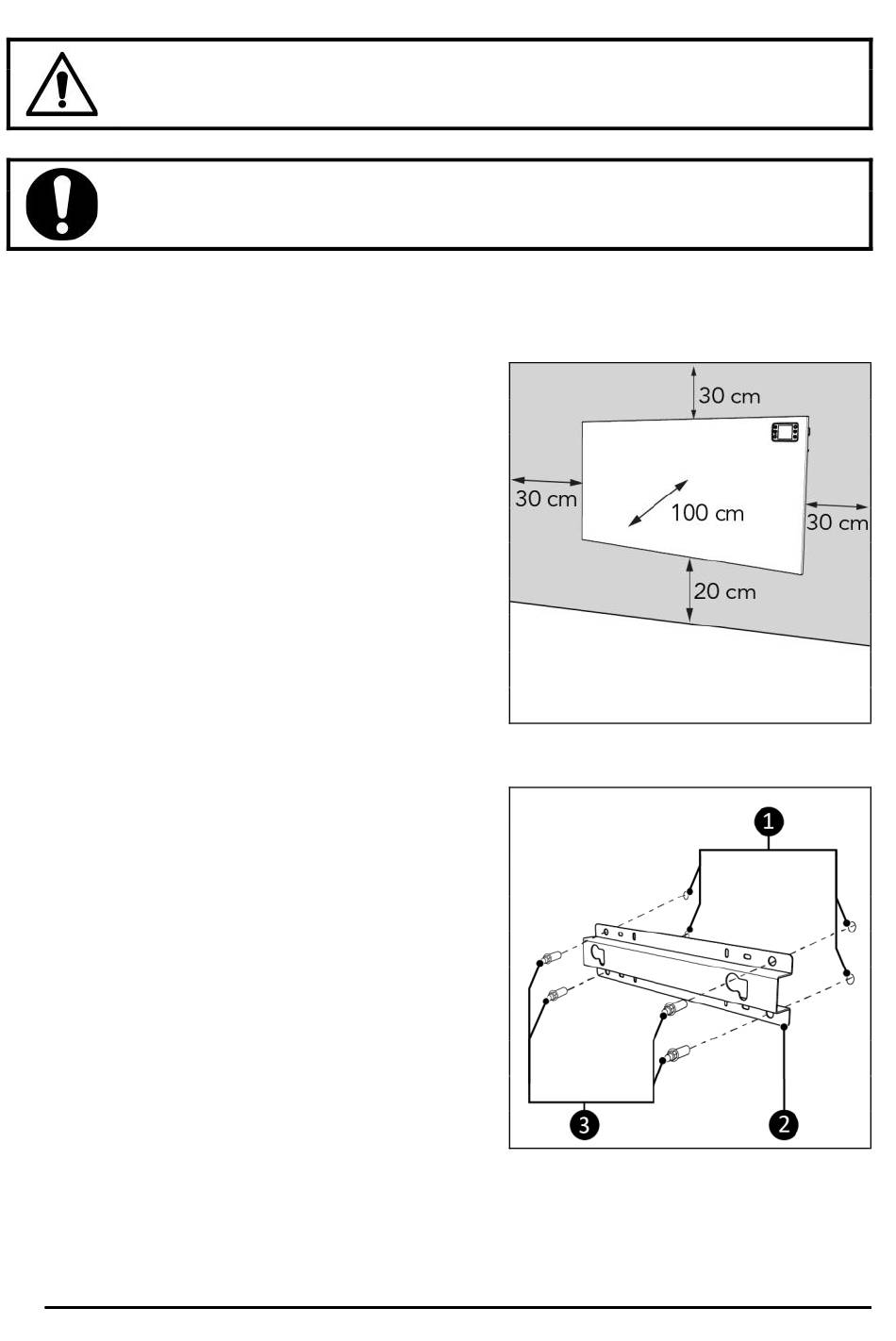

Wall mounting
WARNING
The wall used for mounting must be made from non-flammable material and
should be able to withstand a minimum temperature of 150 °C.
CAUTION
Make sure to use suitable fastening materials, depending on the surface.
Never block the space between the device and the wall.
The device should be mounted horizontally on a wall. The control panel should always be
visible and operable.
1.
Place the device on a vertical and solid
surface. Use a level when placing the device.
2.
Place the device with a minimum distance
(Figure 11) of:
•
30 cm from the side walls;
•
30 cm from the ceiling;
•
20 cm from the floor;
•
100 cm clearance on the front side.
3.
Do not mount the device:
•
immediately below a socket outlet;
•
on a ceiling or roof.
4.
Place the bracket against the wall and mark
the four holes (Figure 12, pos. 1). Make sure
to place the bracket upright (see the "This
side up" label on the bracket).
5.
Drill four 10 mm holes at the marked spots
(Figure 12, pos. 1).
6.
Firmly screw the bracket to the wall with the
anchor bolts.
7.
Tighten the bracket (Figure 12, pos. 2) to the
wall with the four nuts (Figure 12, pos. 3).
8.
If applicable, connect the external temperature sensor to the back of the device.
34
Figure 11
Figure 12
