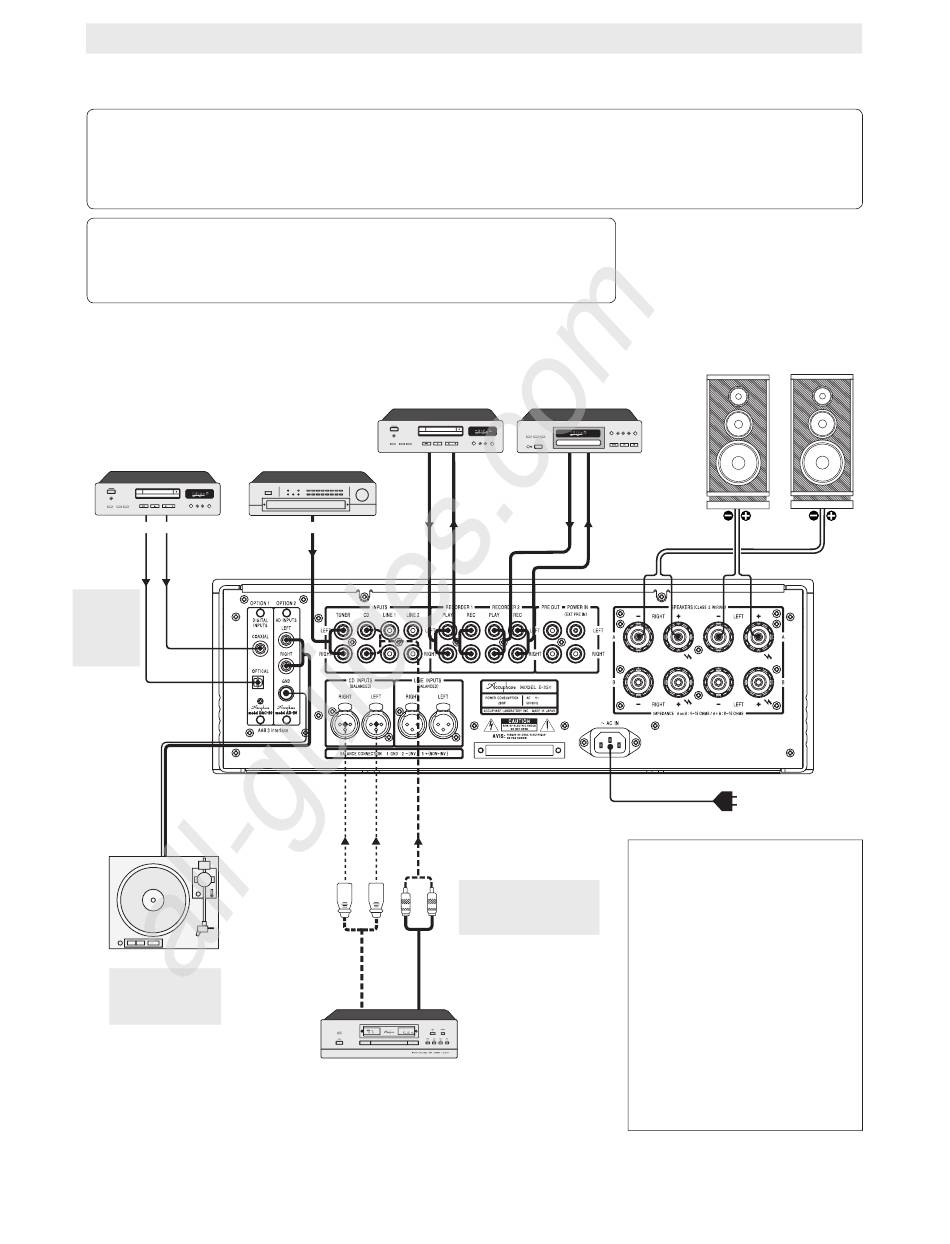

Connection Diagram
R CAUTION:
Note:
● For connection between DAC-20 and digital equipment, use a digital coaxial cable or optical fi ber cable.
● For analog input/output connections, use shielded audio cables and take care not to mix up left and right channels.
● Do not make connections to a component with balanced and unbalanced cables at the same time. Otherwise ground loops
may occur which can cause noise.
The illustration shows a connection example for the unit, with separately available option
boards installed. (For information on option board types, see "Option Board types".)
● OPTION 1:
Digital Input Board DAC-20
● OPTION 2:
Analog Disc Input Board AD-20
CD player, MD recorder,
or other digital
component
DIGTAL OUT
Optical fi ber
Digital coaxial
cable
cable
For an
explanation
of the digital
input, see
"Option
Boards"
Record player
For an explanation of
analog disc playback,
see "Analog disc
(AD) playback".
4
All manuals and user guides at all-guides.com
Before making connections, be sure to switch the power to all components off.
Recorder 1
Tuner
LINE OUT
ANALOG OUT
Balanced
Audio cable
cable
with plug
ANALOG
OUTPUTS
CD Player
Recorder 2
LINE IN
LINE OUT
LINE IN
AC power cord (supplied)
Be sure to plug this cord only into an AC outlet rated
for the same voltage as shown on the rear panel.
✽ Use shielded cables for
Cordon d'alimentation secteur (fourni)
audio connections (2-con-
Brancher ce cordon uniquement dans une prise
ductor shielded cables for
secteur ayant la même tension nominale qu'indiqué
balanced connections).
sur le panneau arrière.
Wechselstrom-Netzkabel (im Lieferumfang
enthalten)
Verwenden Sie dieses Netzkabel nur bei
Netzsteckern mit der gleichen Spannung wie auf der
Geräte-Rückseite angegeben.
Netsnoer (bijgeleverd)
Steek dit snoer enkel in een stopcontact waarvan de
spanning identiek is aan die op het achterpaneel.
Cavo di alimentazione CA (in dotazione)
Assicuratevi di collegare questo cavo solo ad una
presa murale CA che fornisce il voltaggio nominale
indicato sul pannello posteriore.
Speakers
Left
Right
