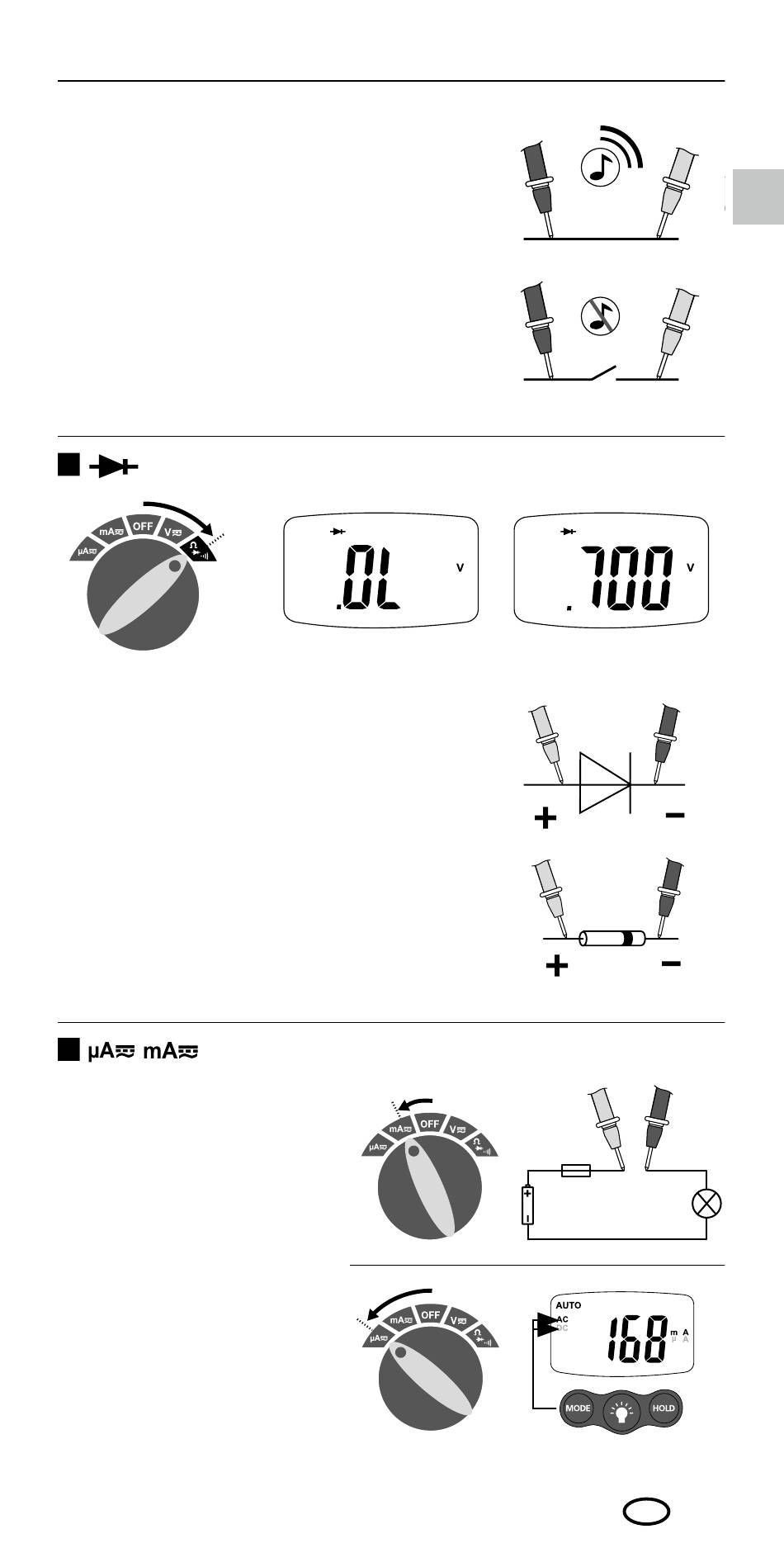

To test continuity, turn the rotary switch
to position „Ω" and press the „Mode"
switch twice to activate the „Continuity
test" function. Then connect the
measuring contacts to the object to be
tested. A measured value of < 150 ohms is
recognised as continuity; this is confirmed
by an audible signal. If „O.L." appears on
the display instead of a measured value,
either the measuring range has been
exceeded or the measuring circuit is not
closed or has been interrupted.
Diode test
6
To test the diode, turn the rotary switch
to position „Ω" and press the „Mode"
switch once to activate the „Diode test"
function. Then connect the measuring
contacts to the diode. The measured
value acquired appears on the display. If
„O.L." appears on the display instead of a
measured value, the diode has either been
tested in the reverse direction or is faulty.
7
To take a current measure-
ment in the range from 0
to 200 mA, turn the rotary
switch to position „mA" and
press the „Mode" button
to set the voltage mode
(AC, DC). To take a current
measurement in the range
from 0 to 200 µA, turn the
rotary switch to position
„µA" and press the „Mode"
button to set the voltage
mode (AC, DC).
MultiMeter-Pocket
Reverse direction
Current measurement DC/AC
black
Forward direction
red
black
Forward direction
red
black
EN
red
15
