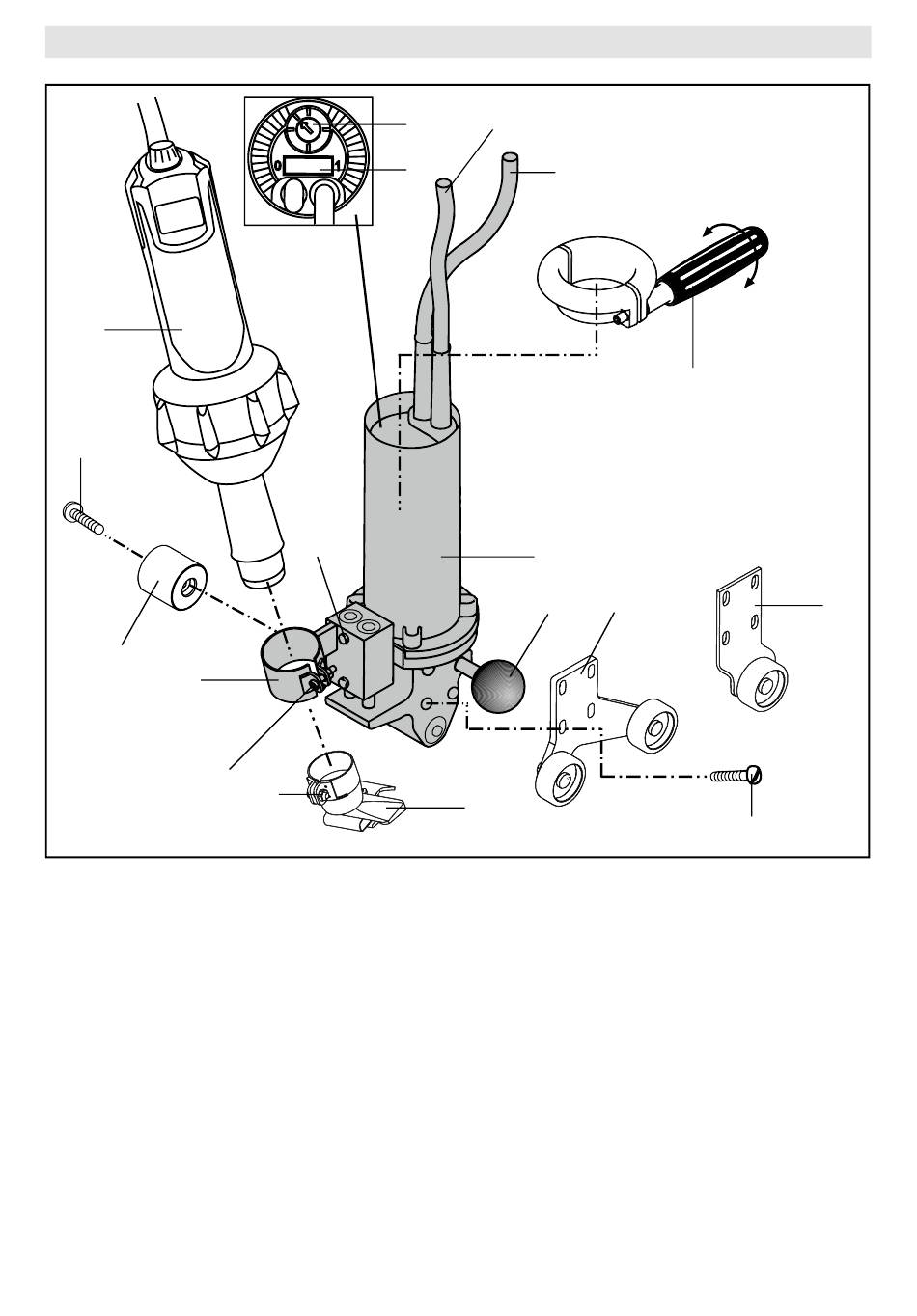

Tool description
13
12
11
6
14
1 Power supply cord plug
2 Power supply cord coupling
3 Mains switch
4 Potentiometer for welding speed
5 Drive unit
6 Holder for hot air blower
7 Two adjusting screws for holder
8 Double supporting carrier
9 Single supporting carrier
10 Four fixing screws for supporting carrier
11 Pressure roller
For tool description for hot air blower, refer to TRIAC AT or TRIAC ST operating instructions.
All manuals and user guides at all-guides.com
7
17
1
4
3
2
5
18
16
12 Fixing screw for pressure roller
13 Hot air blower, TRIAC AT or TRIAC ST
14 Fixing screw for hot air blower
15 Guide handle
16 Overlap welding nozzle
17 Fixing screw for overlap welding nozzle
18 Tool stowage bar
Leister DRIVE
15
8
10
9
13
