Device description / Initial operation of ProCut basic

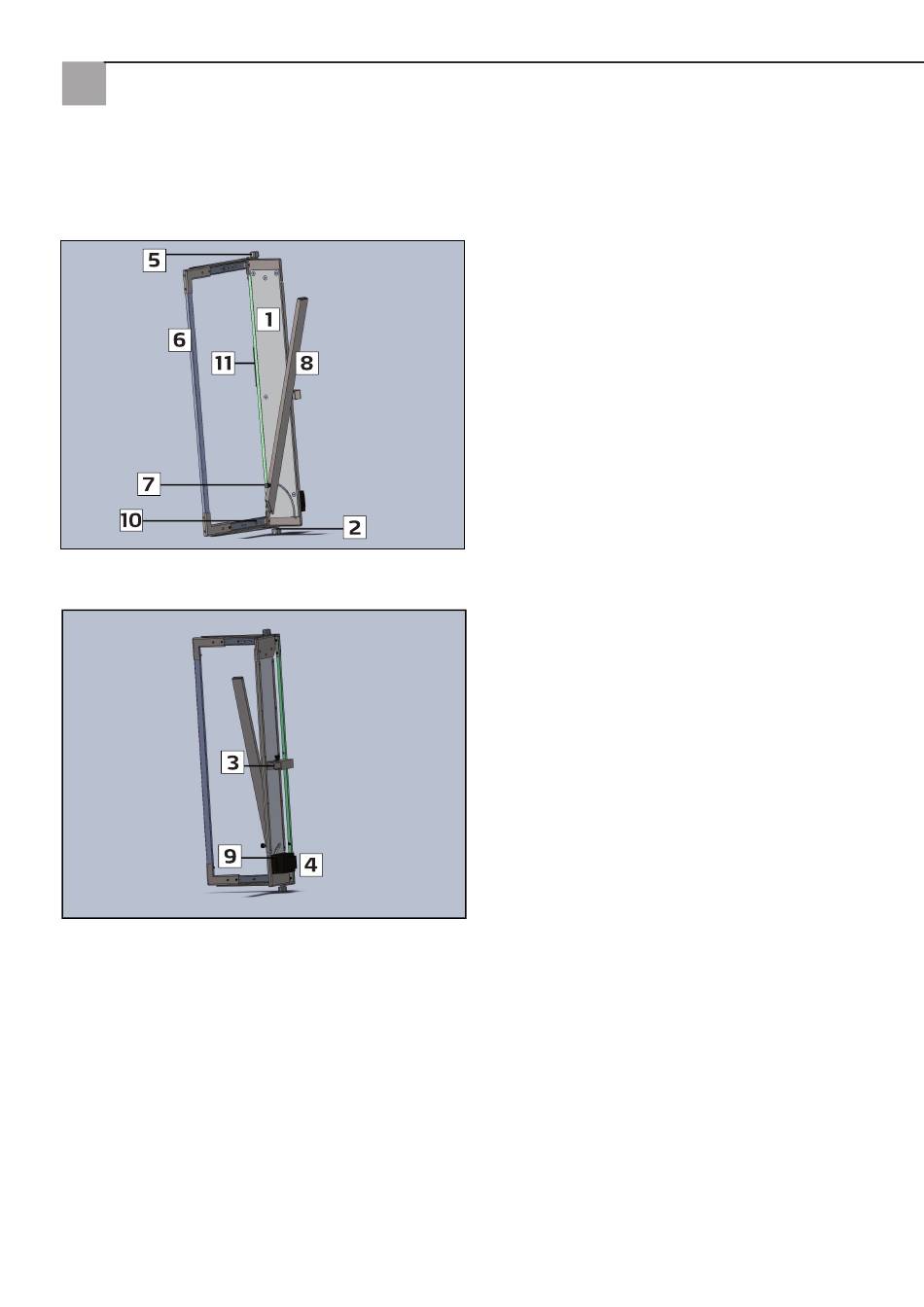

Fig. 1: Front view
Abb. 2: Rear view
Configuration / initial operation
The device is delivered in a transport and storage case:
Open the case and remove the device.
Do not use the cutting bow (no. 6) to remove the device from the case.
Grasp the device by the base plate (no. 1) and remove it from the case.
Transfer the device to the installation location on the scaffolding and set it carefully on the lower large black
set screw (no. 2) for the cutting bow. Open the locking bolt (no. 3) for the scaffold mount on the rear of the
device and mount it in the upper section of the backrest. The transformer (no. 4) now butts against the pad-
ded surface on the lower scaffold section of the backrest. Screw the locking bolt (no. 3) firmly in position on
the scaffold mount. Make sure the device is mounted securely and at the correct position.
All manuals and user guides at all-guides.com
1
2 Lower set screw for cutting bow
5
6 Cutting bow
7
8 Bearing rail for foam board
10 Scale for rebate and section cut-outs
11 Fold-out mitre aid
3 Securing bolt for scaffold mount
4 Transformer
9 On/Off switch on the transformer
42
Base plate
Upper set screw for cutting bow
Set screw for bearing rail
