Busch-easycare
6
Connections and commissioning

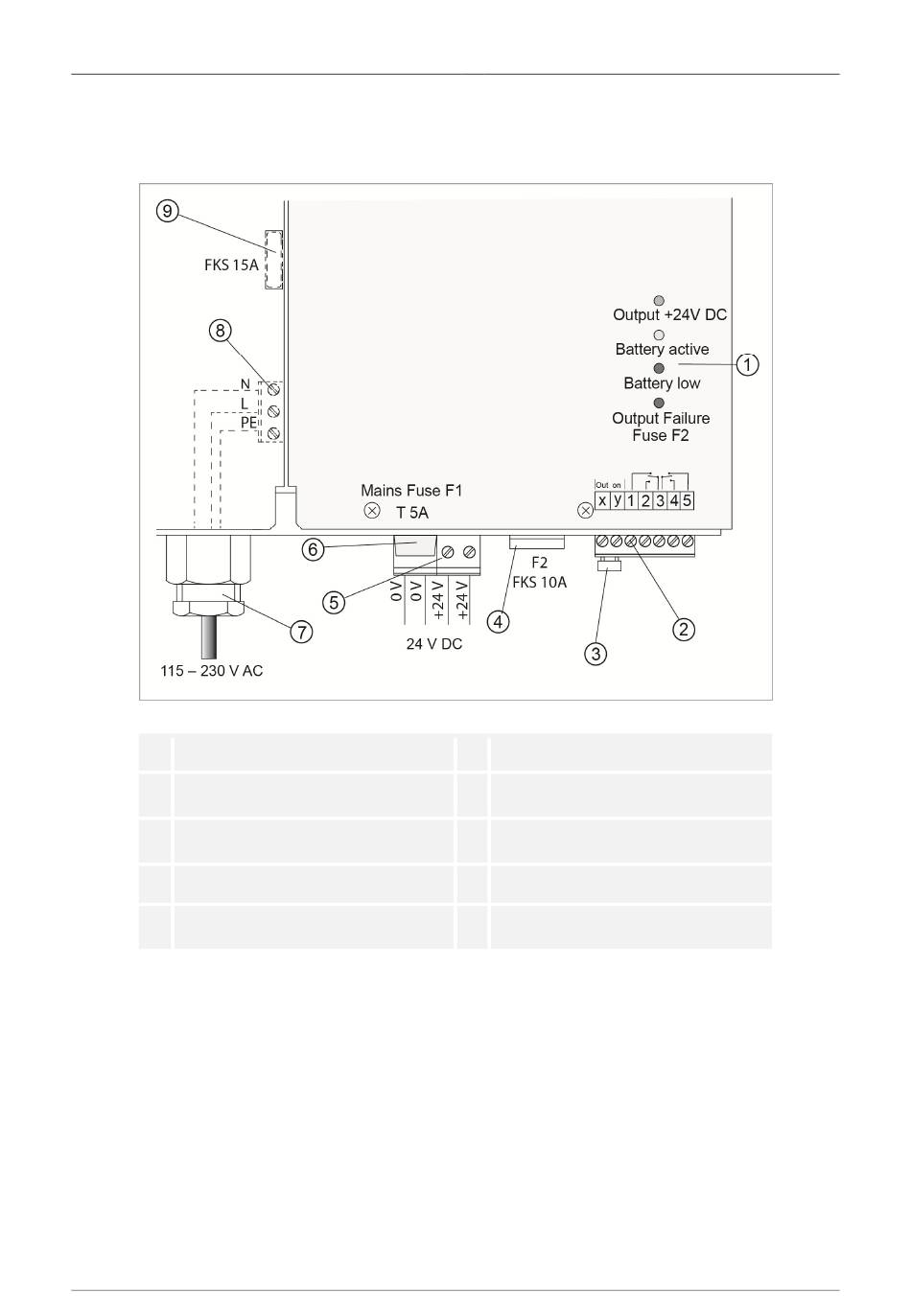

Fig. 2: Connections, fuses and LED displays
1
LED displays
Signalling outputs
2
Plug-in screw-type terminal, 7-pole
Insertion bridge for
3
control terminals "x" and "y"
4
Output fuse F2: FKS 10A
24 V connection
5
Plug-in screw-type terminal, 4-pole
Tab.1: Connections, fuses and LED displays
Technical manual 0073-1-8701
All manuals and user guides at all-guides.com
6
7
8
9
Connections and commissioning
Mains fuse F1: (20 x 5) T 5A
Cable screw gland for
mains connection cable
Mains supply
Plug-in screw-type terminal, 3-pole
Internal battery fuse: FKS 15A
