Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The product may only be used for bathing, hygienic
and body cleaning purposes.
The hot and cold supplies must be of equal pres-
sures.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the ixture must be installed, lushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be observed.
Technical Data
Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Thermal disinfection:
The product is exclusively designed for drinking water!
Fault
Mixer stif
Mixer dripping
Hot water temperature too low, no
cold water. Instantaneous water
heater starts up when cold water is
selected.
Diverter not operating
4
English
max. 1 MPa
0,1 - 0,5 MPa
1,6 MPa
max. 70°C
65°C
max. 70°C / 4 min
Cause
- Cartridge defective, calciied
- Cartridge defective
- Hot water limiter incorrectly set
- Crosslow
- Residue
- Water pressure to low
- Diverter defective
Assembly see page 31

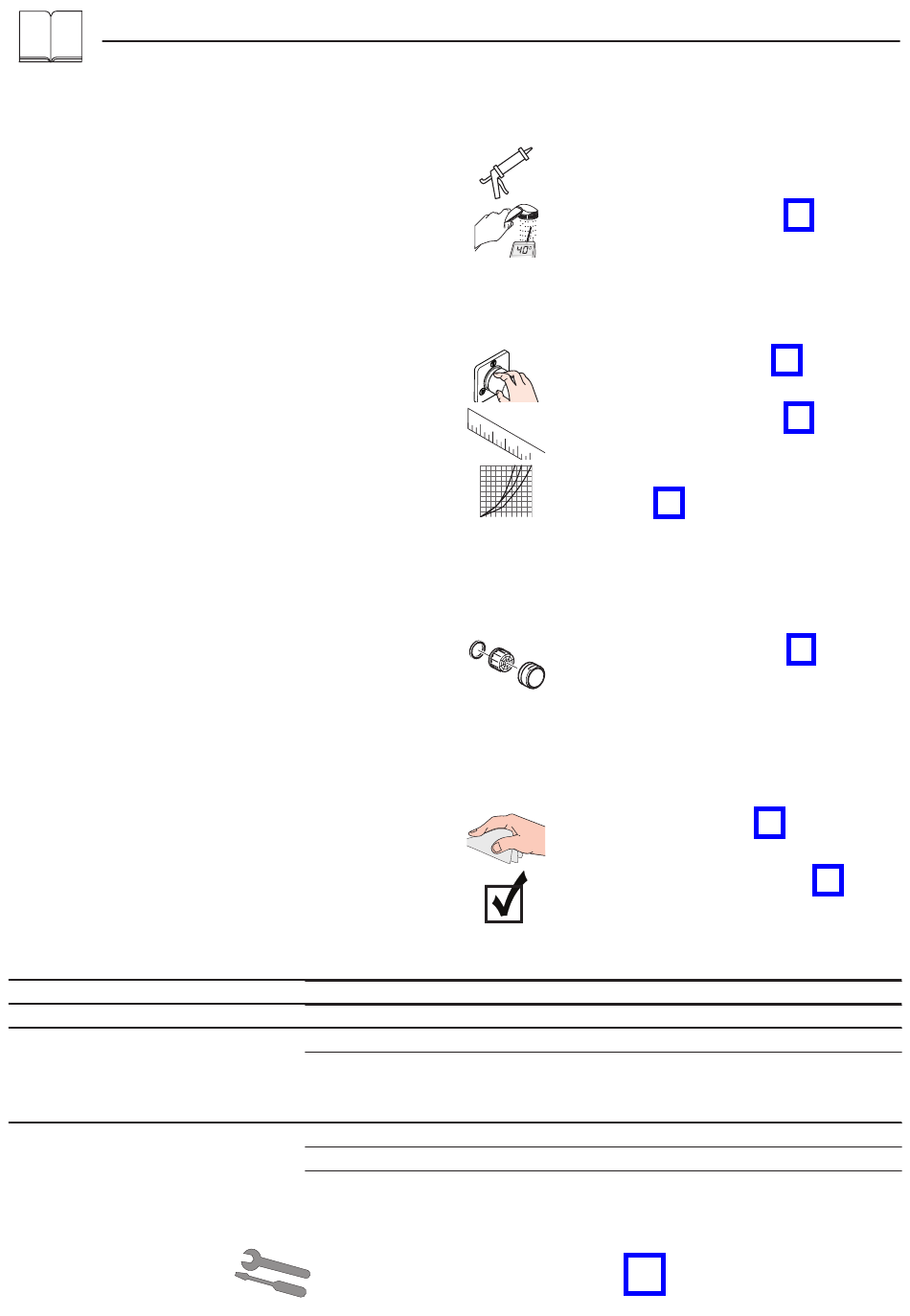

Symbol description
Do not use silicone containing acetic acid!
Adjustment (see page 33)
To adjust the hot water limiter. Using a hot
water limiter in combination with a continu-
ous low water heater is not recommended.
Operation (see page 35)
Dimensions (see page 34)
Flow diagram
(see page 35)
free low
Shower outlet
Tub outlet
Spare parts (see page 37)
XXX = Colors
000 = chrome plated
090 = chrome plated/gold plated
400 = white/chrome plated
950 = brushed brass
Cleaning (see page 40)
Test certiicate (see page 36)
Remedy
- Exchange cartridge
- Exchange cartridge
- Set hot water limiter
- Exchange cartridge
- Clean converter / grease O-rings
- Increase water pressure
- Exchange diverter
