Release the transport restraint, set the ON/OFF switch to „ON".
The laser cross will appear. The laser lines can be switched
individually with the selection button.
LASER
!
08
SmartCross_Laser_77x152_Rev0313.indd 08
SmartCross_Laser_77x152_Rev0313.indd 08

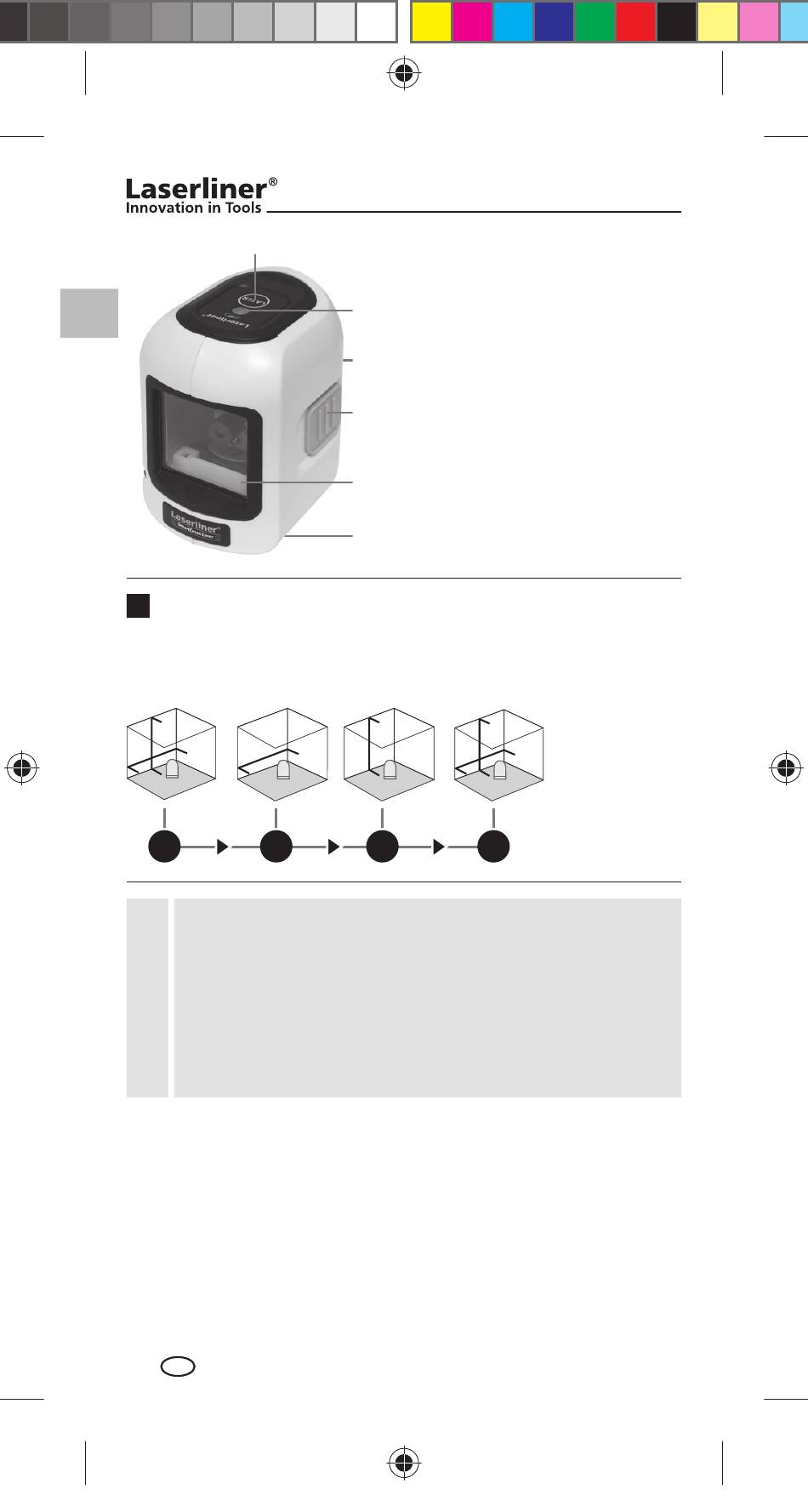

1
Horizontal and vertical levelling
LASER
The transport restraint must be released for horizontal
and vertical levelling. The LED shows a permanent
green light. The laser lines fl ash and the LED lights red
as soon as the device is outside the automatic levelling
range of 5°. Position the device such that it is within
the levelling range. The LED switches back to green
and the laser lines stop fl ashing (steady light).
GB
1
Laser line selection button
2
LED levelling
red: levelling off
2
green: levelling on
3
Battery compartment
3
(backside)
4
4
ON / OFF switch,
transport retainer
5
Laser output windows
5
6
1/4" tripod threads
(bottom)
6
LASER
LASER
26.04.13 11:53
26.04.13 11:53
