3. Installation of RKRTR
All manuals and user guides at all-guides.com
You can mount the RKRTR thermostat on the wall or use it as
table-top model.
3.1.
Wall-mounted installation
The RKRTR thermostat can be wall-mounted, with supplied
screws and plugs. Refer to figure 1.
This is the case when you want to install the optional EKRTETS
as external temperature sensor.

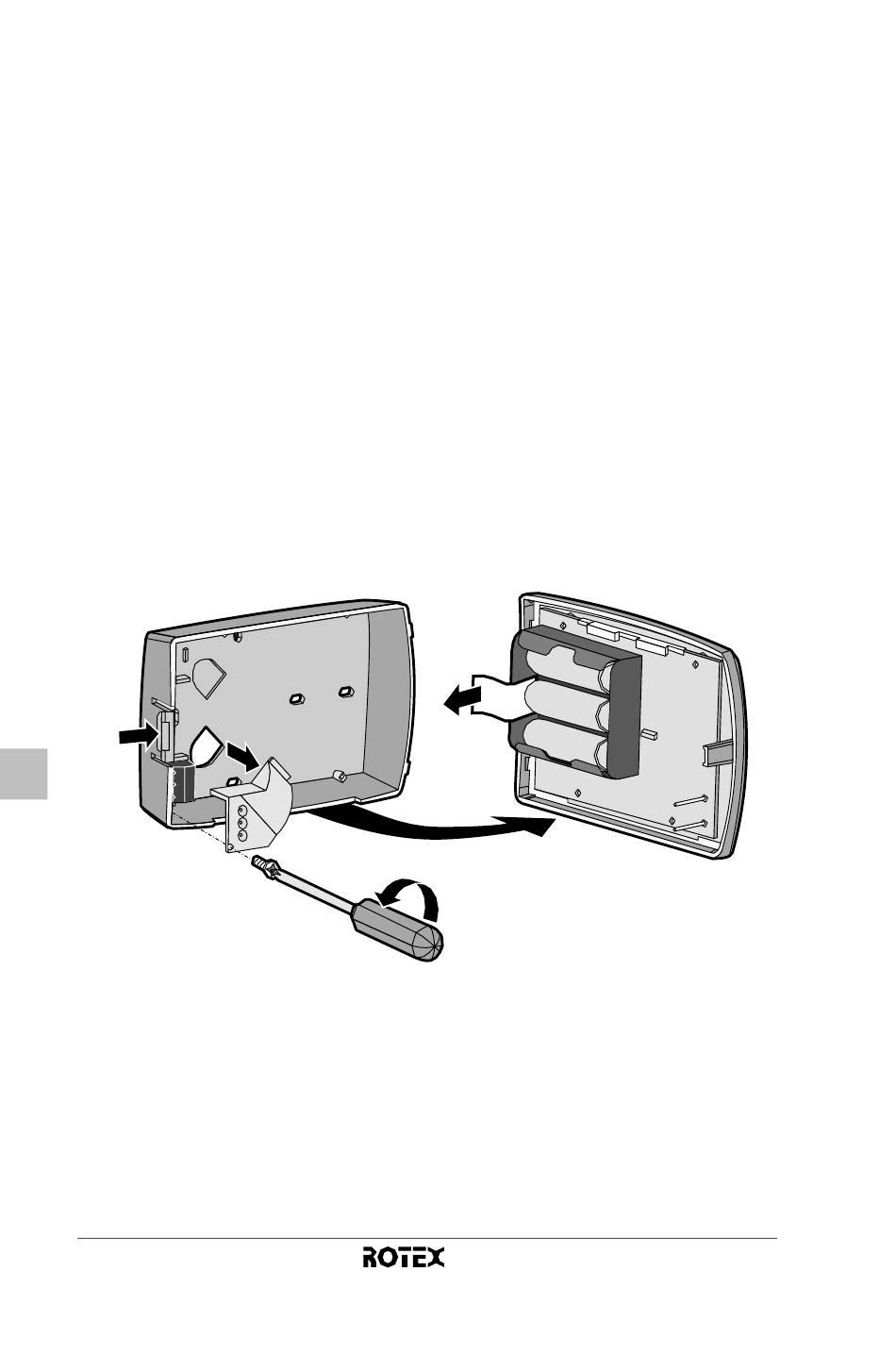

1 At the left of the thermostat, gently push the lid.
2 Remove the front cover by pulling it towards you.
3 Optionally for the EKRTETS, unscrew the screw of the cable
holder in the bottom left corner of the back part of the
thermostat and remove the transparent cable protection.
4 Remove the battery insulator.
1
3
3
5 Drill holes in the wall taking the dimensions of the thermostat
into account and insert the supplied plugs in the holes.
Refer to figure 4 (unit of measurement: mm).
Installation manual
6
4
2
3
RKRTR + EKRTETS
Room thermostat
4PW50084-1
