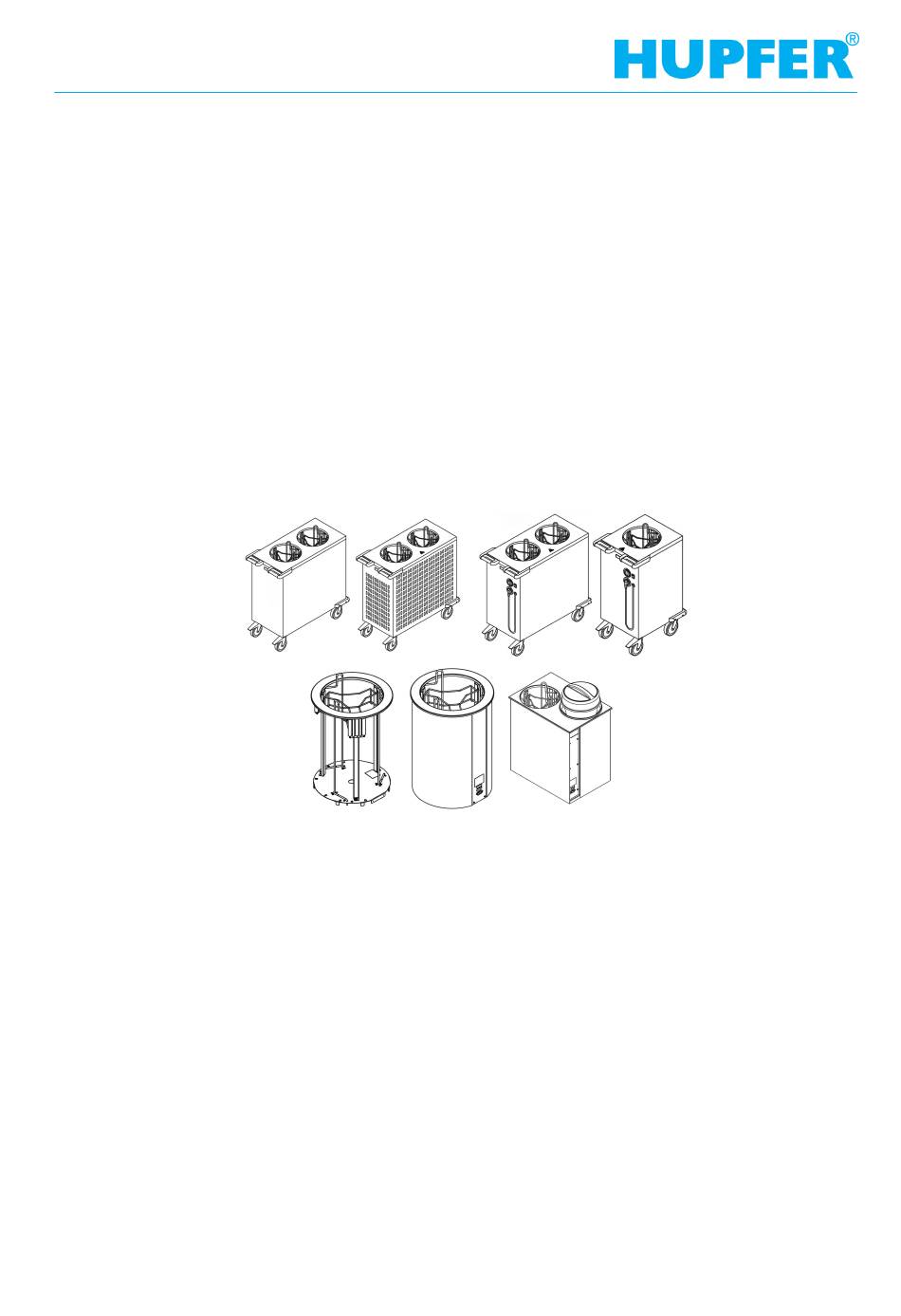

Pagina 1 Betriebsanleitung Tellerstapler TE-2/V19-26 | TE-2/V27-33 | TE-2/VK19-26 | TEH-1/V19-26 | TEH-1/V27-33 | TEH-2/V19-26 | TEH-2/V27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26 | TEUH-2/VS27-33 | TEUH-2/VC19-26 | EBR/V19-26 | EBR/V27-33 | EBRH/V19-26 | EBRH/V27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 2: Einleitung
Ausschlaggebend sind stets die in der Auftragsbestätigung als verbindlich zugesicherten Daten und Gewichte sowie Leistungs- und Funktionsbeschreibung. Handbuchausgabe 4330000_A2 Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 3: Inhoudsopgave
Unbeheizte Geräte (EBR/V19-26 | EBR/V27-33) 4.2.2 Beheizbare Geräte (EBRH/V19-26 | EBRH/V27-33 | EBRH-2/19-26) Inbetriebnahme Lagerung und Verwertung Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 4 Sicherheitsmaßnahmen Hygienemaßnahmen Reinigung und Pflege Spezielle Pflegeanweisungen Ersatzteile und Zubehör Einleitung Ersatzteil- und Zubehörliste Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 5: Einleitung
Schutz gegen Wassereindringung bei zeitweisem Eintauchen Schutz gegen Druckwasser bei dauern- dem Untertauchen Light Emitting Diode Leuchtdiode Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 6: Begriffsdefinitionen
Gefahren bei unsachgemäßem Verhalten unterrichtet und erforderlichenfalls angelernt, sowie über die notwendigen Schutzeinrichtungen und Schutzmaßnahmen belehrt wurde. Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 7: Orientierungshinweise
Mit ’links’ wird die Seite bezeichnet, die von der Vorderseite (vorne) aus gesehen links liegt. Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 8: Hinweise Zur Benutzung Des Handbuches
Zusatzinformation zum jeweiligen Thema gegeben. INFO Kurztitel Enthalten zusätzliche Informationen zur Arbeitserleichterung oder Empfehlun- gen zum jeweiligen Thema. Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 9: Sicherheitshinweise
Den Führungskorb niemals manuell nach unten in die Tellerröhre drücken (z.B. zur Reinigung). Beim Loslassen des Führungskorbs besteht Verletzungsgefahr. Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 10: Sicherheitshinweise Zur Gerätesicherheit
Wenn der Netzstecker mit Wasser in Kontakt gekommen ist, ist dieser vor Einführen in die Steckdose zu trocknen. Lebensgefahr. Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 11: Sicherheitshinweise Zu Reinigung Und Pflege
Wiedereinschalten gesichert werden, wenn keine Spannung für diese Arbeiten erforderlich ist. Dies darf nur von einer Elektro-Fachkraft ausgeführt werden. Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 12: Beschreibung Und Technische Daten
Kunststoffteilen oder Lebensmittel gelagert werden. Schäden aus missbräuchlicher Verwendung führen zum Verlust der Haftung und der Gewährleistungsan- sprüche. Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 13: Gerätebeschreibung
6 Anschlussbuchse für Gerätestecker* Anbindungsleiste mit Einstellfedern 7 Thermostat* Führungsstrebe 8 Abdeckhaube* *nur beheizbare Geräte Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 14: Gerätebeschreibung
Die Artikelnummern des Sonderzubehörs können dem Ersatzteilkatalog und den online erhältlichen Bestell- listen entnommen werden. Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 15: Technische Daten
122 (mit Ab- haube) und 166 (mit Ab- Stapelhöhe) deckhaube) deckhaube) deckhaube) Anzahl der Ge- schirrstapel Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 16 230 V 1N AC 50 230 V 1N AC 50 schluss Anschlusswert Schutzart IPX5 IPX5 IPX5 IPX5 Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 17 230 V 1N AC 50 230 V 1N AC 50 schluss Anschlusswert Schutzart IPX5 IPX5 IPX5 IPX5 Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 18 230 V 1N AC 230 V 1N AC Anschluss 50 Hz 50 Hz 50 Hz Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 19: Typenschild
Kälteleistung Nutzlast Kältemittel Eigengewicht Induktionsfrequenz Seriennummer/Auftragsnummer elektr. Seriennummer Artikel und Kurzbezeichnung elektr. Leistung Hersteller Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 20: Transport, Montage, Inbetriebnahme Und Stilllegung
Einbaugeräte dürfen nur umbaut, bzw. eingebaut (z.B. in einem Schrank) verwendet werden. Abbildung 4 Thekenausschnitt EBR/V19-26 Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 21 Das Gerät von oben in den Thekenausschnitt setzen und fixieren. Abbildung 6 Montageanleitung EBR/V19-26 Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 22: Beheizbare Geräte (Ebrh/V19-26 | Ebrh/V27-33 | Ebrh-2/19-26)
Das Set besteht aus einer Anschlussleitung mit Schuko-Stecker und einer geräteseitigen Anschlussleitung mit Gerätestecker. Die Anschlussleitungen sind durch den Ein-Aus-Schalter mit integrierter Kontrollleuchte verbunden. Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 23 Seite 23 Abbildung 8 Thekenausschnitt EBRH/V19-26 Abbildung 9 Thekenausschnitt EBRH/V27-33 Abbildung 10 Thekenausschnitt EBRH-2/V19-26 Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 24 Temperatur einzustellen.  Das Gerät in den Thekenausschnitt setzen und fixieren. Abbildung 11 Montageanleitung EBRH/V19-26 Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 25 Thermisch isolierende Platten um das Gerät herum anbringen. Das Gerät ist bereit zur Inbetriebnahme. Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 26: Inbetriebnahme
Materialien entsprechend der örtlichen Entsorgungsverordnungen zu trennen und umweltverträglich zu entsorgen. Hierzu ist auf jeden Fall der örtliche Entsorgungsverantwortliche mit einzubeziehen. Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 27: Bedienung
Grundsätzlich muss bei Änderung von mindestens einem der folgenden Geschirrparameter eine Gerätean- passung durchgeführt werden:  Durchmesser  Höhe  Stapelhöhe  Gewicht. Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 28: Einstellung Der Geschirrführung
Nach Beendigung der Gerätebeschickung und vor Beginn des Transportes muss der feste Sitz der Führungsbügel nochmals manuell geprüft werden. Haltebolzen einstellen Abbildung 16 Haltebolzen Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 29: Einstellung Der Federn
Die Federn sind in 5er-Gruppen zu jeweils 1 bis 2 starken Basisfedern (1) und 4 schwächeren Einstellfeder (2) angeordnet. Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 30: Kapazitätsberechnung Für Tellerstapler
Tellerstaplers kann die Kapazität pro Geschirrstapel berechnet wer- den: K: Teile pro Geschirrstapel : Stapelhöhe des Tellerstaplers Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 31: Betrieb
Bei Tellerstaplern mit zwei Tellerröhren kann eine abgenommene Abdeckhaube auf die zweite Abdeckhaube der daneben befindlichen Tellerröhre aufgesetzt werden. Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 32: Gerät Einschalten
Metallmantels zu schmelzen. Es kann daher bei der Wärmeabgabe kein Pha- senübergang fest-flüssig auftreten, womit die Warmhaltefunktion der Warm- halteteile drastisch reduziert ist. Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 33 Geräte müssen stets frei im Raum stehen, damit eine optimale Luftzirkulation durch freie Konvektion in und um die Geräte gewährleistet ist. Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 34: Gerät Bewegen
Netzstecker ziehen und in die vorgesehene Halterung einhängen. Einbaugeräte  Gerät am Ein-Aus-Schalter ausschalten. Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 35: Störungssuche Und Fehlerbeseitigung
Totalfeststeller zeigen keine Wirkung Totalfeststeller abgenutzt Feststellbremse erneuern oder defek- mehr te Rollen austauschen Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 36: Reinigung Und Pflege
Reinigung in einer gewerblichen Geschirrspülmaschine möglich. Es sind für Polycar- bonat geeignete handelsübliche Spül- und Klarspülmittel zu verwenden. Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 37: Spezielle Pflegeanweisungen
Reinigung ausschließlich Edelstahlwolle oder Bürsten mit Natur-, Kunststoff oder Edelstahlborsten. Stahlwolle oder Bürsten mit unlegiertem Stahl führen zu Fremdrost durch Abrieb. Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 38: Ersatzteile Und Zubehör
230V/900W 014040101 Zugfeder Edelstahl 10g 014040102 Zugfeder Edelstahl 5g  19-26cm beschichtet 014318000 Führungskorb Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 39 Zugfeder Edelstahl 10g 014040102 Zugfeder Edelstahl 5g  23-26cm epoliert mit Rollen 014318002 Führungskorb Tellerstapler 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 40 3-poliger britischer Netzstecker nach BS 1363 A für Großbritannien und Hong Kong  3-poliger Schweizer Netzstecker vom Typ 12 - 10 A Tellerstapler TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 41 Operating Instructions Plate dispenser TE-2/V19-26 | TE-2/V27-33 | TE-2/VK19-26 | TEH-1/V19-26 | TEH-1/V27-33 | TEH-2/V19-26 | TEH-2/V27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26 | TEUH-2/VS27-33 | TEUH-2/VC19-26 | EBR/V19-26 | EBR/V27-33 | EBRH/V19-26 | EBRH/V27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 42 The data and weights as well as the description of performance and functions assured in the order confirmation as binding are always decisive. Manual edition 4330000_A2 Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 43 Arrangement and Function of the Operating Elements Plate Dispenser Adjustment 5.2.1 Crockery guide adjustment Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 44 Special Care Instructions Spare Parts and Accessories Introduction Spare Parts and Accessories List Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 45: List Of Abbreviations
Protection against pressurised water during continuous immersion Light Emitting Diode Light diode Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 46: Introduction
Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 47: Orientation Guide
The side named "the left" means the side at the left hand side of the front side (the front). Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 48: Notes On Use Of Manual
Contains additional information on work assisting features or recommenda- tions on the respective subject. Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 49: Safety Instructions
Never push the guide basket down manually into the dispensing tube (e.g. for cleaning). There is a risk of injury, if the guide basket is released. Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 50: Additional Safety Instructions For Heated Appliances
Forceful straining of the connecting cable can lead to damage to the internal line. Risk of fire.  Never pull the mains plug out of the socket by the wire. The standard models of HUPFER® appli- ances are equipped with a Schuko® angle plug. In contrast to a straight Schuko® plug this plug only sticks insignificantly out of the socket and so cannot be damaged by being hit at the side.
Pagina 51: Safety Instructions For Cleaning And Care
This must only be carried out by a certified electrician. Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 52: Description And Technical Data
No liability is assumed and no warranty claims can be submitted for damages caused by improper use. Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 53: Appliance Description
Attachment bar with adjustable springs 7 Thermostat* Guide rail 8 Cover* * heated appliances only Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 54: Optional Accessories
The part numbers of the special accessories can be found in the spare parts catalogue and order lists avail- able online. Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 55: Technical Data
122 (with cover) and 166 (with cover) on the stack height) Number of crockery stacks Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 56 230 V 1N AC 50 Power requirement Protection class IPX5 IPX5 IPX5 IPX5 Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 57 230 V 1N AC 50 Power requirement Protection class IPX5 IPX5 IPX5 IPX5 Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 58 The corresponding test marks can be found on our home page at www.hupfer.de. Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 59: Rating Plate
Serial number/Order number Current serial number Item and brief description Electric power Manufacturer Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 60: Transport, Assembly, Putting Into Operation And Decommissioning
Built-in appliances may only be used after being retrofitted or built-in (e.g. in a cabinet). Figure 4 Worktop cut-out EBR/V19-26 Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 61 Insert the appliance into the worktop cut-out from above and fasten it. Figure 6 Assembly instructions EBR/V19-26 Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 62: Heated Appliances (Ebrh/V19-26 | Ebrh/V27-33 | Ebrh-2/19-26)
The connecting leads are wired up via the on/off switch with an integrated indicator light. Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 63 Worktop cut-out EBRH/V19-26 Figure 9 Worktop cut-out EBRH/V27-33 Figure 10 Worktop cut-out EBRH-2/V19-26 Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 64 Insert the appliance into the worktop cut-out and fasten it. Figure 11 Worktop cut-out EBRH/V19-26 Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 65 Put thermally insulating plates around the appliance. The appliance is ready to be put into operation. Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 66: Putting Into Operation
In any case, the local bodies responsible for disposal are to be involved for this purpose. Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 67: Operation
Basically, the appliance must be adjusted if at least one of the following crockery parameters alters:  Diameter  Height  Stack height  Weight. Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 68: Crockery Guide Adjustment
Adjust retaining bolts Figure 16 Retaining bolts Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 69: Spring Adjustment
5, where 1 to 2 are base springs with higher tension (1) and 4 are adjust- able springs (2) with lower tension. Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 70: Calculating The Plate Dispenser Capacity
K: Items per crockery stack : Stack height of the plate dispenser Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 71 Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 72: Switching On The Appliance
Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 73 Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 74: Moving The Appliance
Built-in appliances  Switch off the appliance with the On / Off switch. Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 75: Fault Detection And Troubleshooting
Total brakes are worn Either renew the locking brakes or action replace the defective casters Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 76: Cleaning And Care
Washing and rinsing agents suitable for polycarbonate should be used. Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 77: Special Care Instructions
Steel wool or brushes with unalloyed steel lead to extraneous rust due to abrasion. Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 78: Spare Parts And Accessories
Stainless steel, 10g 014040102 Tension spring Stainless steel, 5g  19-26cm coated 014318000 Guide basket Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 79  23-26cm electropolished with casters 014318002 Guide basket flat  310/103 transparent 0162200 Cover Plate dispenser 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 80 3-pole British mains plug in accordance with BS 1363 A for Great Britain and Hong Kong  3-pole Swiss mains plug of type 12 - 10 A Plate dispenser TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 81 Manual de instrucciones Apilador de platos TE-2/V19-26 | TE-2/V27-33 | TE-2/VK19-26 | TEH-1/V19-26 | TEH-1/V27-33 | TEH-2/V19-26 | TEH-2/V27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26 | TEUH-2/VS27-33 | TEUH-2/VC19-26 | EBR/V19-26 | EBR/V27-33 | EBRH/V19-26 | EBRH/V27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 82 Versión del manual 4330000_A2 Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 83 Ajuste del apilador de platos 5.2.1 Ajuste de la guía de la vajilla Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 84 Piezas de repuesto y accesorios Introducción Lista de piezas de recambio y de accesorios Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 85 Protección contra el agua a presión en inmersión permanente Light Emitting Diode Diodo luminiscente Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 86: Introducción
Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 87: Indicaciones De Orientación
Con "izquierda" se indica el lado que queda a la izquierda visto desde el lado delantero (delante). Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 88: Indicaciones Para El Uso Del Manual
Contiene información adicional para facilitar el trabajo o recomendaciones sobre el tema correspondiente. Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 89: Instrucciones De Seguridad
El aparato está destinado exclusivamente al transporte manual. No está permitido un transporte ayudado por máquinas. Peligro de accidentes y averías. Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 90: Instrucciones De Seguridad Adicionales Para Aparatos Con Calefacción
 No sacar nunca el enchufe de la caja de enchufe tirando del cable. Los aparatos de HUPFER® están equipados de forma estándar con un conector angular tipo Schuko. Al contrario que los conectores rectos Schuko sobresale este enchufe muy poco de la caja de enchufe por ello no puede dañarse al chocar lateralmente.
Pagina 91: Instrucciones De Seguridad Sobre La Limpieza Y El Cuidado
Ello debe realizarlo únicamente un electricista profesional. Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 92: Descripción Y Datos Técnicos
Los daños originados por utilización inapropiada tienen como consecuencia la pérdida de la responsabilidad por daños y del derecho de garantía. Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 93: Descripción Del Aparato
Regleta de enganche con resortes de ajuste 7 Termostato Tirantes guía 8 Tapa* *sólo para aparatos con calefacción Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 94: Accesorios Opcionales
Pueden tomarse del catálogo de piezas de repuesto los números de los artículos de los accesorios especiales y de las listas de pedido online. Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 95: Datos Técnicos
(con tapa) (dependiendo de la altura de pila) Número de pilas de vajilla Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 96 230 V 1N AC 50 Consumo nom. de corriente Tipo de protección IPX5 IPX5 IPX5 IPX5 Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 97 230 V 1N AC 50 Consumo nom. de corriente Tipo de protección IPX5 IPX5 IPX5 IPX5 Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 98 230 V 1N AC 230 V 1N AC eléctrica 50 Hz 50 Hz 50 Hz Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 99: Placa De Características
Número de serie / número de pedido Número de serie eléctr. Artículo y denominación abreviada Potencia eléctr. Fabricante Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 100: Transporte, Montaje, Puesta En Servicio Y Fuera De Servicio
Los aparatos empotrables pueden usarse solamente montados (por ejemplo en un armario). Figura 4 Recorte del mostrador EBR/V19-26 Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 101 Colocar el aparato desde arriba en el recorte del mostrador y fijarlo. Figura 6 Instrucciones de montaje EBR/V19-26 Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 102: Aparatos Con Calefacción (Ebrh/V19-26 | Ebrh/V27-33 | Ebrh-2/19-26)
Los cables de conexión están unidos por un interruptor de conexión y desconexión con lámpara de control integrada. Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 103 Figura 9 Recorte del mostrador EBRH/V27-33 Figura 10 Recorte del mostrador EBRH-2/V19-26 Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 104 Colocar el aparato en el recorte del mostrador y fijarlo. Figura 11 Instrucciones de montaje EBRH/V19-26 Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 105 Colocar las placas de aislamiento térmico alrededor del aparato. El aparato está listo para poner en funcionamiento. Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 106: Puesta En Funcionamiento
Al respecto debe consultarse con el responsable del desechado de los residuos del lugar. Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 107: Manejo
Al cambiar uno de los siguientes parámetros de la vajilla debe hacerse siempre una adaptación del aparato:  Diámetro  Altura  Altura de apilado  Peso. Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 108: Ajuste Del Apilador De Platos
Ajustar el perno de sujeción Figura 16 Perno de sujeción Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 109: Ajuste De Los Resortes
Los resortes están dispuestos en grupos de 5, respectivamente 1 a 2 resortes fuertes base (1) y 4 resortes de ajuste más flojos (2). Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 110: Cálculo De Capacidad Para Apiladores De Platos
K: Piezas por pila de vajilla : Altura de pila del apilador de platos Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 111 En los apiladores de platos con dos tubos de platos puede colocarse una tapa extraída sobre la segunda tapa del tubo de platos que se encuentra a su lado. Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 112: Servicio
Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 113 Los aparatos deben estar espaciados para poder garantizar la circulación óptima del aire por convección alrededor de los aparatos. Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 114: Mover El Aparato
Aparatos empotrables  Apagar el aparato con el interruptor de conexión y desconexión. Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 115: Búsqueda De Averías Y Eliminación De Fallos
Bloqueo total desgastado Renovar el freno de estacionamiento o cambiar las ruedas averiadas. Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 116: Limpieza Y Cuidado
Se usarán productos de limpieza comerciales normales adecuados para los policarbonatos. Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 117: Instrucciones Especiales De Cuidado
Las lanas de acero o cepillos con acero no aleado producen óxido ajeno por fricción. Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 118: Piezas De Repuesto Y Accesorios
Muelle de tracción Acero inoxidable, 10g 014040102 Muelle de tracción Acero inoxidable, 5g Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 119 014002170-01 Módulo de conex. termostato 0191148605 Casquillo, enchufe ciego 014040228-01 Termostato 30-130 Apilador de platos 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 120 BS 1363 A para Gran Bretaña y Hong Kong  enchufe tripolar suizo del tipo 12 - 10 A Apilador de platos TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 121 Manuel d’utilisation Chariot niveau constant à assiettes TE-2/V19-26 | TE-2/V27-33 | TE-2/VK19-26 | TEH-1/V19-26 | TEH-1/V27-33 | TEH-2/V19-26 | TEH-2/V27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26 | TEUH-2/VS27-33 | TEUH-2/VC19-26 | EBR/V19-26 | EBR/V27-33 | EBRH/V19-26 | EBRH/V27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 122 Version du manuel d’utilisation 4330000_A2 Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 123 Réglage du chariot niveau constant à assiettes 5.2.1 Réglage du guidage de vaisselle Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 124 Pièces de rechange et accessoires Introduction Liste des pièces de rechange et des accessoires Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 125: Index Des Abréviations
Protection contre l’eau sous pression lors d’une immersion prolongée Light Emitting Diode Diode électroluminescente Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 126: Terminologie
échéant et qui a été informée au sujet des dispositifs de sécurité et des mesures de sécurité. Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 127: Indications D'orientation
Par « gauche », on désigne la face qui se trouve à gauche, vue de la face avant. Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 128: Remarques Relatives À L'utilisation Du Manuel
Informations supplémentaires destinées à faciliter le travail ou recommandations relatives au sujet traité. Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 129: Consignes De Sécurité
Il y a danger de blessure lorsqu'on lâche le panier de guidage. Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 130: Consignes De Sécurité Supplémentaires Pour Les Appareils Chauffés
être fortement endommagée ou même être arrachée du mur. Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 131: Indications De Sécurité Concernant Le Nettoyage Et L'entretien
Ces travaux doivent être effectués uniquement par un électricien qualifié. Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 132: Description Et Caractéristiques Techniques
Les dommages dus à une utilisation abusive entraînent l’annulation de la responsabilité et de la garantie. Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 133: Description De L'appareil
Croisillon de guidage 8 Couvercle* * seulement des appareils chauffants Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 134: Accessoires Optionnels
Les numéros d’article des accessoires spéciaux sont disponibles dans le catalogue des pièces de rechange et dans les listes de commande en ligne. Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 135: Caractéristiques Techniques
Nombre de piles de vaisselle Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 136 230 V 1N AC 50 Puissance connectée Indice de protection IPX5 IPX5 IPX5 IPX5 Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 137 230 V 1N AC 50 Puissance connectée Indice de protection IPX5 IPX5 IPX5 IPX5 Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 138 Réglage de la progressif progressif progressif température Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 139: Plaque Signalétique
Numéro de série électrique Article et brève description Puissance électrique Fabricant Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 140: Transport, Montage, Mise En Service Et Mise À L'arrêt Définitif
(par exemple dans une armoire). Illustration 4 Découpe de comptoir EBR/V19-26 Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 141 Placer l'appareil d'en haut dans la découpe de comptoir et le fixer. Illustration 6 Instructions de montage EBR/V19-26 Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 142: Appareils Chauffés (Ebrh/V19-26 | Ebrh/V27-33 | Ebrh-2/19-26)
Les câbles de raccordement sont reliés à l'interrupteur de démarrage / d'arrêt avec témoin intégré. Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 143 Découpe de comptoir EBRH/V27-33 Illustration 10 Découpe de comptoir EBRH-2/V19-26 Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 144 Placer l'appareil dans la découpe de comptoir et le fixer. Illustration 11 Instructions de montage EBRH/V19-26 Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 145 Fixer des plaques thermiques isolantes autour de l'appareil. L'appareil est prêt pour la mise en service. Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 146: Mise En Service
Pour cela, il convient absolument de consulter le responsable local pour l’élimination des déchets. Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 147: Commande
être effectuée :  Diamètre  Hauteur  Hauteur d'empilage  Poids. Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 148: Réglage Du Guidage De Vaisselle
être contrôlée manuellement. Régler les boulons d'assemblage Figure 16 Boulons d'assemblage Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 149: Réglage Des Ressorts
(1) et 4 ressorts d'ajustage plus faibles (2). Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 150: Calcul De Capacité Pour Chariots Niveaux Constants À Assiettes
K : Pièces par pile de vaisselle : Hauteur d'empilage du chariot niveau constant à assiettes Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 151: Fonctionnement
à assiettes se trouvant a côté. Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 152: Démarrer L'appareil
à la température est radicalement réduite. Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 153 Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 154: Bouger L'appareil
Retirer la prise et accrocher le support prévu. Appareils à intégrer  Éteindre l’appareil avec l’interrupteur marche/arrêt. Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 155: Recherche Des Pannes Et Dépannages
Renouveler le frein d'arrêt ou plus leur fonction échanger les rouleaux défectueux Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 156: Nettoyage Et Entretien
Il faut utiliser les produits pour vaisselle et liquides de rinçage d'usage courant appropries pour polycarbonate. Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 157: Instructions De Nettoyage Spéciales
Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 158: Pièces De Rechange Et Accessoires
Acier inoxydable 10g 014040102 Ressort de traction Acier inoxydable 5g Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 159 0191148605 Prise aveugle 014040228-01 Thermostat 30-130°C 014041047-03 Élément chauffant 230V/2000W Chariot niveau constant à assiettes 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 160 Fiche secteur suisse à 3 pôles du type 12 - 10 A Chariot niveau constant à assiettes TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 161 Istruzioni d’uso Carrello elevatore piatti TE-2/V19-26 | TE-2/V27-33 | TE-2/VK19-26 | TEH-1/V19-26 | TEH-1/V27-33 | TEH-2/V19-26 | TEH-2/V27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26 | TEUH-2/VS27-33 | TEUH-2/VC19-26 | EBR/V19-26 | EBR/V27-33 | EBRH/V19-26 | EBRH/V27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 162 Versione del manuale 4330000_A2 Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 163 Disposizione e funzione degli elementi di comando Regolazione del carrello elevatore piatti 5.2.1 Regolazione della guida stoviglie Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 164 Parti di ricambio e accessori Introduzione Elenco delle parti di ricambio e degli accessori Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 165: Indice Delle Sigle
Protetto contro gli effetti della sommersione Light Emitting Diode Diodo luminoso Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 166: Definizione Dei Termini
Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 167: Informazioni Sull'orientamento
Con ‘sinistra’ si definisce il lato che, visto dal lato frontale (davanti), si trova sulla sinistra. Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 168: Avvisi Sull'uso Del Manuale
Contengono informazioni aggiuntive al fine di semplificare il lavoro oppure raccomandazioni sul singolo argomento. Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 169: Avvisi Di Sicurezza
Non spingere mai verso il basso il cestello di guida nel cilindro (p. es. per effettuare la pulizia). Rilasciando il cestello di guida vi é pericolo di lesioni. Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 170: Avvertenze Di Sicurezza Addizionali Per Dispositivi Riscaldati
 Non spostare mai il dispositivo tirando il cavo d’allacciamento. Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 171: Avvisi Di Sicurezza Per Le Operazioni Di Pulizia E Cura
Ciò può essere svolto esclusivamente da un elettricista specializzato. Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 172: Descrizione E Dati Tecnici
I danni risultanti da un uso non conforme alla destinazione prevista comporteranno la perdita di tutti i diritti di garanzia. Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 173: Descrizione Dell'apparecchiatura
7 Termostato* Puntello di guida 8 Coperchio a cupola* *solo apparecchiature riscaldabili Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 174: Accessori Opzionali
Per i numeri degli articoli degli accessori speciali consultare il catalogo dei pezzi di ricambio o le liste d'ordinazione online. Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 175: Dati Tecnici
Numero delle pile delle stoviglie Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 176 Isolamento termico piastrellatura piastrellatura piastrellatura piastrellatura ceramica ceramica ceramica ceramica Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 177 30-115 30-115 30-115 30-115 termostato (˚F) ˚C Temperatura massima delle (˚F) stoviglie Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 178 (con coperchio (con coperchio a cupola) a cupola) a cupola) a cupola) Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 179 Per i rispettivi marchi di controllo visitare la homepage dell’azienda all’indirizzo www.hupfer.de. Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 180: Targhetta D'identificazione
Numero di serie/Numero ordine Numero di serie elettr. Articolo e definizione breve Potenza elettr. Costruttore Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 181: Trasporto, Montaggio, Messa In Funzione E Messa Fuori Servizio
(ad es. in un mobile). Illustrazione 4 Foro banco EBR/V19-26 Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 182 Posizionare e fissare l'apparecchio nel foro del banco da sopra. Illustrazione 6 Istruzioni di montaggio EBR/V19-26 Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 183: Dispositivi Riscaldati (Ebrh/V19-26 | Ebrh/V27-33 | Ebrh-2/19-26)
I cavi di allacciamento sono collegati attraverso il pulsante ON / OFF con una spia integrata. Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 184 Foro banco EBRH/V19-26 Illustrazione9 Foro banco EBRH/V27-33 Illustrazione 10 Foro banco EBRH-2/V19-26 Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 185 Posizionare e fissare l'apparecchio nel foro del banco. Illustrazione 11 Istruzione di montaggio EBRH/V19-26 Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 186 Mettere delle piastre termiche isolanti attorno all'apparecchio. L'apparecchio é pronto per la messa in funzione Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 187: Messa In Funzione
A tal fine consultare in ogni caso il responsabile locale per lo smaltimento di rifiuti. Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 188: Funzionamento
 Diametro  Altezza  Altezza della pila  Peso Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 189: Regolazione Del Carrello Elevatore Piatti
Dopo il carico dell'apparecchio e prima della movimentazione, é necessario controllare manualmente se le staffe sono fisse. Regolazione perni Illustrazione 16 Perni Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 190: Regolazione Delle Molle
1 a 2 molle di base forti (1) e 4 molle di regolazione piú deboli(2). Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 191: Calcolo Della Capacitá Per Carrelli Elevatori Piatti
K: Pezzi per ciascun pila di stoviglie : Quota di pila del carrello elevatore piatti Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 192 Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 193: Esercizio
é ridotta drasticamente. Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 194 Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 195: Movimentazione Dell'apparecchio
Estrarre la spina dalla presa e appenderla nell'alloggiamento predisposto. Apparecchi da incasso  Spegnere il dispositivo usando l'interruttore ON/OFF. Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 196: Ricerca Guasti E Riparazione
Fermi integrali consumati Sostituire il freno di stazionamento o correttamente le rotelle Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 197: Cura E Pulizia
é consentita una pulizia tramite una lavastoviglie di tipo industriale. Utilizzare, per policarbonato, detersivi e brillantante idonei, comuni. Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 198: Indicazioni Particolari Per La Cura
La lana d’acciaio o le spazzole in acciaio non legato sono causa di ruggine per abrasione. Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 199: Parti Di Ricambio E Accessori
Molla di trazione Acciaio inossidabile 10g 014040102 Molla di trazione Acciaio inossidabile 5g Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 200 Plastica 014002170-01 Modulo commutazione del termostato 0191148605 Presa cieca 014040228-01 Termostato 30-130°C Carrello elevatore piatti TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 201 BS1363 A per Gran Bretagna e Hong Kong  Spina tripolare svizzera 12-10 A Carrello elevatore piatti 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 202 Gebruiksaanwijzing Bordenstapelaar TE-2/V19-26 | TE-2/V27-33 | TE-2/VK19-26 | TEH-1/V19-26 | TEH-1/V27-33 | TEH-2/V19-26 | TEH-2/V27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26 | TEUH-2/VS27-33 | TEUH-2/VC19-26 | EBR/V19-26 | EBR/V27-33 | EBRH/V19-26 | EBRH/V27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 203: Inleiding
Doorslaggevend zijn altijd de in de opdrachtbevestiging als bindend gegarandeerde gegevens en gewichten alsmede de prestatie- en functiebeschrijving. Handboekuitgave 4330000_A2 Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 204 Toewijzing en functie van de bedieningselementen Instelling van de bordenstapelaars 5.2.1 Instelling van de serviesgeleiding Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 205 Hygiëne maatregelen Reiniging en onderhoud Speciale verzorgingsaanwijzingen Reserveonderdelen en accessoires Inleiding Reserveonderdeel- en accessoirelijst Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 206: Hoofdstuk
Bescherming tegen water onder druk bij continu onderdompelen Light Emitting Diode Lichtdiode Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 207: Inleiding
Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 208: Oriënteringsaanwijzingen
Met ’links’ wordt de zijde aangeduid, die van de voorzijde (vooraan) uit gezien links ligt. Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 209: Aanwijzingen Voor Het Gebruik Van Het Handboek
Bevatten extra informatie voor het vereenvoudigen van de werkzaamheden of aanbevelingen die betrekking hebben op het onderwerp. Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 210: Veiligheidsaanwijzingen
De basiskorf nooit manueel naar beneden in de bordenstapel drukken (bijv. voor reiniging). Bij het loslaten van de basiskorf bestaat letselgevaar. Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 211: Aanvullende Veiligheidsinstructies Voor Verwarmbare Apparaten
 Het apparaat nooit door trekken aan de aansluitkabel bewegen. Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 212: Veiligheidsaanwijzingen Voor De Reiniging En Het Onderhoud
Dit mag uitsluitend van een elektricien worden uitgevoerd. Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 213: Beschrijving En Technische Gegevens
Schade door niet bedoeld gebruik leiden tot het vervallen van de aansprakelijkheid en de kwaliteitgarantie. Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 214: Apparaatbeschrijving
6 Aansluitbus voor apparaten-stekker* Bevestigingpunt met instelveren 7 Thermostaat* Geleidingssteun 8 Afdekkap* *alleen verwarmbare apparaten Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 215: Optionele Accessoires
De artikelnummers van de speciale accessoires kunt u vinden in de onderdelencatalogus en in de bestellijsten online. Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 216: Technische Gegevens
122 (met afdekkap) en 166 (met afdekkap) van de stapelhoogte) Aantal van de serviesstapels Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 217 230 V 1N AC 50 Hz 230 V 1N AC 50 Aansluitwaarde Beschermklasse IPX5 IPX5 IPX5 IPX5 Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 218 230 V 1N AC 50 230 V 1N AC 50 Aansluitwaarde Beschermklasse IPX5 IPX5 IPX5 IPX5 Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 219 230 V 1N AC 230 V 1N AC aansluiting 50 Hz 50 Hz 50 Hz Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 220: Typeplaatje
Koelmiddel Eigen gewicht Inductiefrequentie Serienummer/opdrachtnummer Elektr. serienummer Artikel en korte benaming Elektr. vermogen Fabrikant Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 221: Transport, Montage, Inbedrijfstelling En Stopzetting
Inbouwapparaten mogen alleen omgebouwd, resp. ingebouwd (bijv. in een kast) worden gebruikt. Afbeelding 4 Balie-uitsparing EBR/V19-26 Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 222: Montage (Uitsluitend Inbouwapparaten)
Het apparaat van boven in de balie-uitsparing plaatsen en fixeren. Afbeelding 6 Montage-instructie EBR/V19-26 Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 223: Verwarmbare Apparaten (Ebrh/V19-26 | Ebrh/V27-33 | Ebrh-2/19-26)
De aansluitleidingen zijn door de aan-/uitschakelaar met geïntegreerd controlelampje verbonden. Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 224 Zijde 23 Afbeelding 8 Balie-uitsparing EBRH/V19-26 Afbeelding 9 Balie-uitsparing EBRH/V27-33 Afbeelding 10 Balie-uitsparing EBRH-2/V19-26 Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 225  Het apparaat in de balie-uitsparing plaatsen en fixeren. Afbeelding 11 Montage-instructie EBRH/V19-26 Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 226 Thermisch geïsoleerde platen om het apparaat heen aanbrengen. Het apparaat is klaar voor de inbedrijfstelling. Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 227: Inbedrijfstelling
Hiertoe moet in ieder geval de plaatselijke afvalverwerkingverantwoordelijke mee worden in betrokken. Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 228: Bediening
In ieder geval moet bij verandering van één van de volgende serviesparameters een wijziging worden doorgevoerd:  Diameter  Hoogte  Stapelhoogte  Gewicht. Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 229: Instelling Van De Serviesgeleiding
Na beëindiging van het beladen van de apparaten en voor begin van het transport moet de vaste zit van de geleidingsbeugels nogmaals manueel worden gecontroleerd. Bevestigingsbout instellen Afbeelding 16 Bevestigingsbout Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 230: Instelling Van De Veren
De veren zijn in groepen van 5 met telkens 1 tot 2 sterke basisveren (1) en 4 zwakkere instelveren (2) ingedeeld. Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 231: Capaciteitsberekening Voor Bordenstapelaar
K: Delen per serviesstapel : Stapelhoogte van de bordenstapelaar Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 232: Bedrijf
Bij bordenstapelaars met twee bordenstapels kan een eraf genomen afdekkap op de tweede afdekkap van ernaast aanwezige bordenstapels worden geplaatst. Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 233: Apparaat Inschakelen
Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 234 De apparaten moeten altijd vrij in de ruimte staan, zodat een optimale luchtcirculatie door vrije convectie in en om de apparaten gegarandeerd is. Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 235: Apparaat Bewegen
De netstekker uit het stopcontact trekken en in de hiervoor bedoelde houder hangen. Inbouwapparaten  Apparaat uitschakelen met de aan-/uitschakelaar. Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 236: Zoeken Naar Storingen En Fouten Verwijdering
Blokkeerremmen functioneren niet Blokkeerremmen versleten Blokkeerremmen vernieuwen of meer defecte rollen vervangen Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 237: Reiniging En Onderhoud
Er moeten voor polycarbonaat geschikte handelsgebruikelijke spoel- en glansspoelmiddel worden gebruikt. Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 238: Speciale Verzorgingsaanwijzingen
Staalwol of borstels met niet gelegeerd staal leiden tot vreemd roest door slijtage. Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 239: Reserveonderdelen En Accessoires
230V/900W 014040101 Trekveer Roestvrijstaal 10g 014040102 Trekveer Roestvrijstaal 5g  19-26cm gecoat 014318000 Basiskorf Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...
Pagina 240 Thermostaat-schakelmodule 0191148605 Loze stekkerbus 014040228-01 Thermostaat 30-130°C 014041047-03 Verwarmingselement 230V/2000W 014040101 Trekveer Roestvrijstaal 10g Bordenstapelaar 4330000_A2 TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26...
Pagina 241 3-polige Engelse netstekker volgens BS 1363 A voor Groot-Brittannië en Hongkong  3-polige Zwitserse netstekker van type 12 - 10 A Bordenstapelaar TE-2/V19-26, 27-33 | TE-2/VK19-26 | TEH-1/V19-26, 27-33 | TEH-2/V19-26, 27-33 | TEUH-1/VS19-26 | TEUH-2/VS19-26, 27-33 | TEUH-2/VC19-26 EBR/V19-26, 27-33 | EBRH/V19-26, 27-33 | EBRH-2/V19-26 4330000_A2...

Deze handleiding is ook geschikt voor:

Te-2/v27-33 Te-2/vk19-26 Teh-1/v19-26 Teh-1/v27-33 Teh-2/v19-26 Teh-2/v27-33 ... Toon alles

Hupfer TE-2/V19-26 Gebruiksaanwijzing

Quick Links

Probleemoplossen

Gerelateerde Handleidingen voor Hupfer TE-2/V19-26

Samenvatting van Inhoud voor Hupfer TE-2/V19-26
