Toro 74456TE Handleiding pagina 50

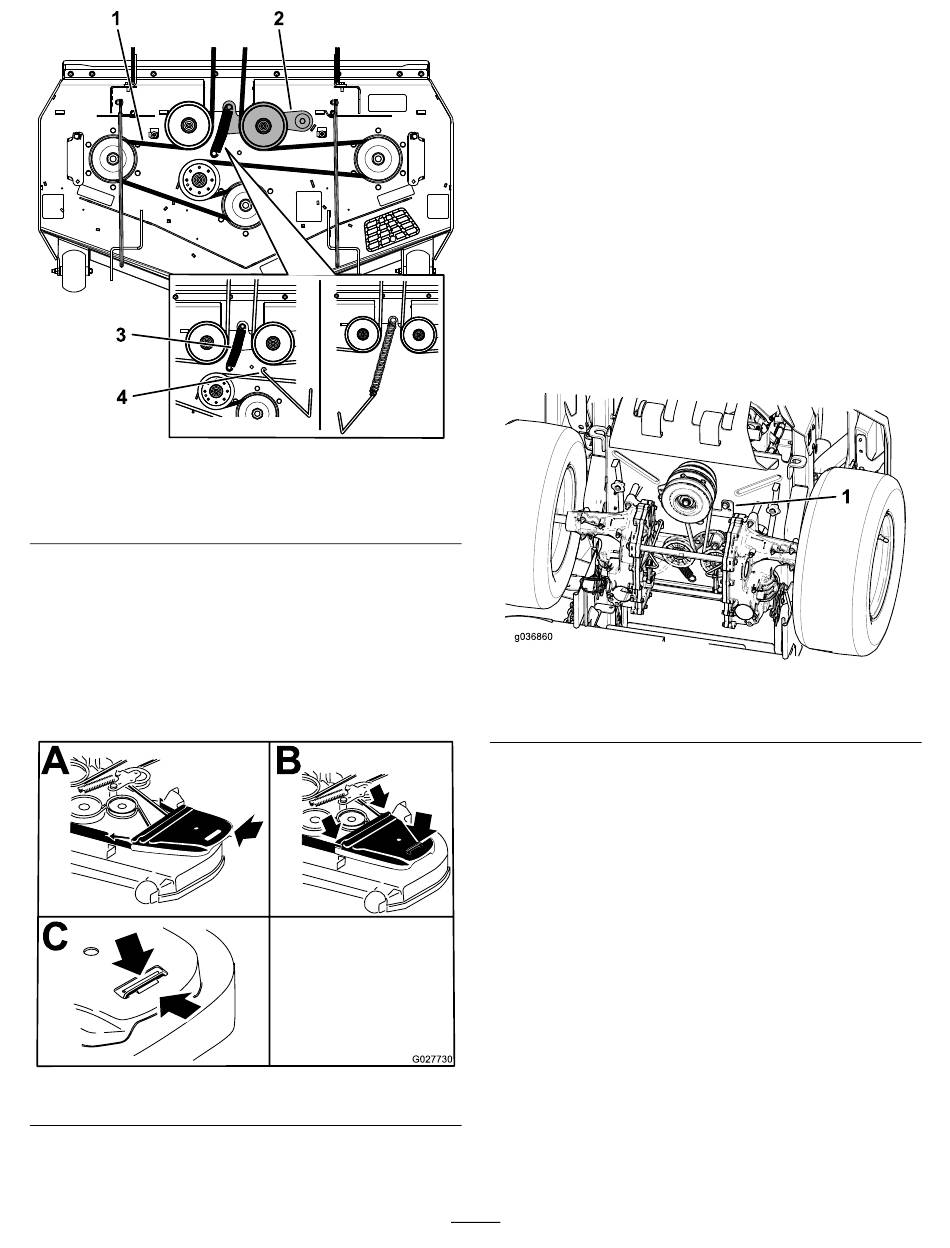

Figure 61
1. Mower belt
2. Idler pulley
7.
Remove the belt from the mower-deck pulley.
8.
Install the new belt around the mower pulleys
(Figure
61).
9.
Install the idler spring to the deck post
61).
10.
Install the belt covers and tighten the bolts
(Figure
62).
Figure 62
g327986
3. Spring
4. Spring-removal tool
(Figure
g027730
Replacing the
Hydraulic-Pump-Drive
Belt
1.
Park the machine on a level surface, disengage
the blade-control switch (PTO), and engage the
parking brake.
2.
Shut off the engine, remove the key, and wait
for all moving parts to stop before leaving the
operating position.
3.
Remove the mower belt; refer to
Mower Belt (page
4.
Raise the machine and support it with jack
stands.
5.
Remove the clutch stop
1. Clutch stop
6.
Remove the idler spring from the post
64).
7.
Remove the existing belt from the
hydraulic-pump-drive pulleys and the
engine pulley.
8.
Install the new belt around the engine pulley and
the 2 hydraulic-pump pulleys
48
Replacing the
47).
(Figure
63).
Figure 63
(Figure
(Figure
64).
g036860
