FWECSA

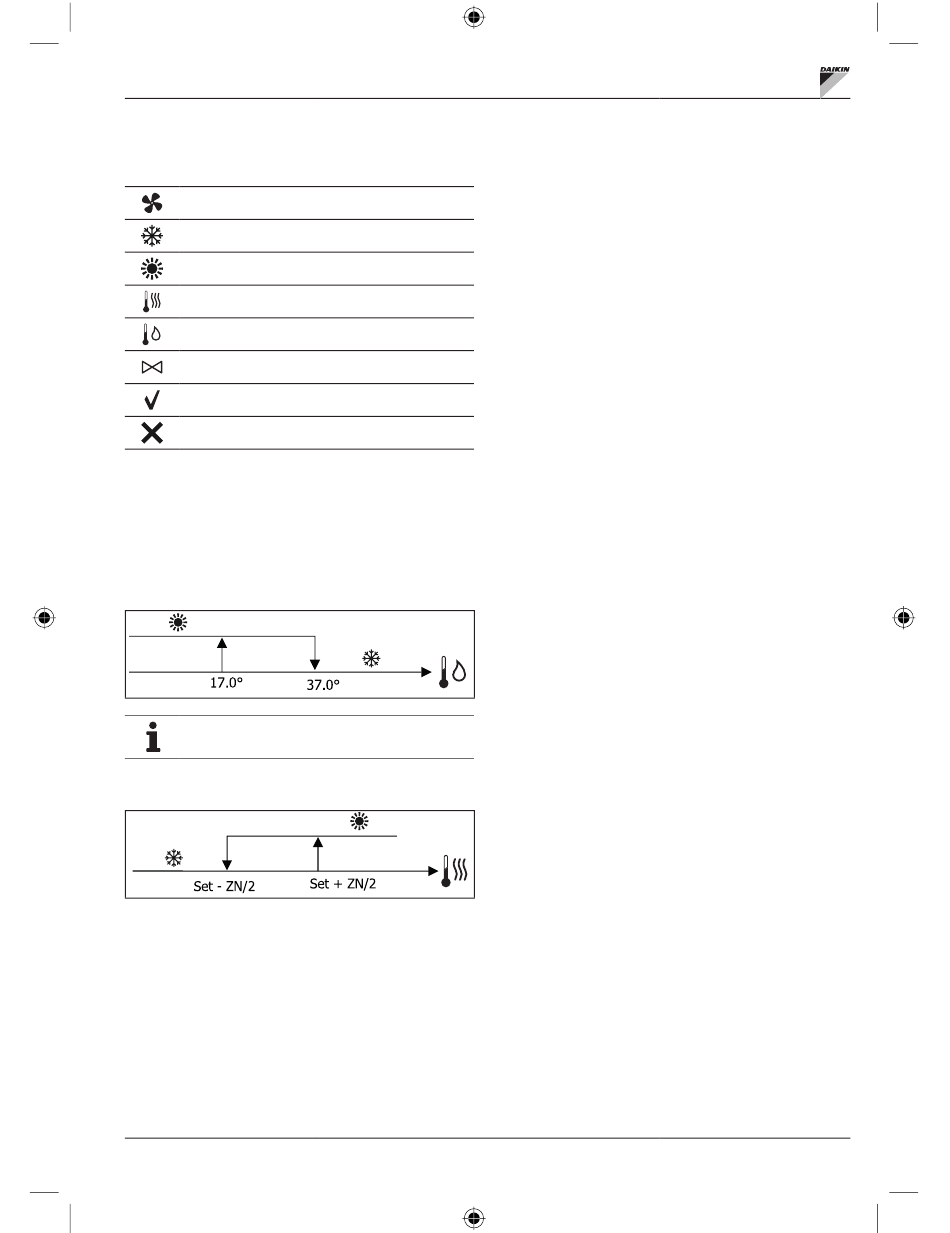

ADJUSTMENT LOGIC
COOLING/HEATING SWITCHING
FAN SPEED
WINTER
SUMMER
AIR TEMPERATURE
WATER TEMPERATURE
OPENING VALVE
YES
NO
There are 4 different and alternative logics to select the
thermostat operating modes, according to the controller
configuration setting:
• Local: chosen by the user pressing the MODE key
• Distance: based on the status of digital input DI1
• depending on the water temperature
In case of a water probe alarm, the mode
control returns temporarily to Local mode.
• depending on the air temperature
Where:
• Set is the temperature set with the arrows
• NZ is the neutral zone
The operating mode of the thermostat is indicated on the
display by the symbols COOLING and HEATING.
FC66003946
Rev 00
All manuals and user guides at all-guides.com
Controller for units
VENTILATION
GENERAL ASPECTS
The control can manage two types of ventilation:
• step ventilation with a set number of selectable speeds
• modulating ventilation with variable speed between 0%
The use of one or the other type of control depends on the
type of ventilator (step or modulating) installed on-board
the machine. Step adjustment itself can follow two different
logics based on the type of valve/s (ON/OFF or modulating).
In brief, the automatic adjustment logics managed by the
controller (and described in detail here below) are as follows:
• step ventilation with 0N/OFF valve (or not installed) and 3
• step ventilation with 0N/OFF valve (or not installed) and 4
• step ventilation with modulating valve and 3 speeds, in
• step ventilation with modulating valve and 4 speeds, in
• modulating ventilation adjustment with ON/OFF valve, in
• modulating ventilation adjustment with modulating valve.
NATURAL CONVECTION
For units with valve, by enabling the parameter from the
configuration menu, ventilation for heating is delayed by
0.5°C to allow for an initial natural convection phase.
STEP VENTILATION
Use the UP/DOWN keys to choose from the following
speeds:
• Automatic SPD.:depending on set temperature and
• Extra-low spd: can only be selected if the unit is 4
• Low SPEED
• Medium SPD.
• High SPD.
USER MANUAL
It is strictly forbidden to reproduce this manual, even partially
(3 or 4);
and 100%
speeds, in cooling and heating mode;
speeds, in summer and winter mode;
summer and winter mode;
summer and winter mode;
summer and winter mode;
room air temperature;
speeds
EN
