SOMFY HOME MOTION V200 RTS Handleiding pagina 27

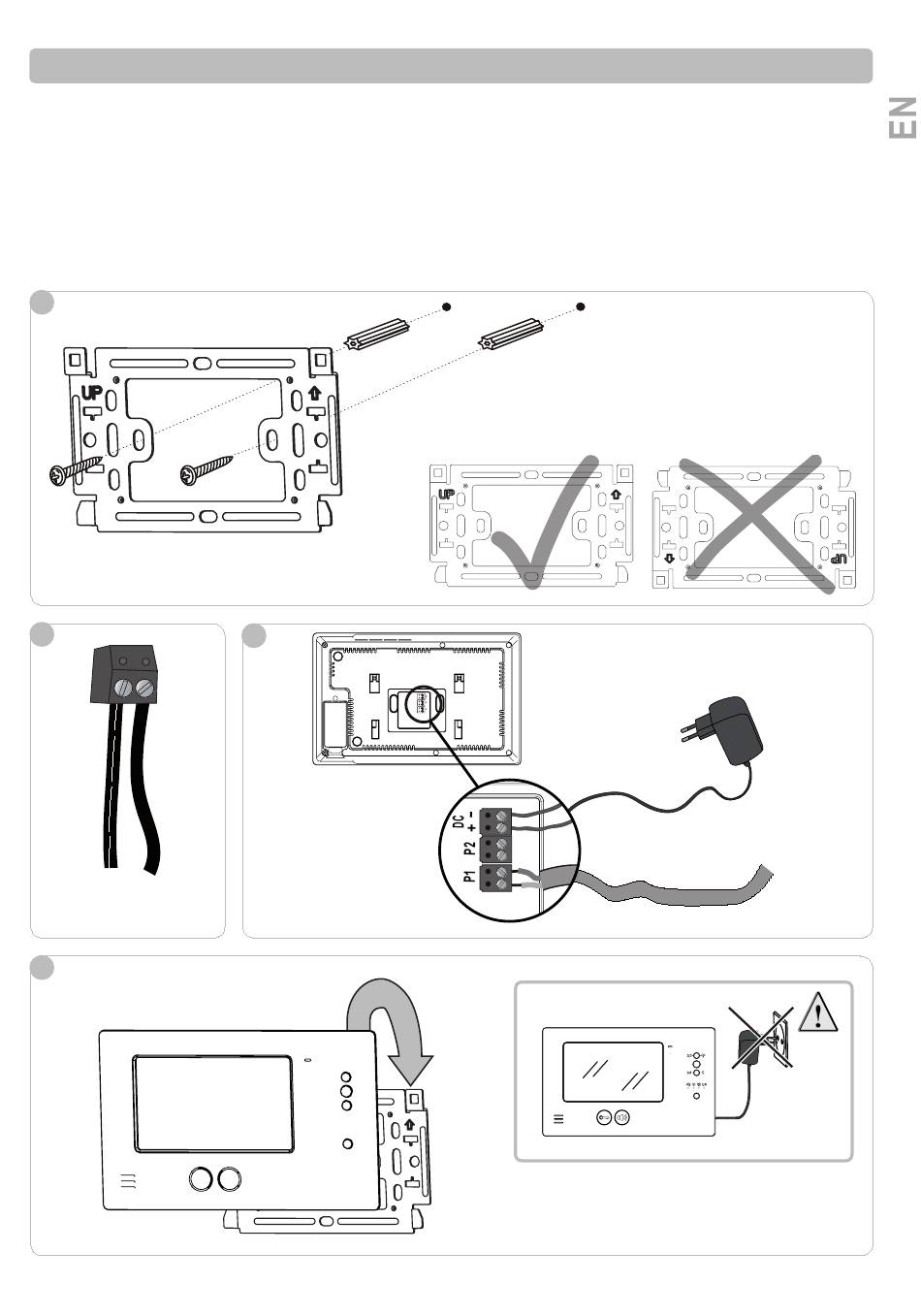

INstallINg thE moNItor
[1]. Fix the monitor mounting plate to the wall.
Important: Respect the "up" direction of fitting indicated on the plate.
[2]. Connect the power plug cable to the DC connector on the monitor: black wire with white lines on the left (+) and black wire on the right (-).
Note: The connector is pre-fitted to the rear of the monitor, remove it to carry out this wiring operation.
[3]. Connect the power plug connector to the rear of the monitor in the direction indicated in the illustration (screw to the right); the
direction in which the wires are connected to the power plug is important.
Prepare the monitor for connection to the door station by connecting a 2-wire cable to connector P1 at the rear of the monitor. The direction
in which the wires are connected is not important.
[4]. Clip the monitor onto the mounting bracket.
1
2
-
+
power plug wires
4
Copyright © 2011 Somfy SAS. All rights reserved.
All manuals and user guides at all-guides.com
3
monitor
2-wire colour video entry phone - V200 RTS
to the door
station
STOP
7
