Hkoenig axo700 Gebruiksaanwijzing pagina 7
Attached list
A set of hose accessories, one extendible tube, one floor brush, one integrated brush & nozzle

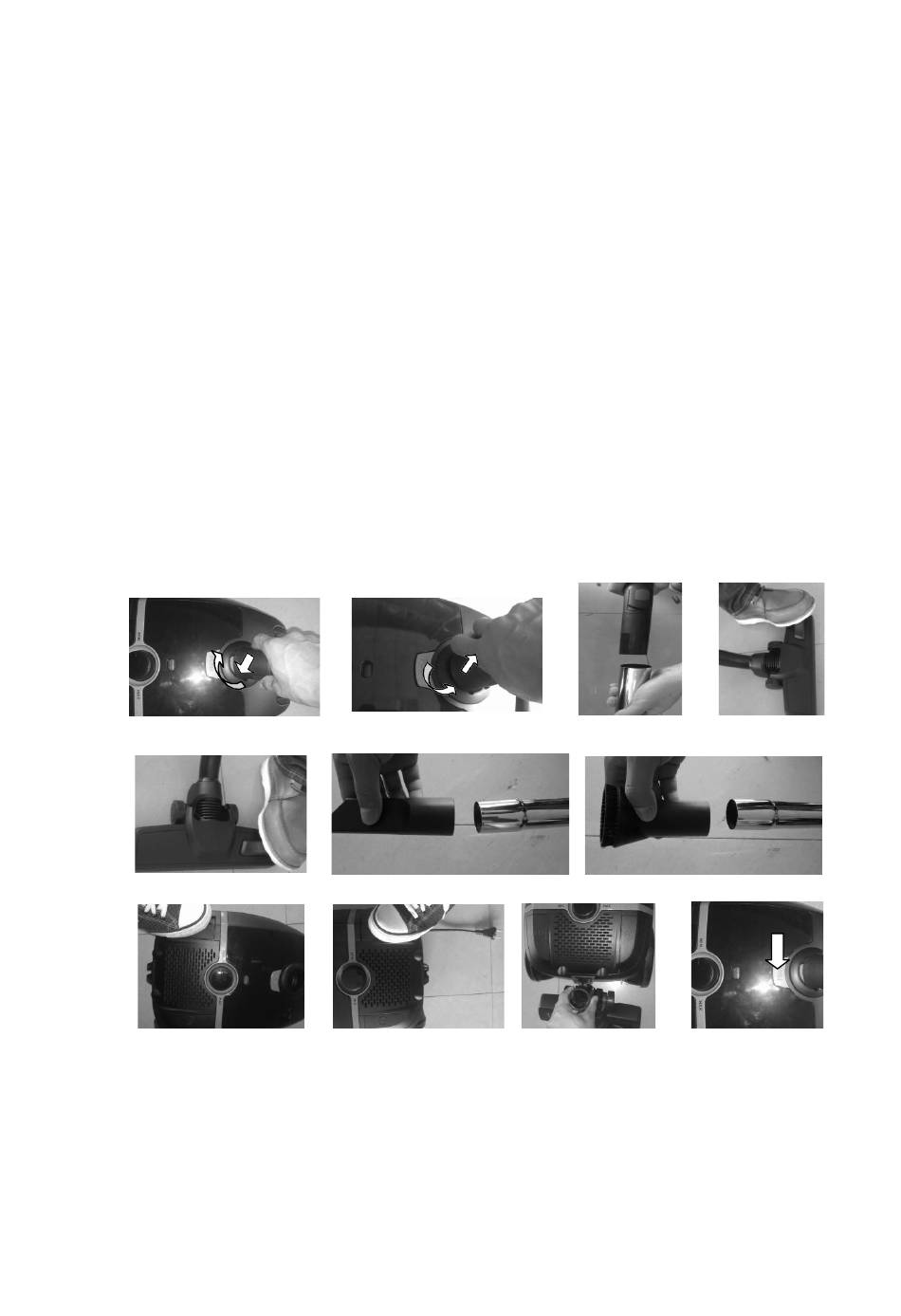

Operation methods
1.
Connects the hose accessories: insert the hose end into the hose socket at the front cover and
then hook it. (Fig1)
Remove the hose accessories: press the adaptors at both side of the hose end and then pull the hose
accessories. (Fig2)
2.
Connect the metal expansion tube to the curves end of the hose. (Fig3)
3.
Connect different nozzle tools to the tube for different cleaning purpose: floor brush (adjusted
to the type of ground) for carpet or floor (Fig4,5); combined brush & nozzle for sofa, wall surface, curtain,
corner or space between furniture and etc. (Fig6,7)
4.
Turn on the machine: insert the plug of cord into the power socket which conform to that on the
label for power supply, and press the switch pedal, the machine could start working (Fig8).
5.
Cord rewinding: hold the plug and pull out the cord; press the cord rewinding pedal, that power
cord will be drawn in.(Fig9)
6.
The floor brush or nozzle can insert the brush hanger in the back of back cover when it is out
of use. (Fig10)
7.
Press the "PUSH" button to open the accessory cover. (Fig 11)
1
5
8
2
6
9
3
7
10
4
11
