Bediening

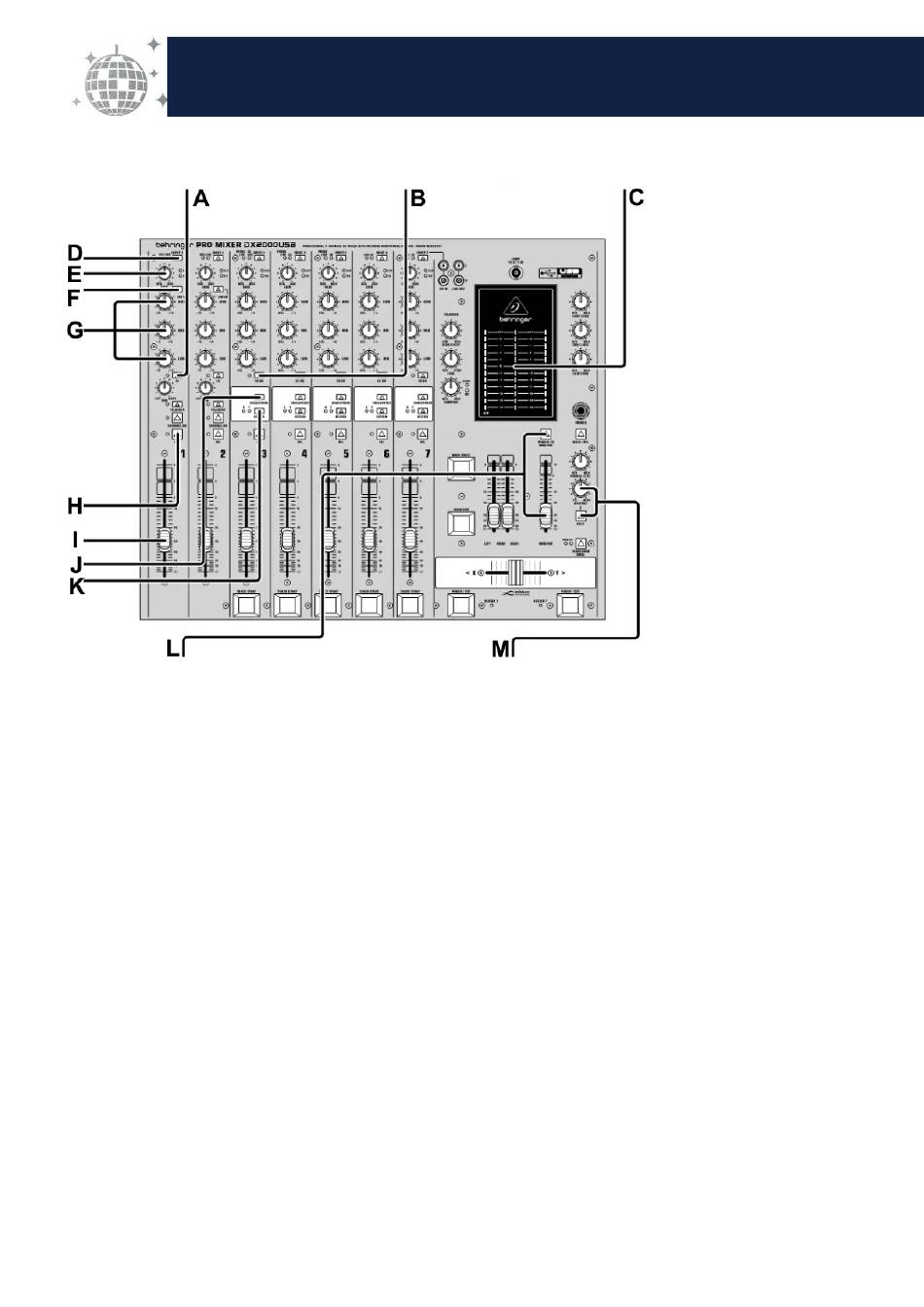

A. FX button routes the channel to the FX SEND and RETURN loop for adding
external effects.
B. EQ ON button engages the 3-band equalization knobs.
C. LEVEL METER displays the left and right MAIN signal as well as the PFL signal
level.
D. INPUT button selects the channel's audio source.
E. GAIN knob adjusts the input signal level.
F. LOW CUT button removes unwanted low frequencies from the channel.
G. EQ knobs adjusts the high, mid, and low frequencies of the channel by -32 dB or
up to +12 dB.
H. PFL button sends the channel to the PFL bus for headphone monitoring.
I. CHANNEL fader adjusts the channel volume.
J. CROSSFADER button sends the channel to the X/Y CROSSFADER.
K. ASSIGN button selects whether an active channel appears in the X or Y side of
the X/Y CROSSFADER.
L. MONITOR fader adjusts the output of the MONITOR OUTPUTS on the rear
panel. Press the PHONES TO MONITOR button to send the headphone mix to
the MONITOR OUTPUTS.
M. BALANCE knob adjusts the blend of PFL and main signals in the headphone.
Press the SPLIT button to activate the BALANCE knob and deactivate the
MAIN/PFL function.
