Configureren niveaumeting

 10

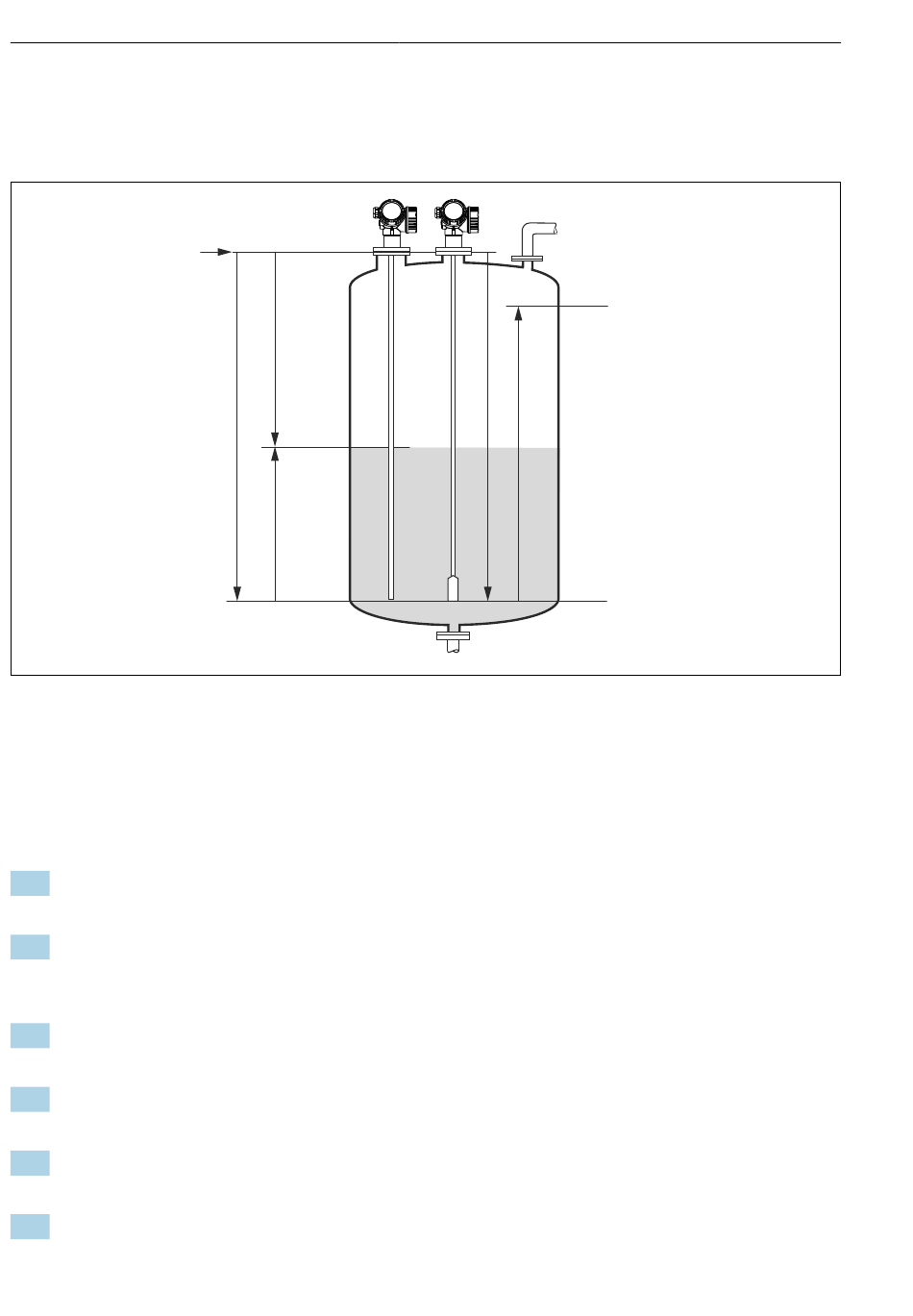

Configuratieparameters voor niveaumeting in vloeistof
LN = sondelengte
D = Afstand
L = Niveau
1.
Setup → Instrument-tag
 Voer instrumentidentificatie in.
2.
Setup→ Instrumentadres
 Voer het busadres van het instrument in (alleen indien het adres via de software is
ingesteld).
3.
Setup → Afstandseenheid
 Kies de lengte-eenheid.
4.
Setup → Tank type
 Kies tanktype .
5.
Setup → Buisdiameter (alleen voor "Tank type" = "Bypass / stilling well")
 Specificeer de diameter van de bypass of stilling well.
6.
Setup → Medium groep
 Specificeer de mediumgroep (Andere of Water gebaseerd (DC >=4))
22
R
D
LN
L
R = referentiepunt van de meting
E = Leeginregeling (= nulpunt)
F = Inregeling vol (= meetgebied)
Levelflex FMP53 PROFIBUS PA
20 mA
100%
E
F
4 mA
0%
A0011360
