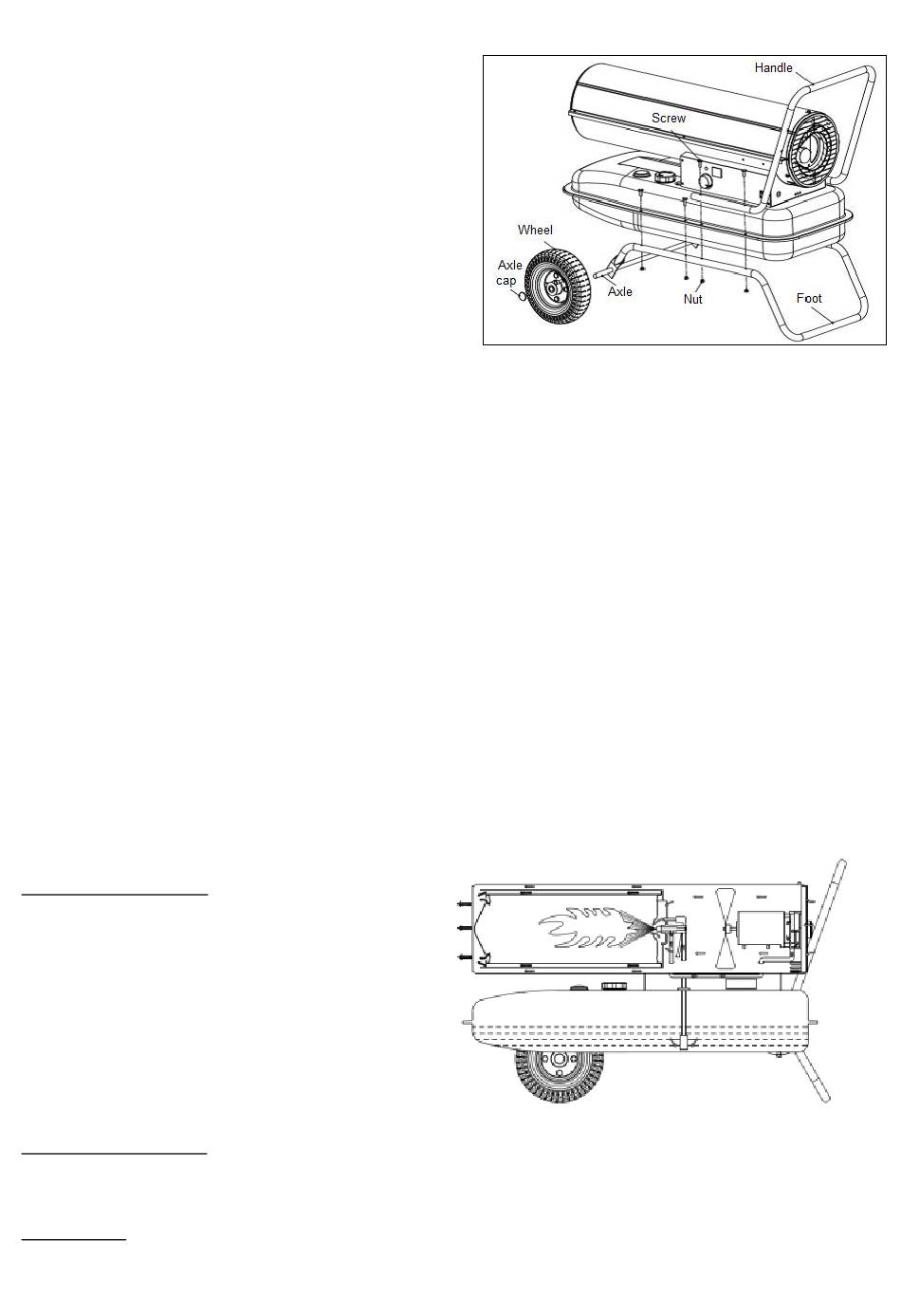

Assembly
1. Put the foot to the fuel tank holes. Insert
screws in the holes and tighten screws
securely with screwdriver.
2. Insert the axe to the wheel supports hole,
insert wheels, put on axe cap.
3. Put the handle and foot to the fuel tank
holes. Insert screws in the holes and tighten
screws securely with screwdriver, see fig.
Fuel
Fireball heaters work with paraffin or diesel; paraffin gives the cleanest combustion. Be
aware that the more dust and dirt that is contained in the fuel, the more ventilation will be
required! Use the cleanest fuel possible.
Note: paraffin may only be stored in blue containers; red containers are associated with
petrol!
NEVER use other fuels such as petrol, alcohol, oil compounds or similar in this heater;
this could lead to fire or explosion!
NEVER store paraffin in direct sunlight of near a source of heat.
Do not store paraffin in living/work areas but in a well-ventilated area such as a shed,
storage area or similar.
NEVER use paraffin from the previous season. Paraffin deteriorates in quality and will
not burn properly as a result.
If you can, use 1-K paraffin in this heater. Other premium quality paraffin may also be
used.
Working principle
Fuel system Fireball: The heater is fitted
with an electric air pump that pushes air
through the air pipes along the fuel inlet
and forces the fuel from the tank into the
fuel nozzle. This mixture of fuel and air is
then sprayed into the combustion
chamber as a fine mist.
Ignition mechanism: The electronic ignition creates a charge on an electrode/sparkplug.
This uses a spark to the mixture of fuel and air.
Air system: The heavy motor drives a ventilator that sends air into and around the
combustion chamber. The air is then heated up and driven out of the front of the heater.
38
