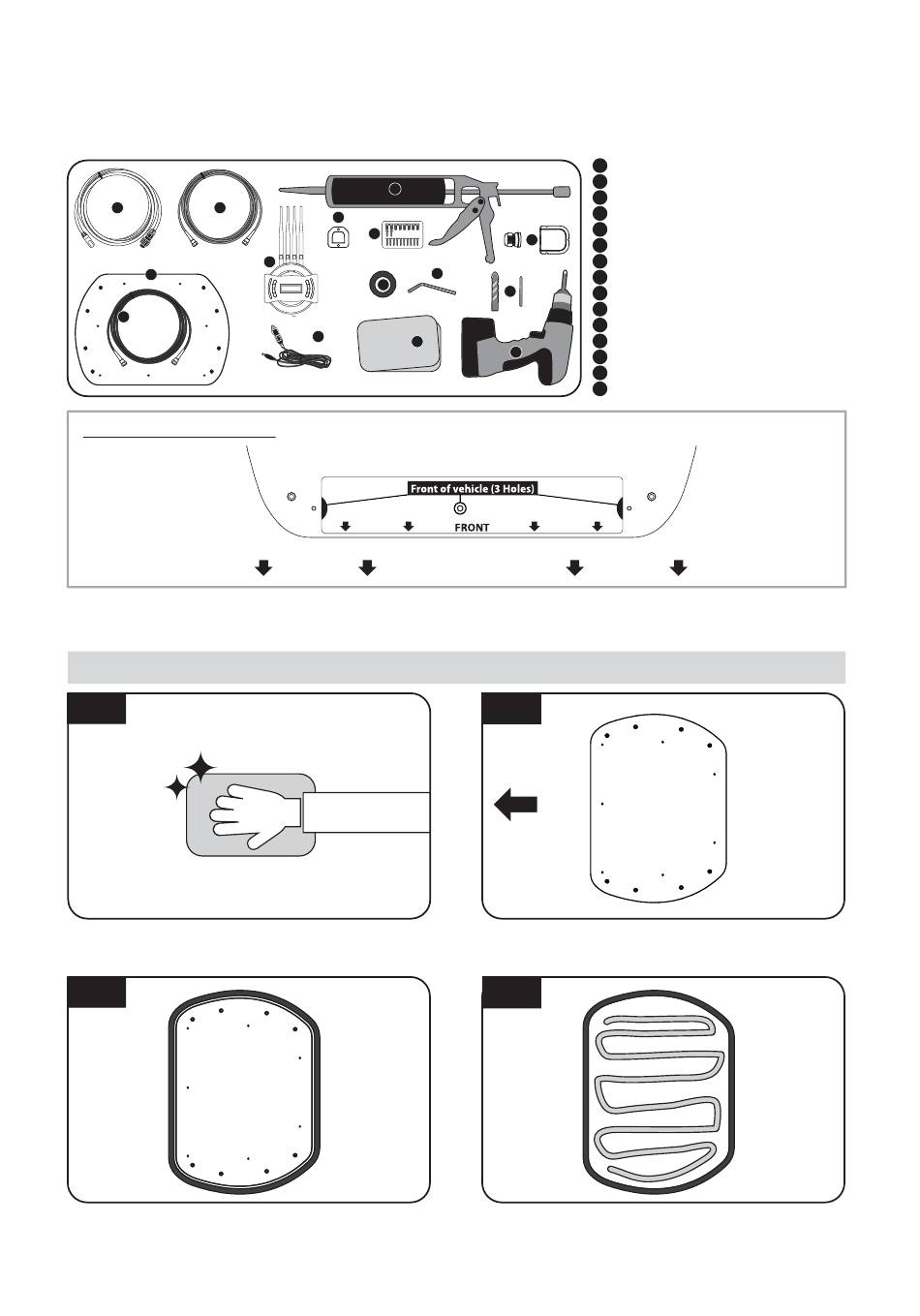

9-2. Equipment for installation
2
3
10
6
※ Mounting plate direction
9-3. Instruction for installation
A. Mounting plate installation on a vehicle roof
A-1
Clean the surface with cleaner
A-3
Attach masking tape outside of the mounting
plate by 5 mm away from the plate edges
1
5
9
7
4
8
11
12
Driving direction
ENGLISH - 18
1
Silicone
2
SAT>IP LAN cable
3
Receiver cables
4
Allen wrench
5
Controller bracket
15
6
Controller cable
7
Controller
8
Masking tape
14
9
M6 × 15(8) , M4 × 16(2) , M4 ×20(10)
10
Mounting plate
11
Cigarette lighter adaptor (Power input cable)
12
Cleaner
13
13
Power drill
14
2 mm drill bit, over 20 mm drill bit
15
Cable holder & gland
A-2
FRONT
Locate mounting plate in the center of the
vehicle roof
A-4
Put aside the mounting plate to apply silicone
within the attached tape line but leave 2 cm
inward gap from the line
