Assembly
4

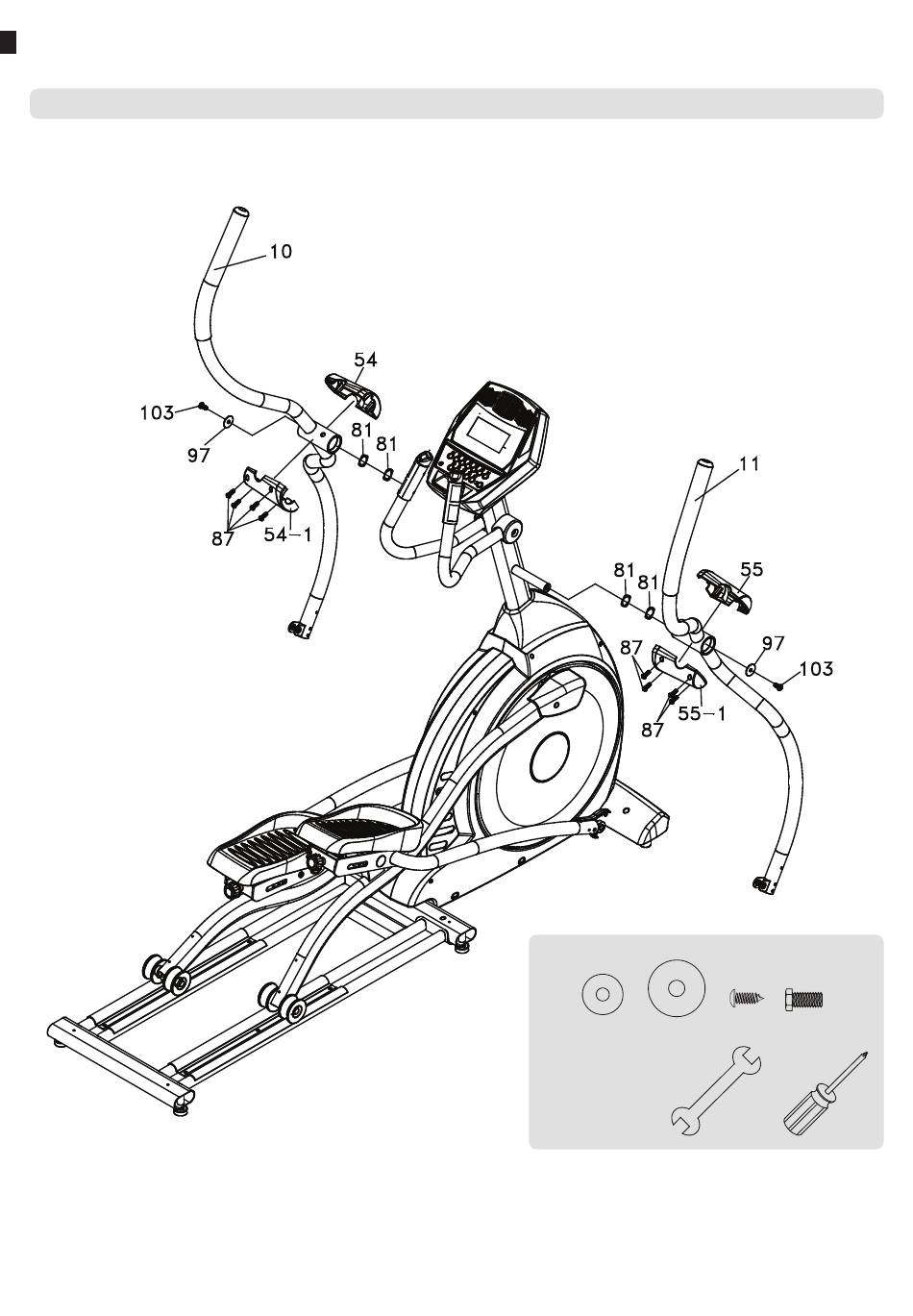

3. Assemble the movable arms
Before placing the movable arms (10 & 11) onto the console post, the curved washers (81) need to be placed onto the axles at both sides of the console
posts. When the curved washer are into place the moveable arms can be placed and fastened as displayed in the illustration below. At last the covers (54 &
55) can be assembled onto the arm axles.
40 - Flow Fitness PERFORM X4 - User Manual
Stap 1
76 2x
Stap 2
Stap 3
Stap 4
84 4x
105 2x
61 4x
66 4x
96 1x
84 2x
103 2x
81 4x
97 2x
87 8x
87 8x
71 2x
80 2x
104 2x
60 2x
60 1x
103 2x
105 14x
