Install the battery in the machine and connect
the battery cables; refer to
(page
44).
Note:
Do not run the machine with the battery
disconnected; electrical damage may occur.

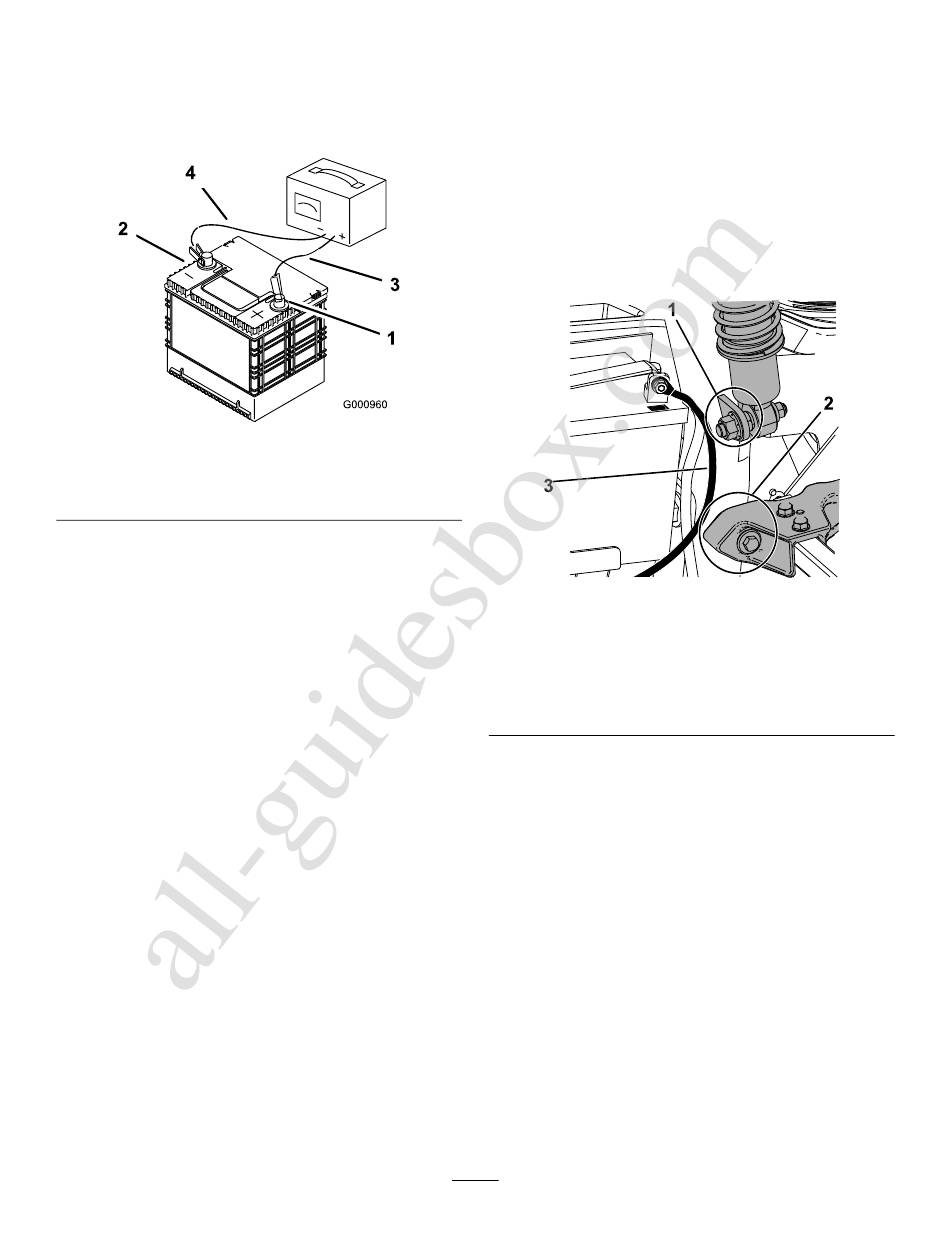

Figure 51
1. Positive (+) battery post
2. Negative (–) battery post
All manuals and user guides at all-guidesbox.com
Installing the Battery
g000960
3. Red (+) charger lead
4. Black (–) charger lead
Installing the Battery
1.
Position the battery in the tray with the terminal
posts opposite from the hydraulic tank
50).
2.
Install the positive (red) battery cable to the
positive (+) battery terminal.
3.
Install the negative (black) battery cable and
ground wire to the negative (-) battery terminal.
Note:
For MyRide machines, ensure that the
ground cable does not rub against the trailing
arm or lower shock mount
1. Ensure that the ground
cable does not rub against
the lower shock mount.
2. Ensure that the ground
cable does not rub against
the trailing arm.
4.
Secure the cables with 2 bolts, 2 washers, and
2 locknuts
(Figure
5.
Slide the red terminal boot onto the positive (+)
battery terminal.
6.
Secure the battery with the rubber strap
50).
44
(Figure
(Figure
53).
Figure 52
3. Ground cable
50).
(Figure
g236732
