Electric Power Generation

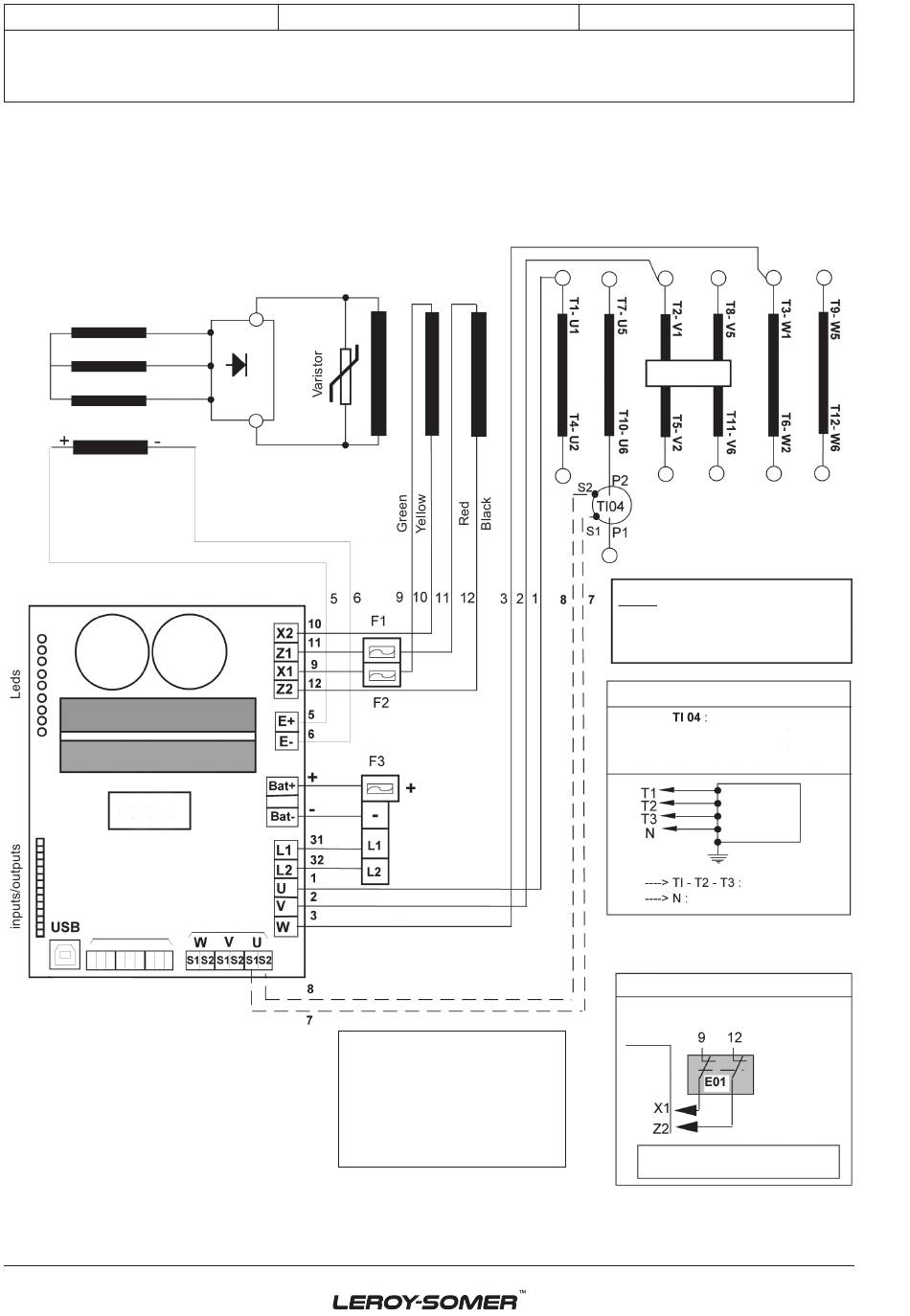

4 - SCHAKELSCHEMA'S
EXCITER
Armature
Exciter field
white or red (LSA 50.2)
D 510C
Leaflet n° 4243
Temp. sensors
PT100
or CTP
Waarschuwing: de secundaire
zijde van de stroomtransformator
mag niet worden aangesloten op
de aarde.
48
Installatie en onderhoud
Digitale spanningsregelaar
Digital AVR D510 C
Terminal block with fuses
MAIN FIELD
Rotating rectifiers
blue or black (LSA 50.2)
CT
FUSES:
F1, F2 : Ref. Mersen : E084414P -
MI6SA25V10/50 or equivalent
250VAC/10A
F3 : Ref. Mersen : A217028Q -
GDL1 or equivalent
250VAC/1A
D510 C
Auxiliary
windings
Supply:
11V to
30V DC
MAINS
if 3F used
4243 nl -
2019.02 / p
STATOR
NOTE:
6 leads alternator - marking T1 to T6
TI 04 -- > T4
OPTIONAL
// CT
TI04 on phase U is required for
droop compensation,
PF and KVAR functions
R 791
white
black
blue
DESENERGIZING
Auxiliary windings
open E 01
D510C
CONTACTS NOT SUPPLIED BY LS
