Mounting the Keypad
Mount the keypad on the wall using the supplied mounting bracket.
NOTE: Before mounting the keypad test the keypad communication with the system.

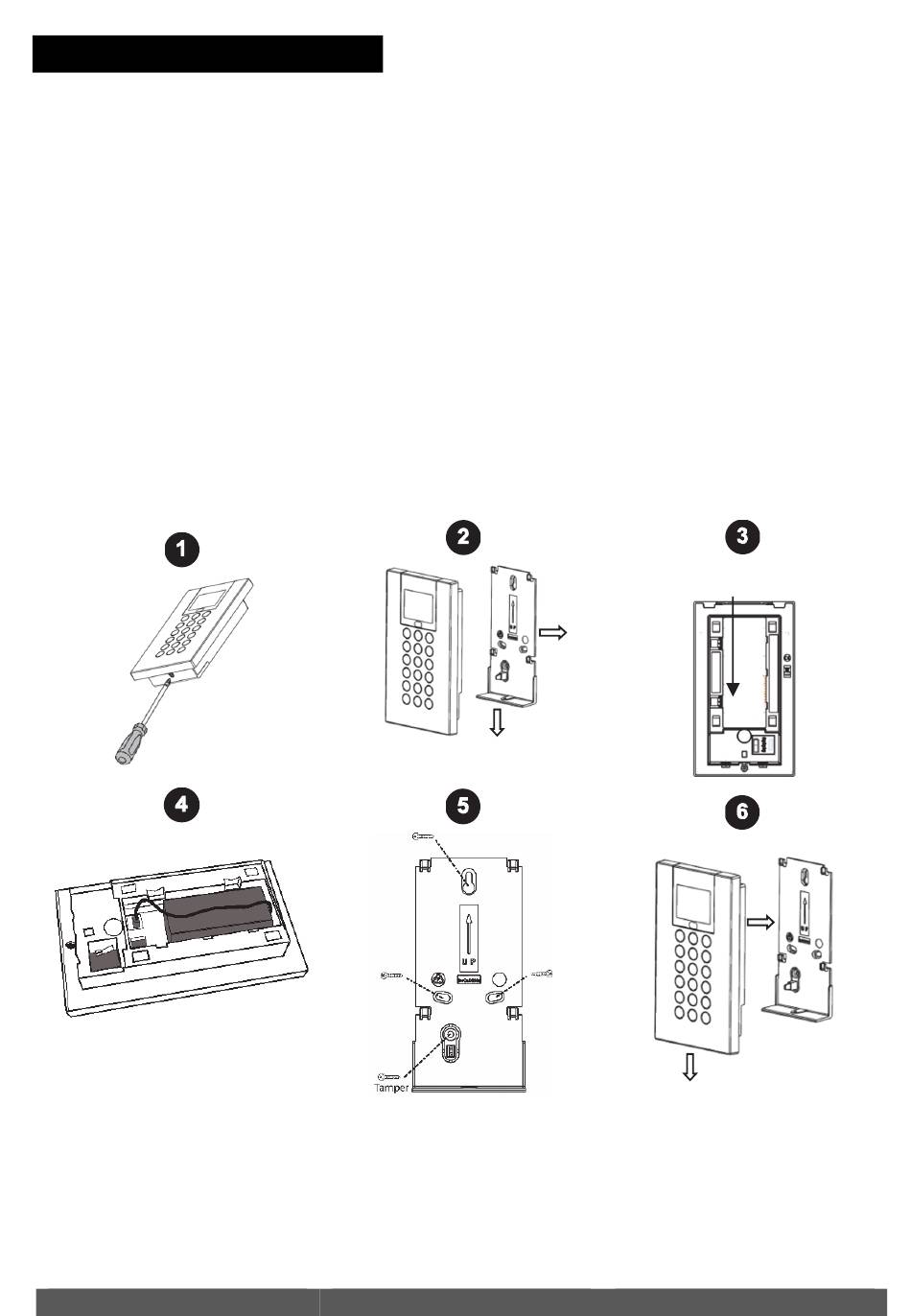

1.
Remove the fastening screw that secures the mounting bracket to the keypad (see
Figure 1).
2.
Separate the mounting bracket from the keypad (see Figure 2).
3.
Release battery cover from the keypad's battery compartment (see Figure 3).
4.
Attach the battery cable to the battery connector (see Figure 4), insert the batteries (while
paying attention to the polarity of the batteries) and close the battery compartment.
5.
Allocate the Keypad to the Receiver (see Communication Setup).
6.
Using the mounting holes as a template secure the mounting bracket to the wall (see
Figure 5).
7.
Mount the keypad to the mounting bracket and insert the fastening screw to lock the
keypad (see Figures 6 and 1).
01/2019
Page 5
Battery Compartment
Cover (back side)
5IN2812
