INDOOR UNIT INSTALLATION

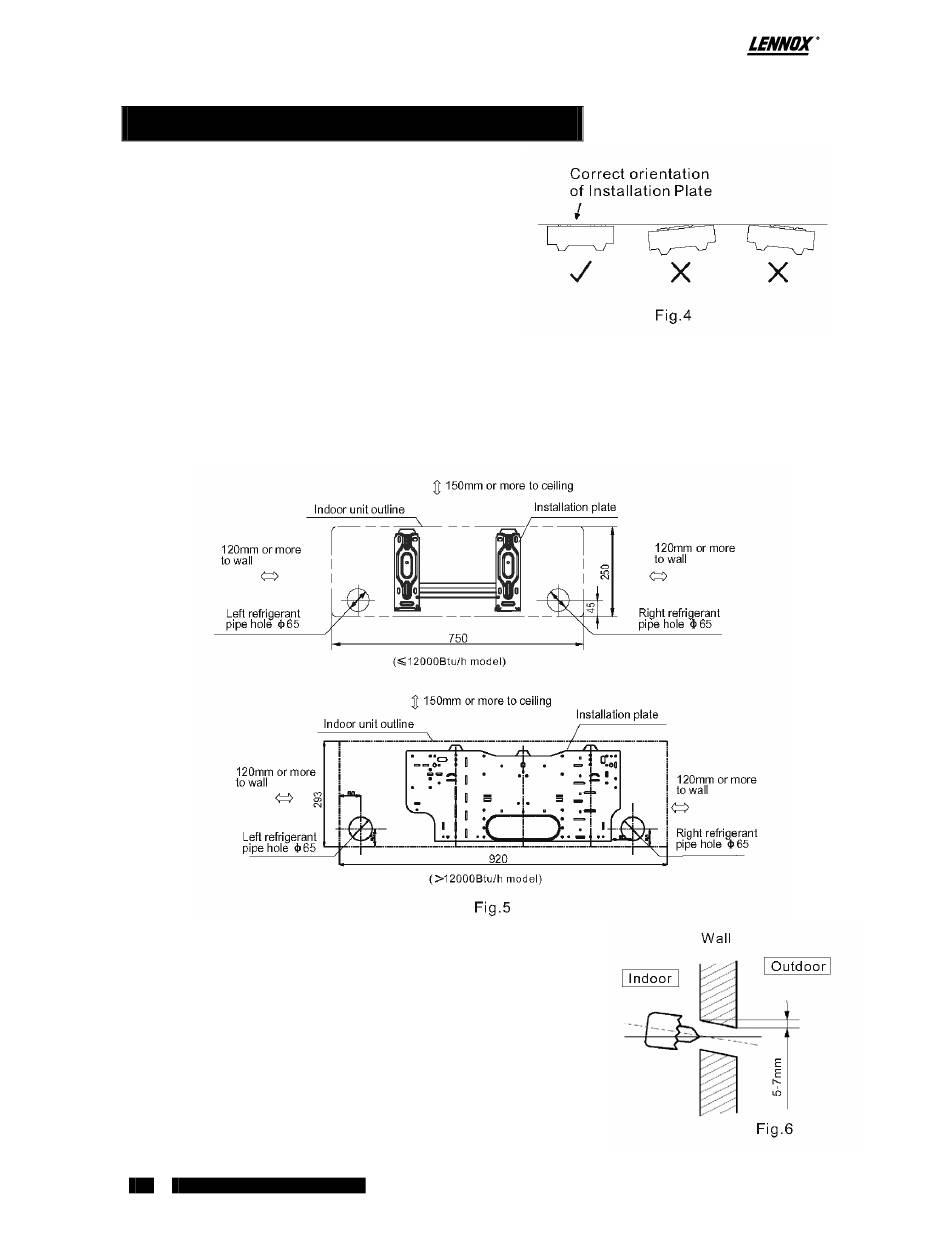

1. Fit the Installation Plate
1. Fit the installation plate horizontally on
structural parts of the wall with spaces
around the installation plate.
2. If the wall is made of brick, concrete or the
like, drill eight (8) 5mm diameter holes in
the wall. Insert Clip anchor for appropriate
mounting screws.
3. Fit the installation plate on the wall with eight (8) type "A" screws.
Note:
Fit the Installation Plate and drill holes in the wall according to the wall structure and
corresponding mounting points on the installation plate.
(Dimensions are in "mm" unless otherwise stated).
2. Drill a hole in the wall
1. Determine hole positions according to the diagram
detailed in Fig.5. Drill one (1) hole (Φ 65mm) slanting
slightly to outdoor side.
2. Always use wall hole conduit when drilling metal grid,
metal plate or the like.
5
