3.
INSTALLATION

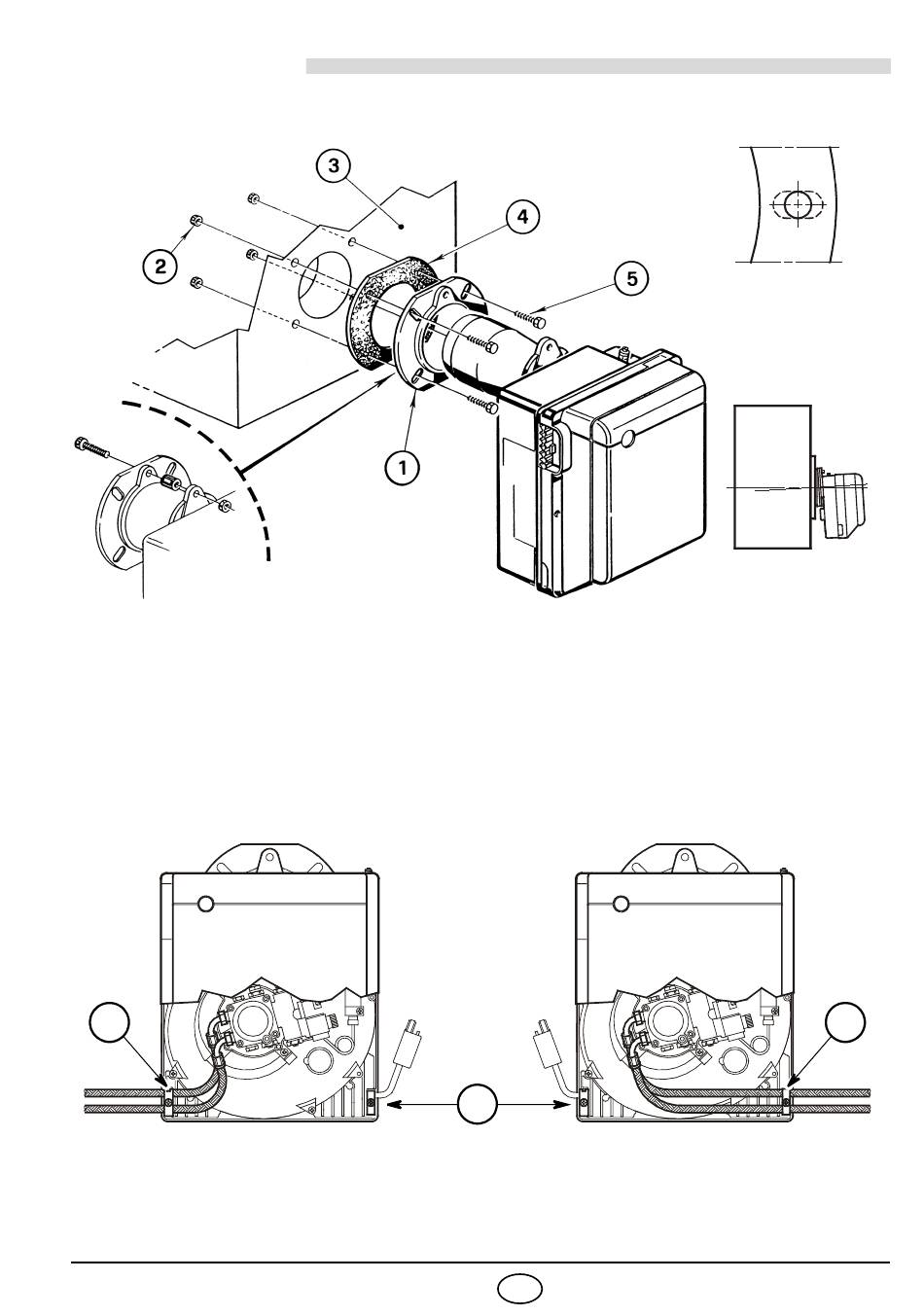

3.1 BOILER FIXING
D5012
Fig. 2
Fig. 4
S7071
D5025
Fig. 3
Fig. 5
– Put on the flange (1) the screw and two nuts, (see Fig. 3).
– Widen, if necessary, the insulating gasket holes (4), (see Fig. 4).
– Fix the flange (1) to the boiler door (3) using screws (5) and (if necessary) the nuts (2) interposing the
insulating gasket (4), (see Fig. 2).
– After installation ensure that burner is lightly inclined as in Fig. 5.
3.2 FUEL SUPPLY
Fig. 6
1
1
2
D5345
T h e b u r n e r i s d e s i g n e d t o a l l o w e n t r y o f t h e o i l s u p p l y p i p e s o n e i t h e r s i d e .
Depending on the oil supply pipes position (to the right or to the left hand side of the burner) the fixing plate
(1) and cable clamp (2) should be reversed, (see Fig. 6).
2311
3
GB
