Connections

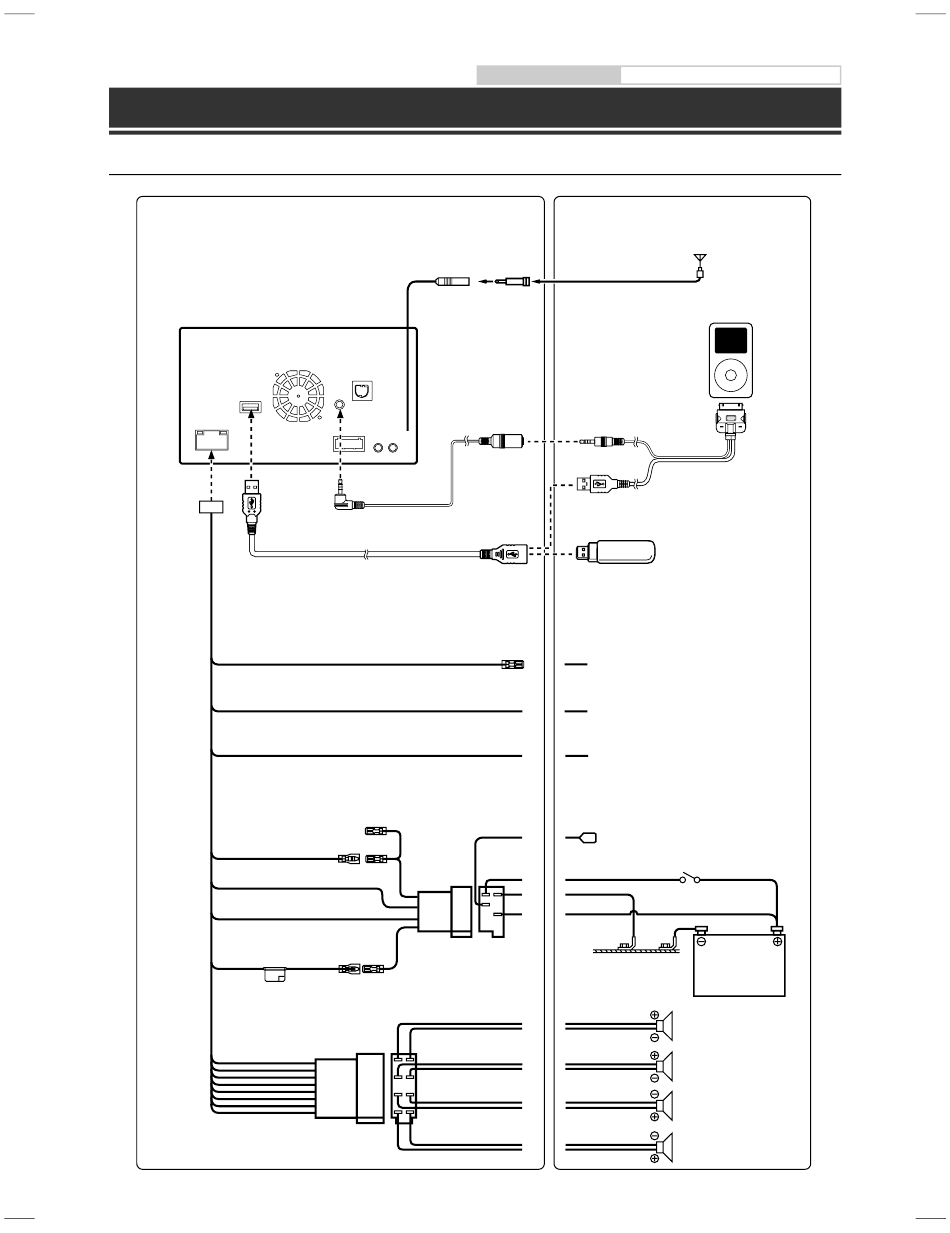

Connections 1/2
POWER ANT
12
-EN
All manuals and user guides at all-guides.com
iPod VIDEO AV extension cable
(Sold separately) (KCU-461iV)
USB extension cable
(Included)
REMOTE TURN-ON
(Blue/White)
REVERSE
(Orange/White)
PARKING BRAKE
(Yellow/Blue)
IGNITION
(Red)
GND
(Black)
(Blue)
BATTERY
(Yellow)
15A
Owner's manual
ISO Antenna Plug
Connection kit KCU-461iV
(Sold separately)
USB Memory
(Sold separately)
To amplifier or equalizer
To plus side of the back lamp signal lead of the car
To the parking brake signal lead
To power antenna
(Green)
(Green/Black)
(White)
(White/Black)
(Gray/Black)
(Gray)
(Violet/Black)
(Violet)
Connections
Antenna
iPod/iPhone
(Sold separately)
Ignition key
Battery
Rear left
Front left
Speakers
Front right
Rear right
