14
ENGLISH

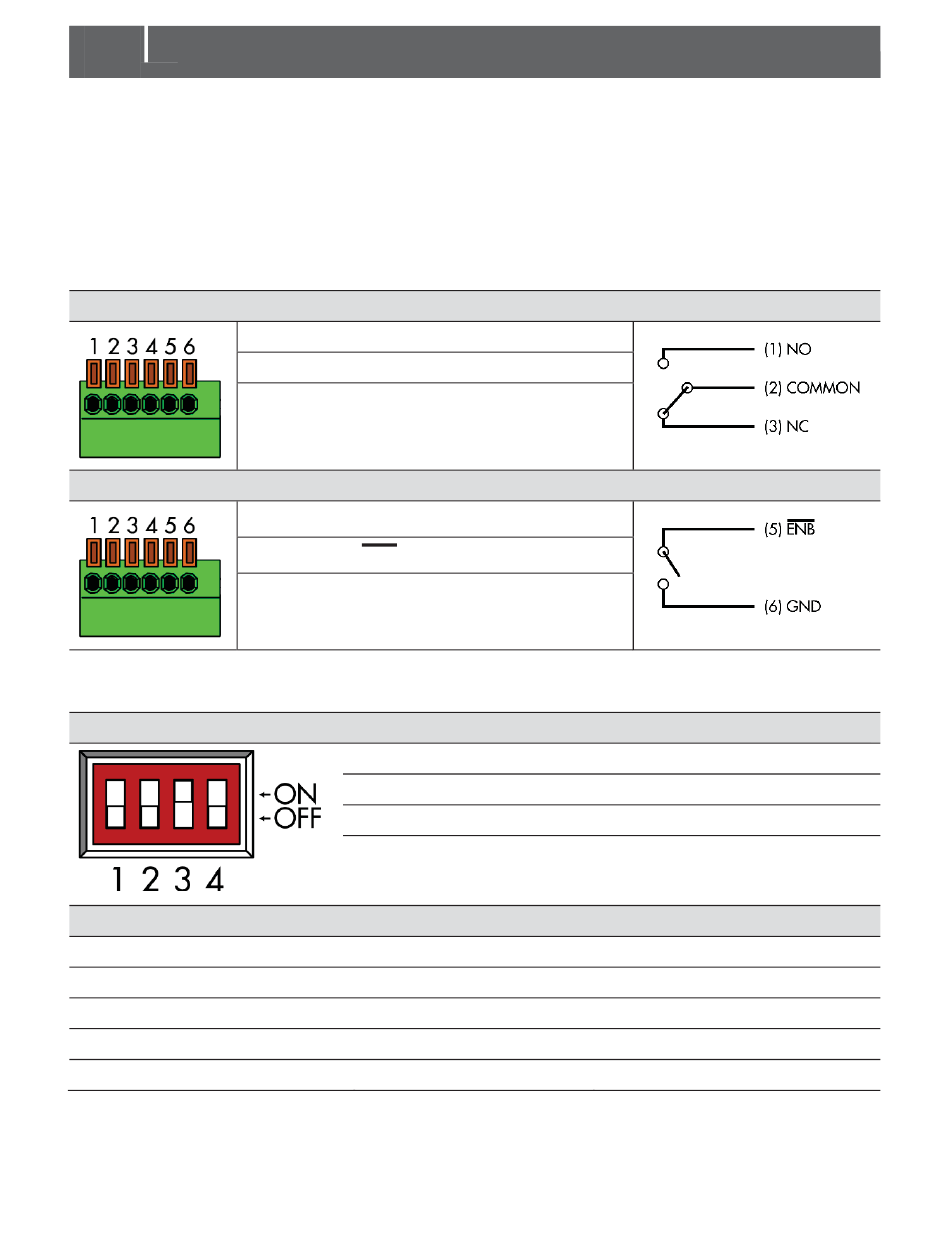

Remote control terminal (optional)
The remote control terminal offers two functions:
•
Alarm contact (dry contact)
The alarm contact switches when a fault occurs.
•
Remote switch
Install a switch for remote operation. Make sure the main switch is at "REMOTE" position.
Alarm contact (maximum load 30 V / 1 A)
1
2
3
Remote control
4
5
6
7. Configuration
DIP switch functions
Output voltage selection
Output voltage
200 V
220 V
230 V
240 V
All manuals and user guides at all-guides.com
Normally Open (NO)
Common
Normally Closed (NC)
Enable
(ENB)
Enable
(ENB)
Ground (GND)
(same polarity with negative battery input)
1
Output voltage selection
2
Output voltage selection
3
Output frequency selection
4
Power saving mode ON/OFF
DIP switch 1
OFF
ON
OFF
ON
DIP switch 2
OFF
OFF
ON
ON
