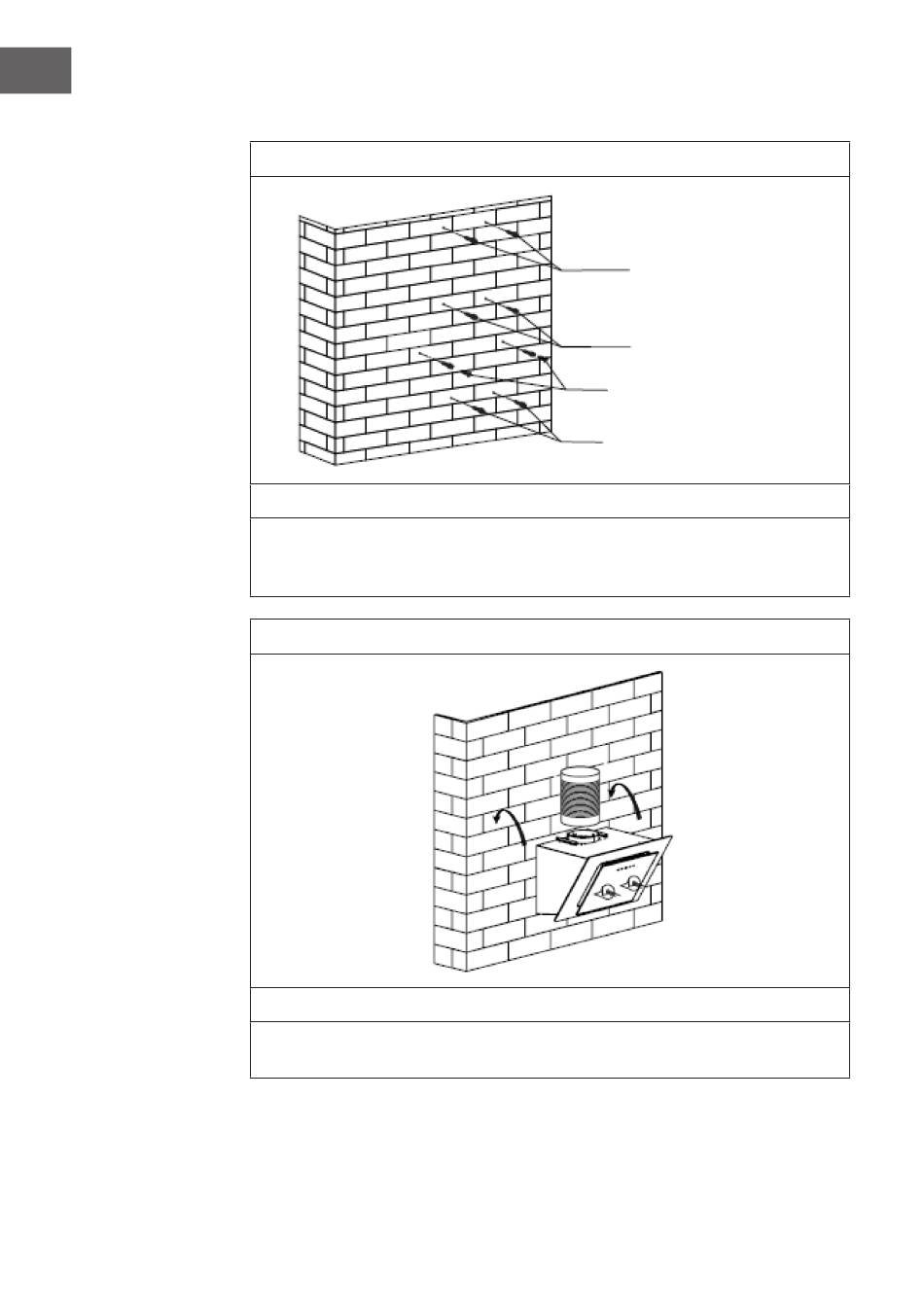

Mounting on the wall
Drill 8 holes in the wall at the fixing point using an 8 mm diameter drill bit.
Insert dowels in the holes you have drilled for the cooker hood body. Fix 2
ST4*40 mm support screws in the middle and leave them protruding 2 mm from the
wall.
Place the cooker hood on the screws.
Insert 2 ST4*30 mm screws into the safety holes from the inside and tighten the
screws completely to ensure that the cooker hood is securely fixed.
1
Holes for the inner
chimney
Holes for the outer
chimney
Holes for the cooker hood body
Safety holes
2
