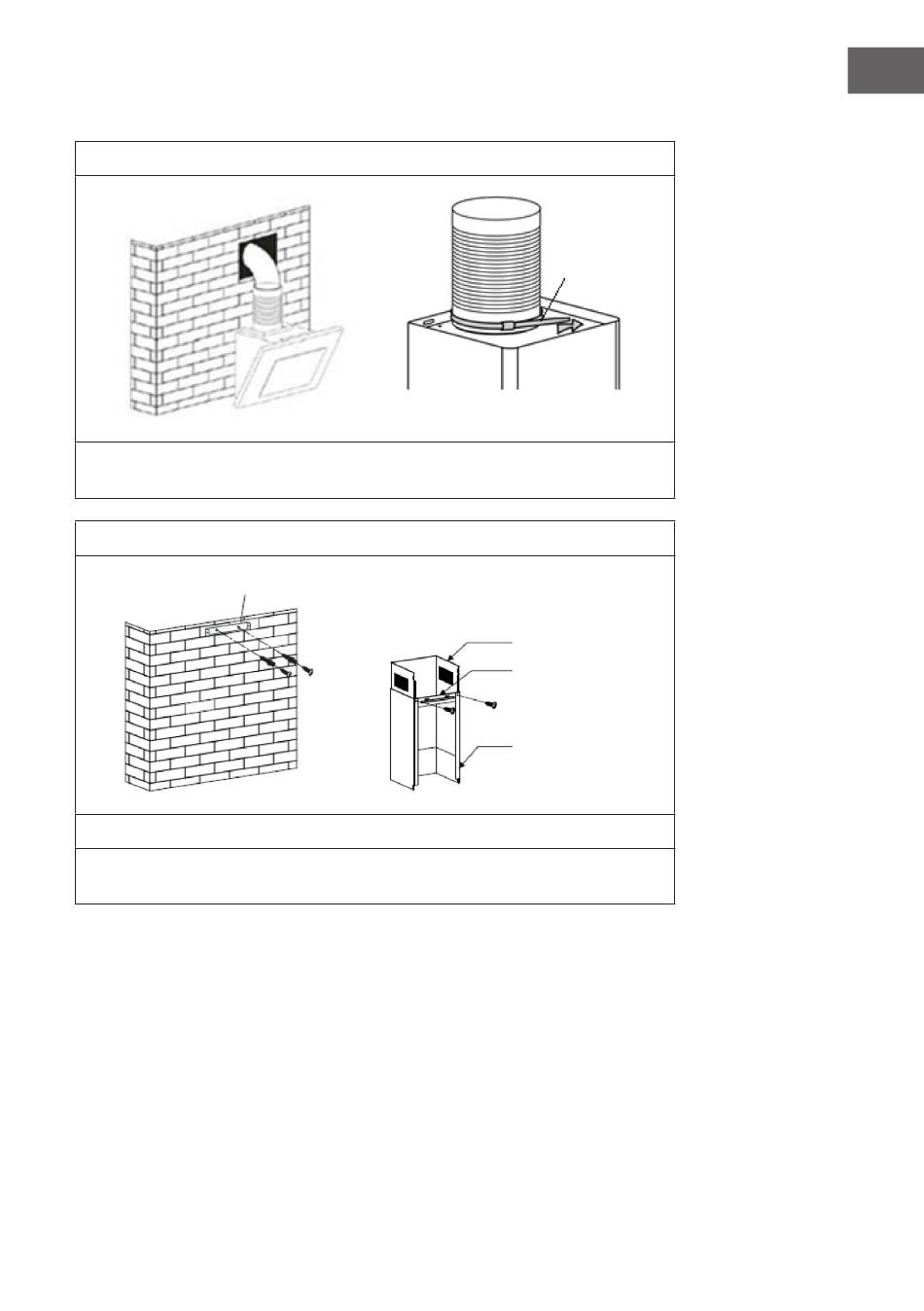

Fasten the exhaust hose to the air outlet with a cable tie. Pull the exhaust hose
upwards until it protrudes through the hole in the wall.
Bracket for the inner chimney
Fasten the bracket for the inner chimney to the wall with ST4*40 screws.
Then fix the bracket for the outer chimney to the outer chimney with 2 ST4*8 mm
screws. Make sure that the inner chimney can be moved freely.
3
4
Inner chimney
Bracket for the inner
chimney
Bracket for the outer
chimney
