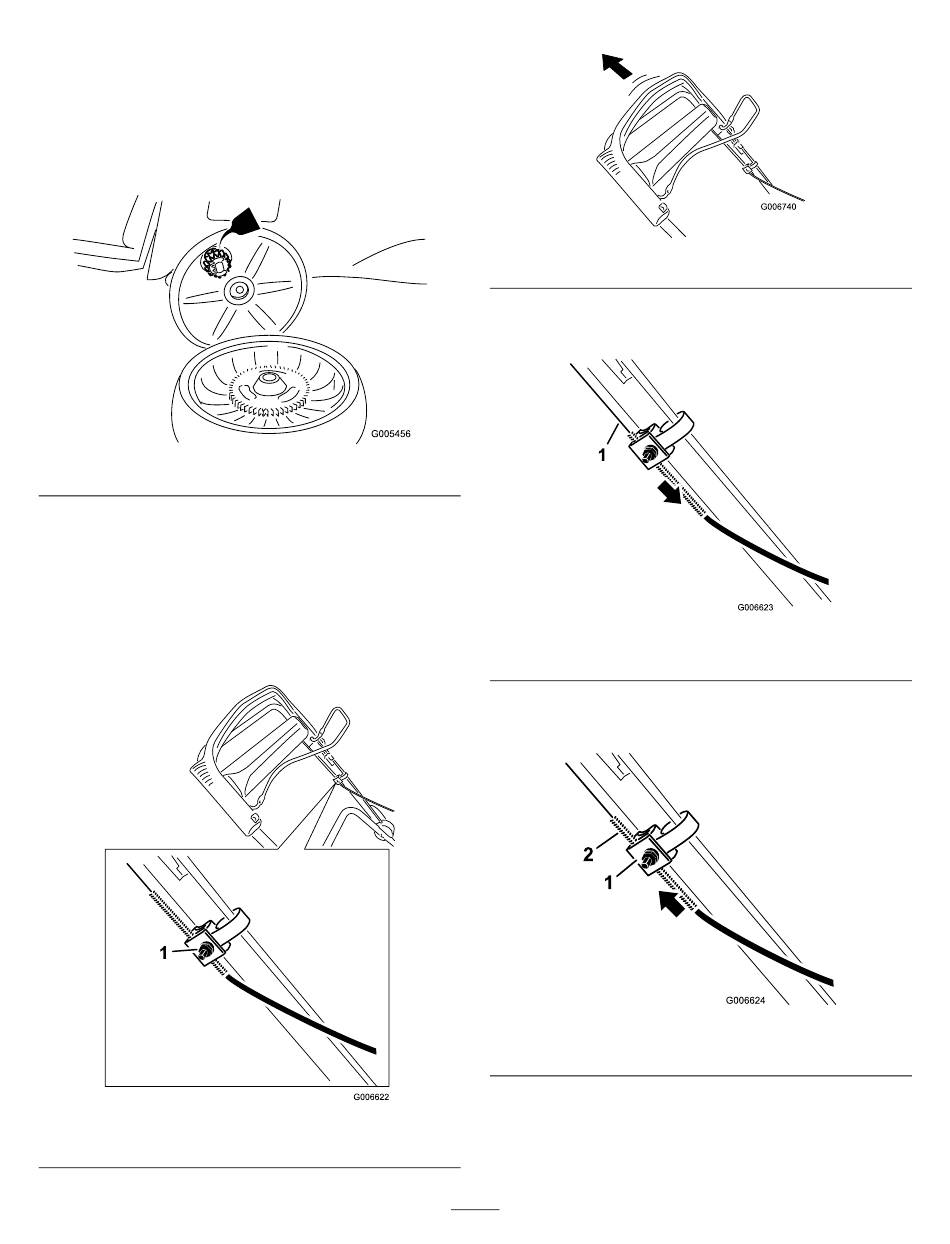

Lubricating the Wheel Gears
Service Interval: Yearly—Lubricate the wheel gears.
1. Remove the wheel bolts on the rear wheels and
remove the rear wheels.
2. Apply a lubricating oil to the gear as shown in
Figure 25.
Figure 25
3. Install the rear wheels.
Adjusting the Self-propel Drive
If your mower does not self-propel properly, adjust the
self-propel drive cable.
1. Loosen the nut on the cable mount (Figure 26).
Figure 26
1. Nut on cable mount
All manuals and user guides at all-guides.com
2. Pull the upper handle back fully rearward (Figure 27).
3. Pull the cable jacket downward until you remove the
4. Push the cable jacket upward 3/16 inch (5 mm)
13
Figure 27
slack in the exposed cable (Figure 28).
Figure 28
1. Exposed cable
(Figure 29).
Figure 29
1. Cable mount
Note: You can place a ruler against the upper side
of the cable mount and measure how far the upper
end of the cable jacket moves.
2. Cable jacket
